Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.
Product Specifications

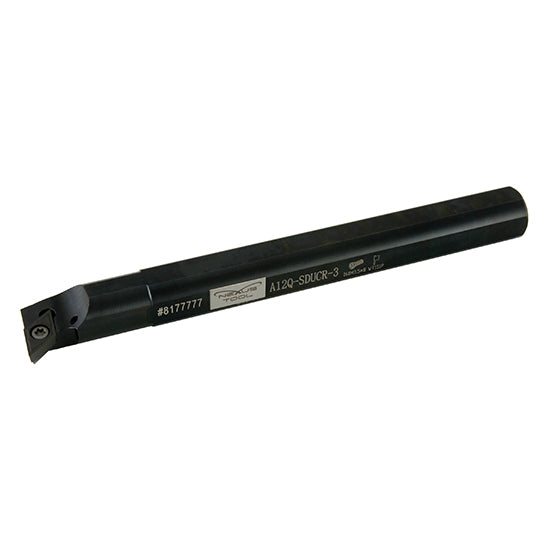

| DESIGNATION | A12Q-SDUCR-3 (3/4"-S-BB-CT-RH) |
| UNSPSC Code | 23242106 |
| GRADE | N/A |
| CHIP BREAKER | N/A |
| IC | N/A |
| THICKNESS | N/A |
| RADIUS | N/A |
| CHAMFER WIDTH | N/A |
| HEIGHT | 0.75 |
| LENGTH | 7 |
| HOLDER ANGLE | 93 |
| MIN. BORE DIA. | 0.984 |
| CUTTING DIAMETER | N/A |
| ARBOR or SHANK DIAMETER | N/A |
| SHANK LENGTH | N/A |
| ASPECT RATIO | N/A |
| MATERIAL | Steel |
| COATING | N/A |
| HOLDING SYSTEM | Screw |
| GAUGE INSERT | DCMT 32.52 |
| GAUGE INSERT (external) | N/A |
| GAUGE INSERT (internal) | N/A |
| CHIP BREAKER FUNCTION | N/A |
| IPR (min) | N/A |
| IPR (max) | N/A |
| DOC (min) | N/A |
| DOC (max) | N/A |
| IPT (min) | N/A |
| IPT (max) | N/A |
| CUTTER or SHANK | N/A |
| SHANK STYLE | N/A |
| MAX Ap (DOC) | N/A |
| CUTTER APPROACH ANGLE | N/A |
| COOLANT THRU | Yes |
| NUMBER OF TEETH | N/A |
| INTERNAL or EXTERNAL | N/A |
| WEIGHT PER PIECE | 0.8 |
| QTY PER BOX | N/A |
| CLAMP | N/A |
| CLAMP SCREW | N/A |
| SHIM | |
| SHIM SCREW | N/A |
| WRENCH | 9355555 |
| SHIM PIN | |
| SCREW | 6811259 |
| LEVER |
