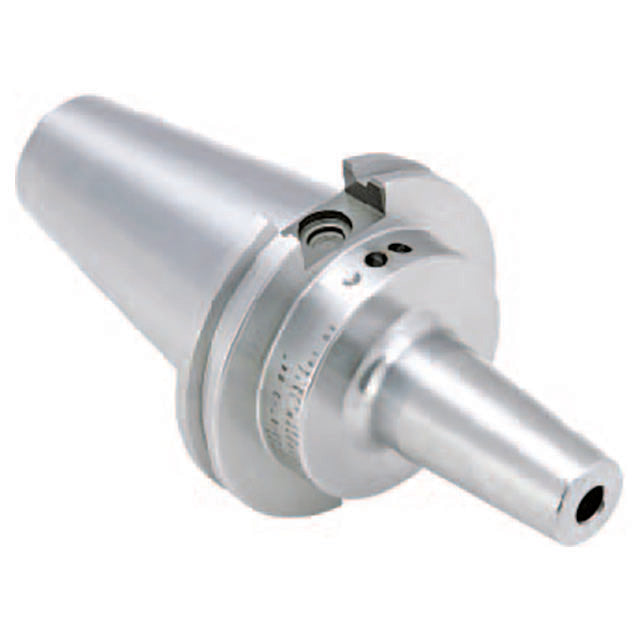

Techniks 44.651.12.100 | 32mm Diameter x 12mm Size x 201.6mm OAL SCAT50 Shrink-Fit Tool Holder

Techniks 44.651.12.100 | 32mm Diameter x 12mm Size x 201.6mm OAL SCAT50 Shrink-Fit Tool Holder

SKU: 55040832

Precio habitual $367.65 USD
Precio habitual $367.65 USD Precio de oferta $367.65 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 3261 Grams

En existencias

Free Shipping on Orders Over $75

Ver todos los detalles

Features:

  • Balanced 25,000 RPM at G2.5
  • 3 angled CoolBLAST ports direct coolant onto tool
  • Maximum T.I.R. only 0.0001"

Product Specifications
Taper SCAT50
Taper Diameter (mm) 69.85mm
Body Diameter (mm) 32mm
Overall Diameter (mm) 98.43mm
Bore Size (mm) 12mm
Projection Length (mm) 100mm
Nose Diameter (mm) 24mm
Overall Length (mm) 201.6mm
Nose Length (mm) 47mm
