Techniks

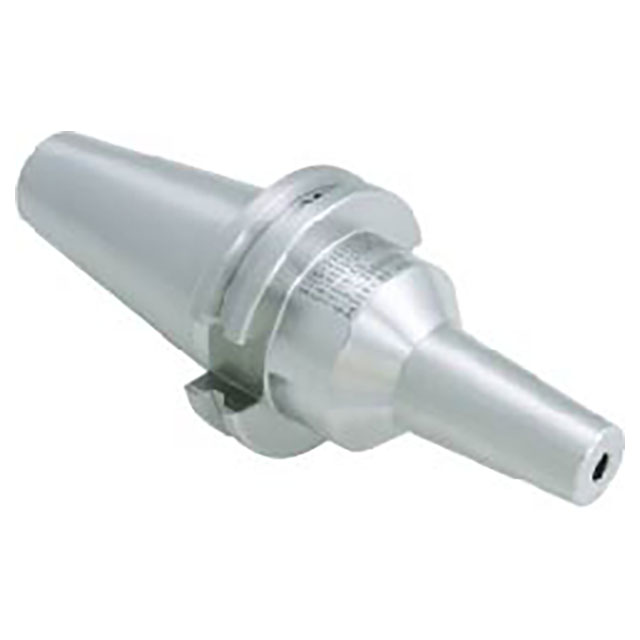

Techniks 29230 | CAT40 Taper x 16.00mm Size x 34.00mm Diameter x 95.30mm Projection Length x 163.55mm OAL Steel Shrink-Fit Tool Holder

Techniks 29230 | CAT40 Taper x 16.00mm Size x 34.00mm Diameter x 95.30mm Projection Length x 163.55mm OAL Steel Shrink-Fit Tool Holder

SKU: 55031025

Precio habitual $285.95 USD
Precio habitual $301.00 USD Precio de oferta $285.95 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 1633 Grams

Ver todos los detalles

Features:

  • Balanced 25,000 RPM at G2.5
  • 3 angled CoolBLAST ports direct coolant onto tool
  • Maximum T.I.R. only 0.0001"

Product Specifications
Taper CAT40
Taper Diameter (mm) 44.45mm
Body Diameter (mm) 34mm
Overall Diameter (mm) 63.5mm
Bore Size (mm) 16mm
Projection Length (mm) 95.3mm
Nose Diameter (mm) 27mm
Overall Length (mm) 163.55mm
Nose Length (mm) 50mm
