Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

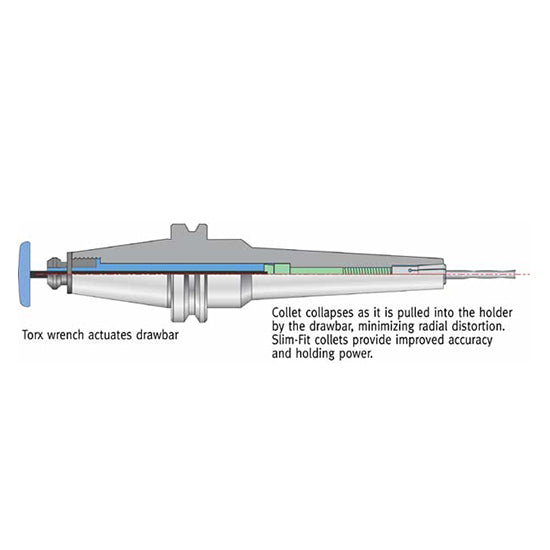

Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.Product Specifications
| UNSPSC Code | 27112809 |
| Collet Series | SlimFIT 6 |
| Body Dia-Workpiece Side (in) | 0.551 |
| Body Dia-Workpiece Side (mm) | 14 |
| Gage Length (in) | 3.5 |
| Gage Length (mm) | 88.9 |
| Gage Length-Face Contact (in) | 3.37 |
| Gage Length-Face Contact (mm) | 85.5 |
| Lock Nut Diameter (in) | N/A |
| Lock Nut Diameter (mm) | N/A |
| Overall Length (in) | 7.5 |
| Overall Length (mm) | 190.5 |
| Material | 8620 Steel |
| Taper | CAT50 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Type | V-Flange SlimFIT Holder |
| Style | Single Ended |
| Capacity Range (in) | 0.094" - 0.25" |
| Capacity Range (mm) | 2.39 - 6.35mm |
| Balanced to | 25,000 RPM at G2.5 |
