Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

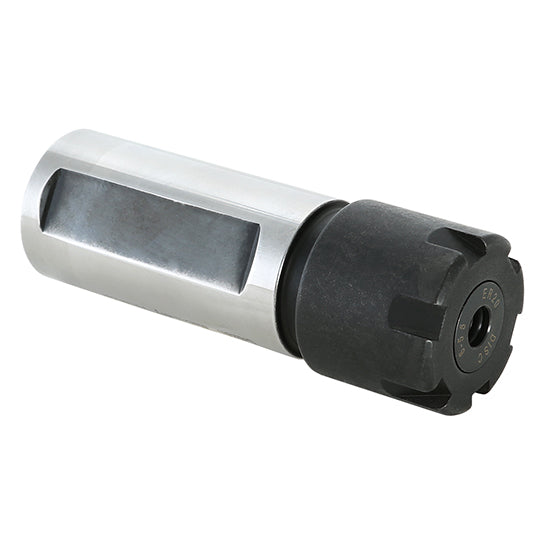

Techniks Collet Chuck Extensions are made with precision to achieve T.I.R. of 0.0001" or less. The Coolant-thru feature is suitable for coolant up to 1,500 PSI.Product Specifications
| UNSPSC Code | 27112807 |
| Collet Series | ER32 |
| Body Dia-Workpiece Side (in) | 1.969 |
| Body Dia-Workpiece Side (mm) | 50 |
| Gage Length (in) | 2.16 |
| Gage Length (mm) | 54.864 |
| Gage Length-Face Contact (in) | N/A |
| Gage Length-Face Contact (mm) | N/A |
| Lock Nut Diameter (in) | 1.97 |
| Lock Nut Diameter (mm) | 50 |
| Overall Length (in) | N/A |
| Overall Length (mm) | N/A |
| Material | 8620 Steel |
| Taper | 1.25" Straight Shank |
| Overall Diameter (in) | 1.25 |
| Overall Diameter (mm) | 31.75 |
| Unit of Tool | Metric or Inch |
| Type | SS Collet Chuck Extension |
| Style | Single Ended |
| Capacity Range (in) | 0.043" - 0.83" |
| Capacity Range (mm) | 1.1 - 21mm |
| Balanced to | N/A |
