Features:

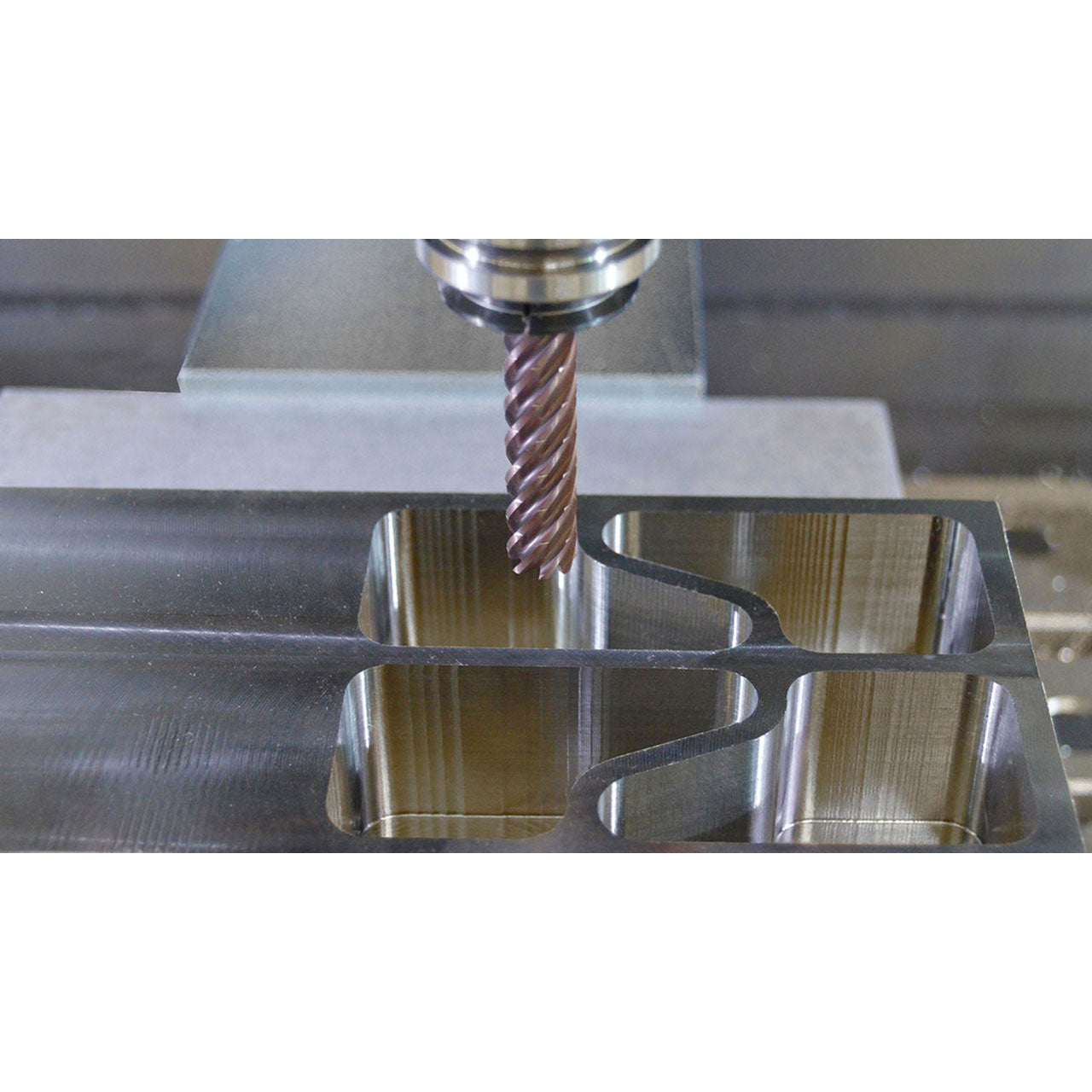

- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection
Product Specifications
| Manufacturer Part Number | 74845 |
| Cutting Diameter (Decimal Inch) | 0.787" |
| Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 3.150" |
| Length of Cut (mm) | 80.00mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 7 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | TM (Ti-NAMITE-M) |

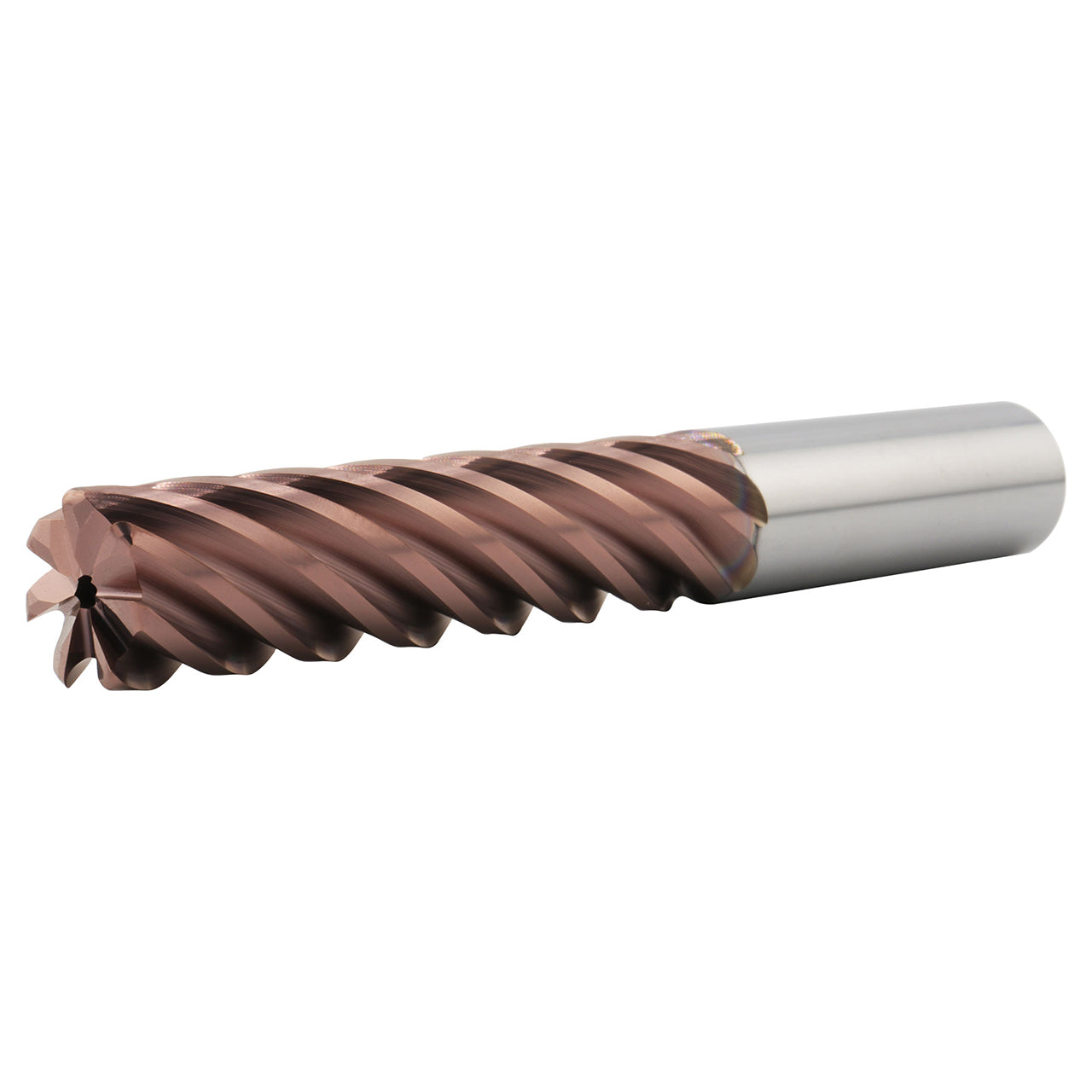

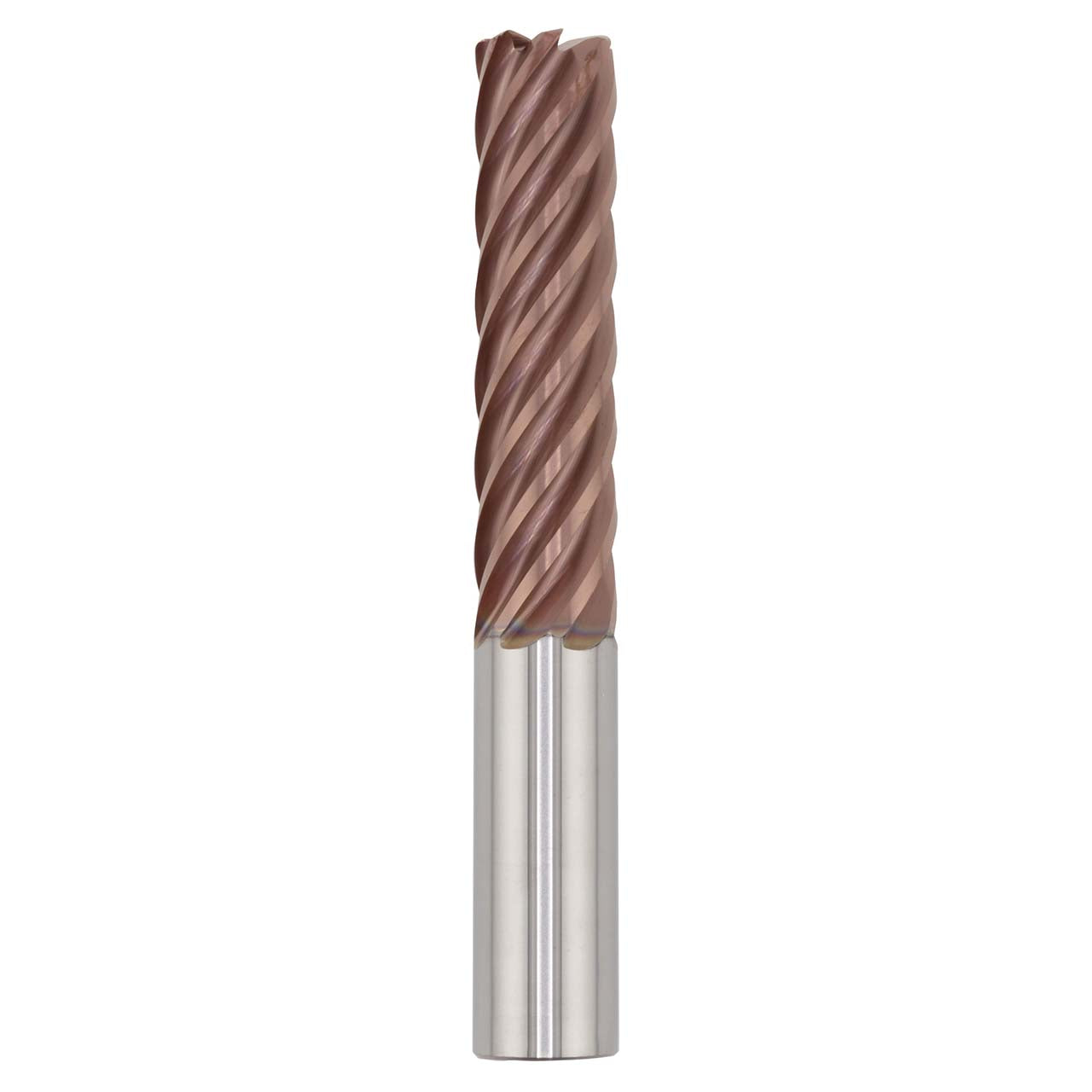

| Product Type | Corner Radius End Mill |
