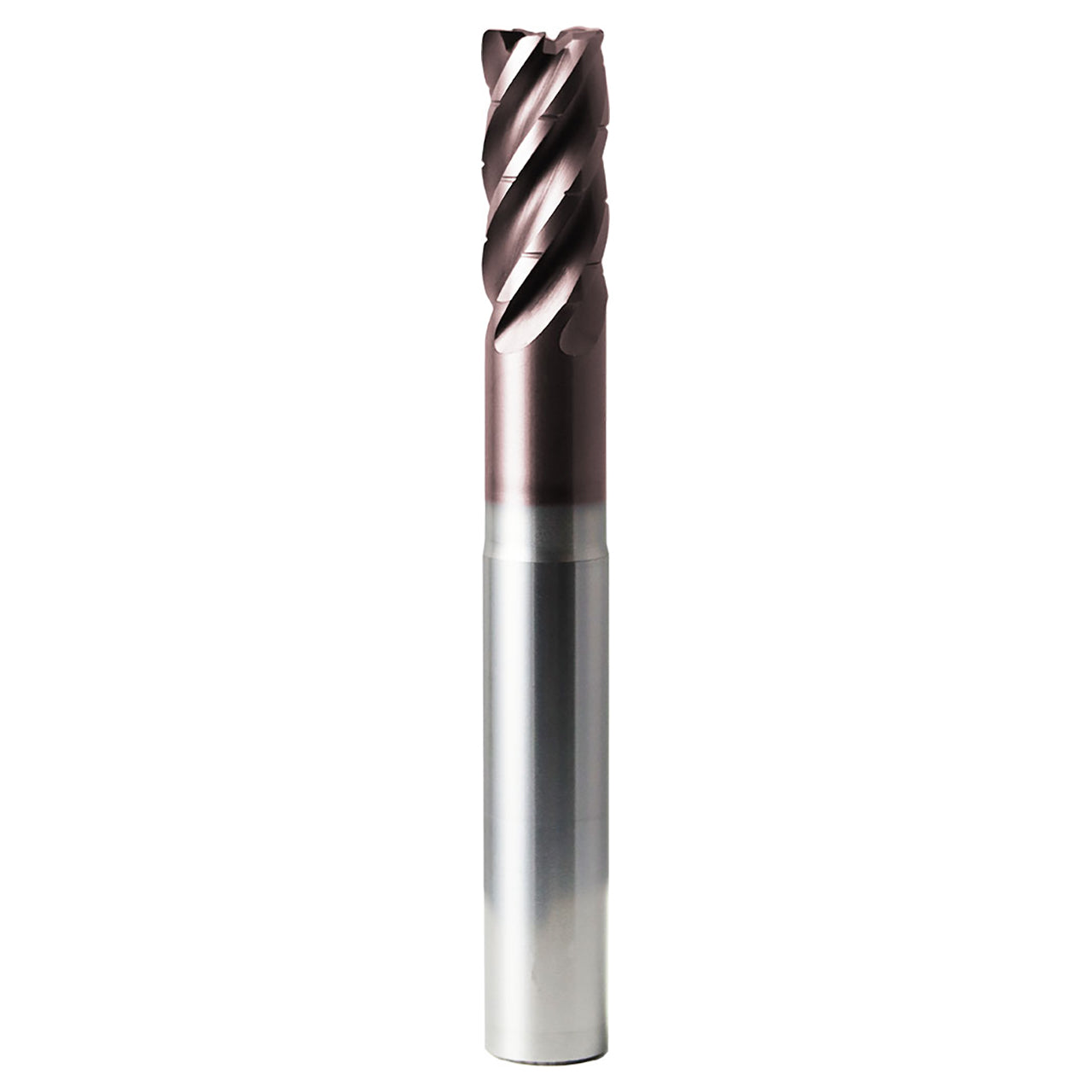

Features:
- Positive Radial Rake
- Variable Flute Pattern
- Open Center Design
- Long Reach
Product Specifications
| Manufacturer Part Number | 37809 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Cutting Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.625" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Reach (Inch) | 1-1/4" |
| Reach (Decimal Inch) | 1.250" |
| Reach (mm) | 31.75mm |
| Neck Diameter (Decimal Inch) | 0.297" |
| Neck Diameter (mm) | 7.54mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | TM (Ti-NAMITE-M) |
| Product Type | Chip Breaker Square End Mill |
