Product Specifications
| Manufacturer Part Number | 75906255 |
| Cutting Diameter (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Protruding Length (mm) | 150.00mm |
| Shank Length (mm) | 145.00mm |
| Overall Length (mm) | 200.00mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Orthogonal Angle (Degree) | -10 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 30 Degree |
| Maximum Rotational Speed (rpm) | 22800 rpm |
| Shank Type | Cylindrical |

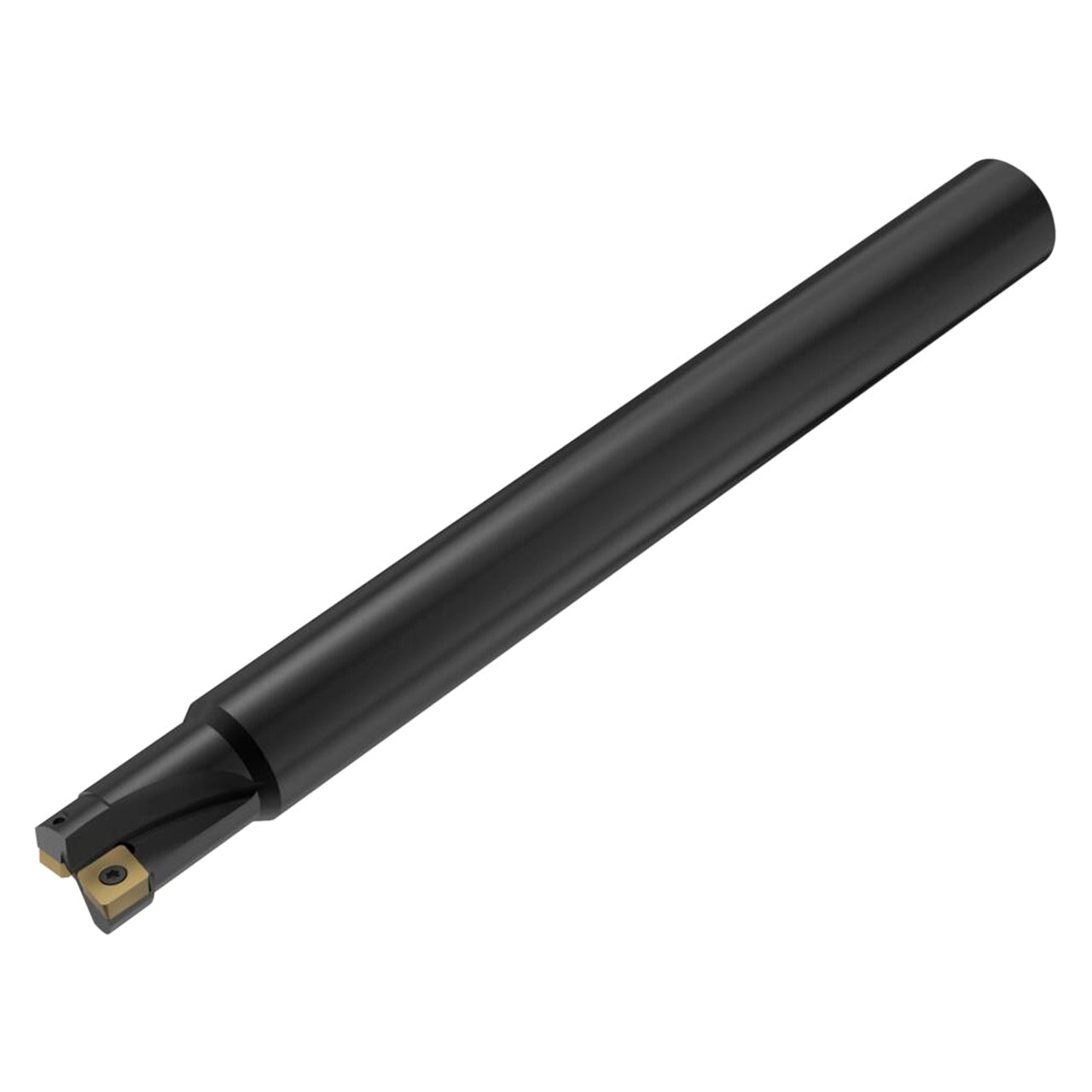

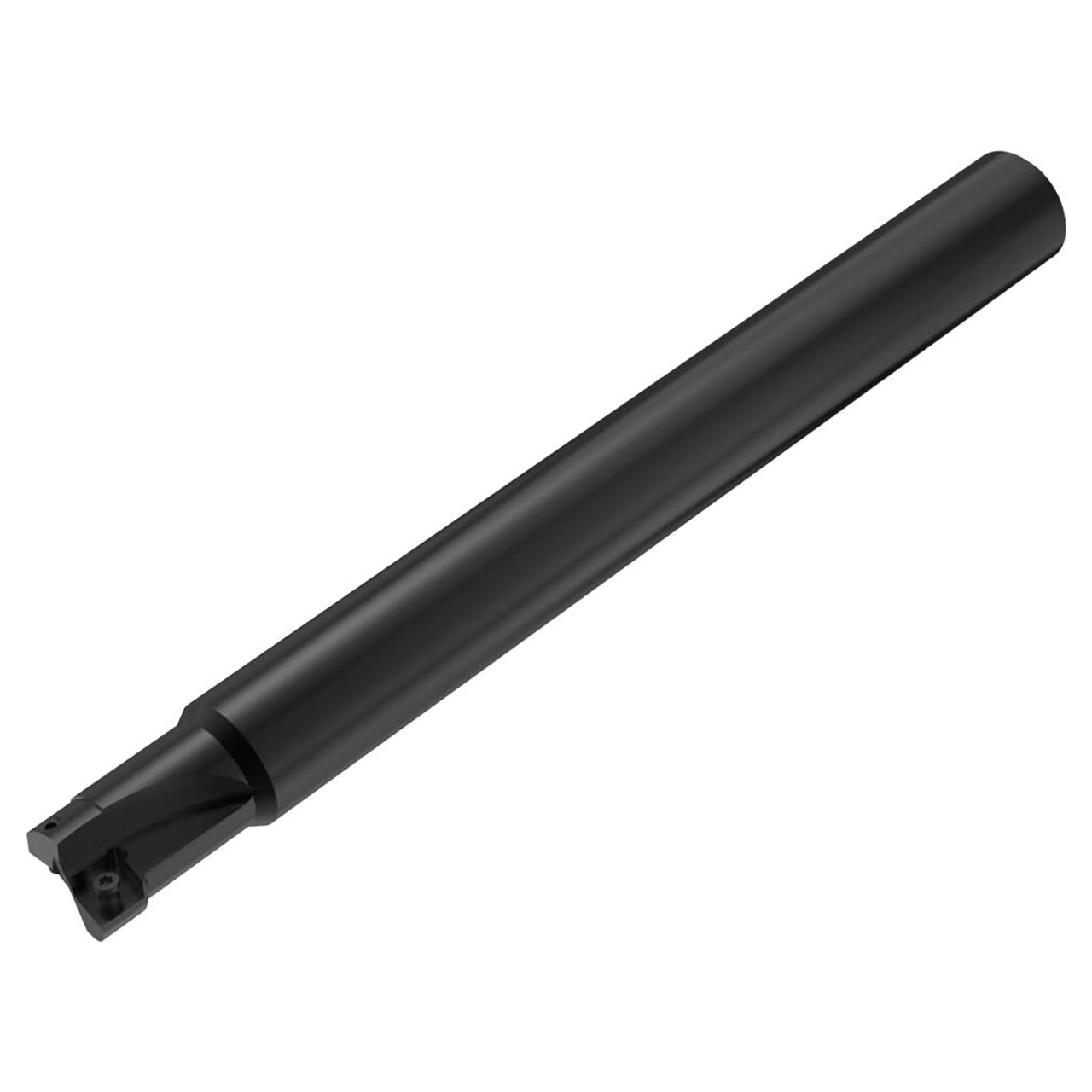

| Product Type | Indexable Square-Shoulder End Mill |
