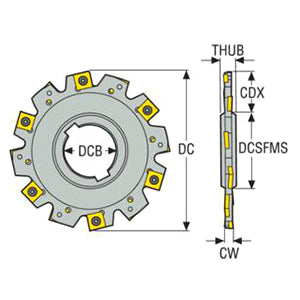

Product Specifications
| Manufacturer Part Number | 75090137 |
| Cutting Diameter (mm) | 160.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 65.00mm |
| Functional Length (mm) | 8.00mm |
| Keyway Width (mm) | 10.00mm |
| Cutting Width (mm) | 4.00mm |
| Maximum Depth of Cut (mm) | 4.00mm |
| Maximum Cutting Depth (mm) | 42.60mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Cutting Direction | Neutral |
| Maximum Rotational Speed (rpm) | 10700 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 335.19-1102 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |
| Coating | AlTiN |

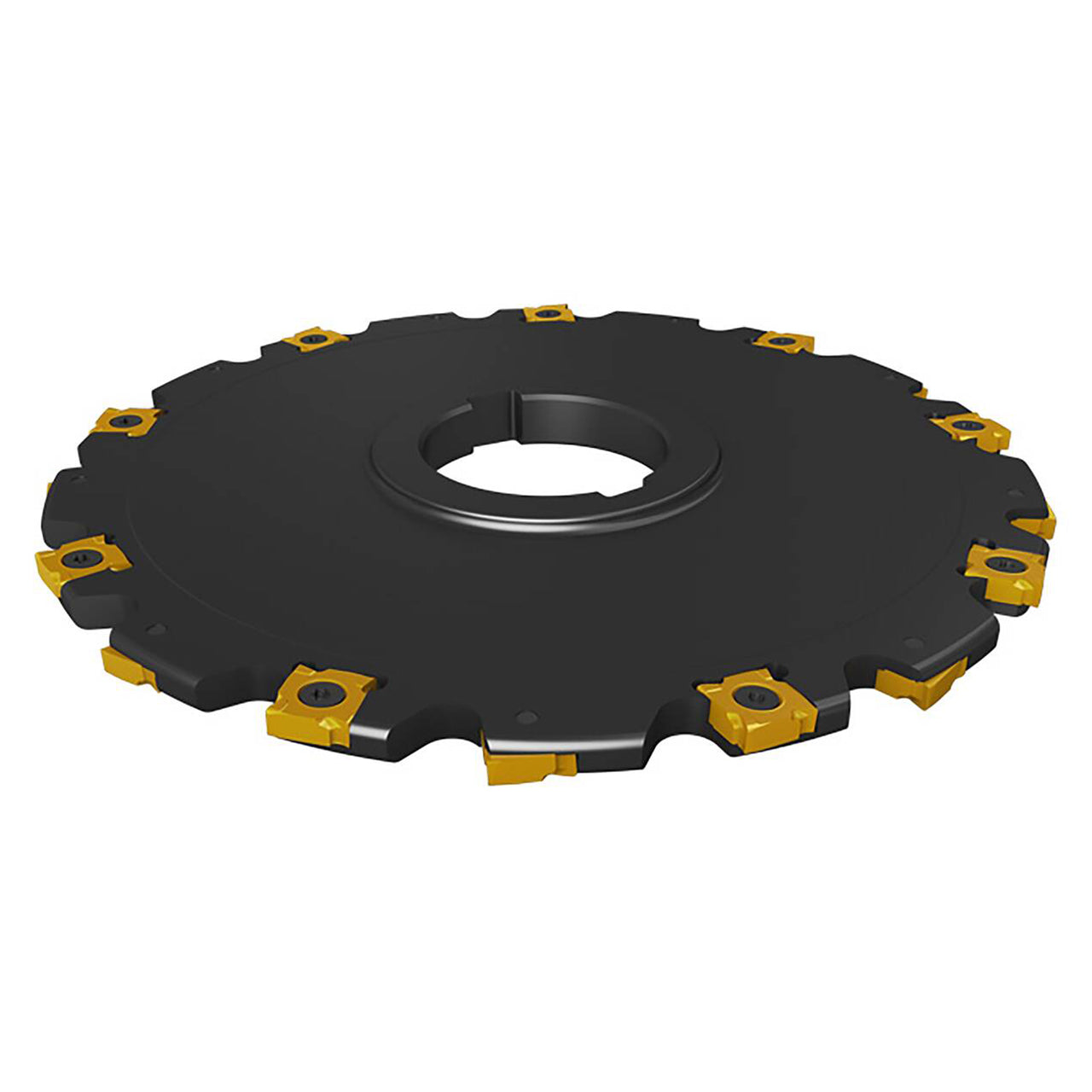

| Product Type | Indexable Slotting Cutter |
