Product Specifications
| Manufacturer Part Number | 75079685 |
| Functional Length (mm) | 125.00mm |
| Head Length (mm) | 25.00mm |
| Shank Width (mm) | 20.00mm |
| Height of Tool Holder Shank (mm) | 20.00mm |
| Functional Width (mm) | 10.00mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 63 Degree |
| Tool Cutting Edge Angle Code | N |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 152 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 63 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | D |
| Shank Type | Square shank |

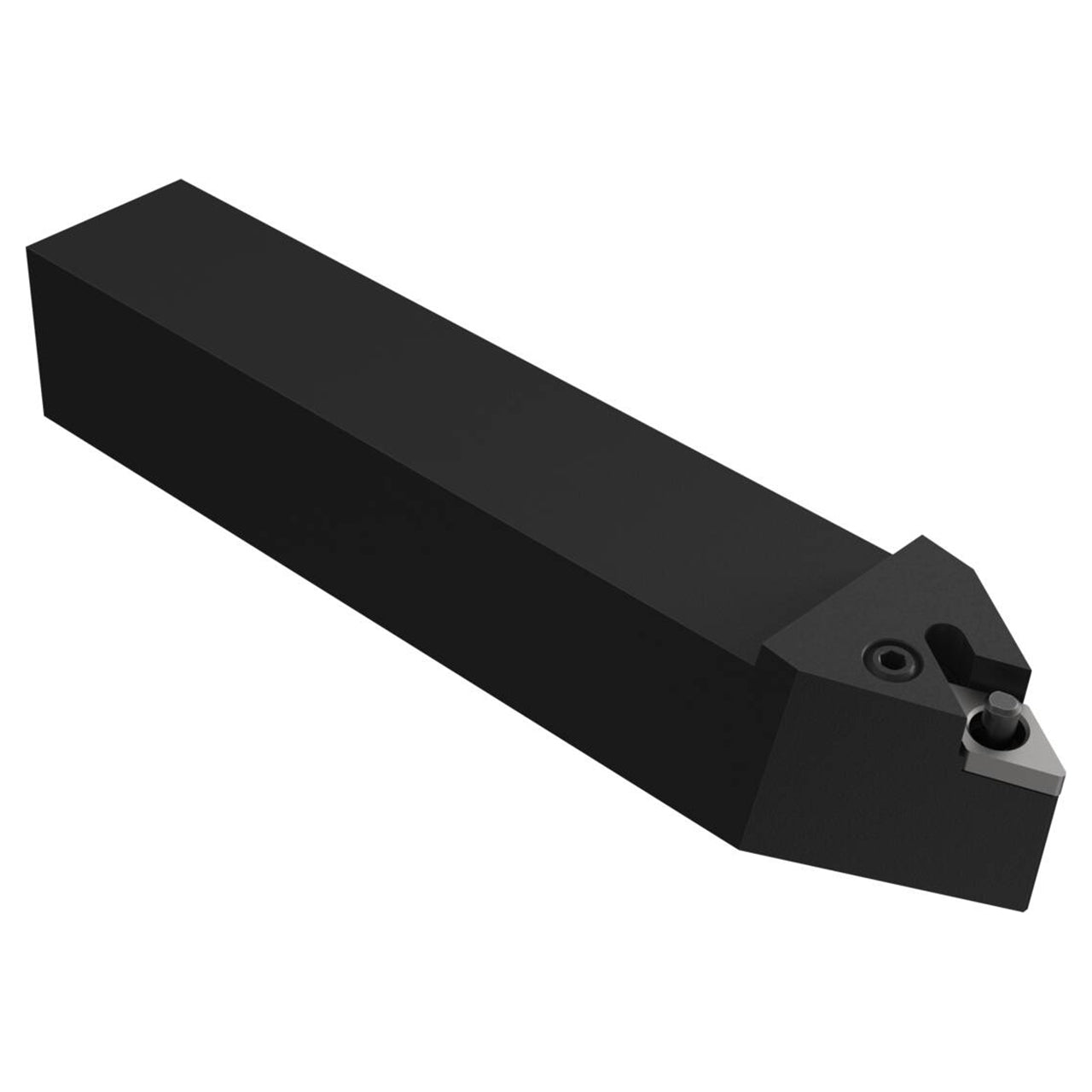

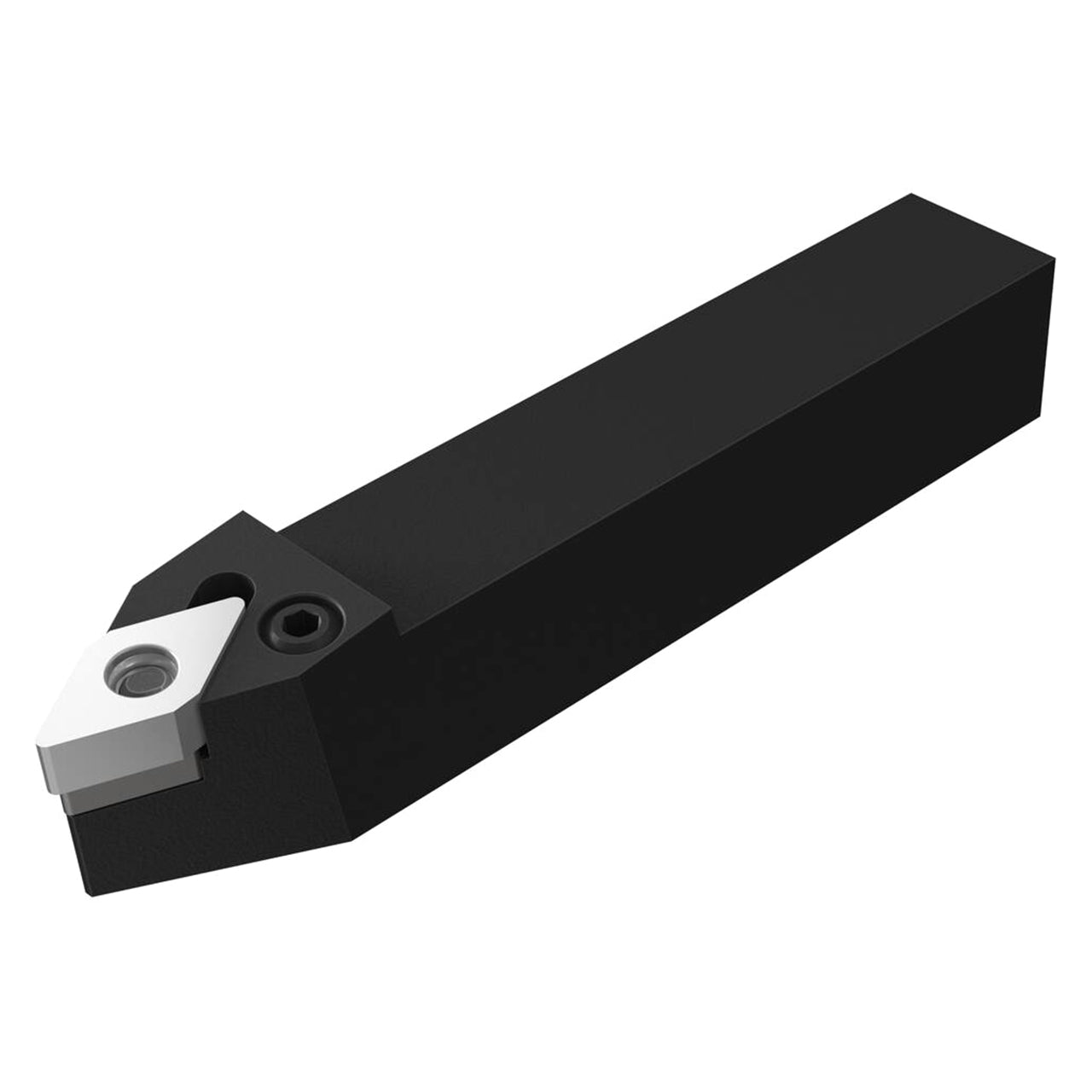

| Product Type | Indexable Turning Toolholder |
