Product Specifications
| Manufacturer Part Number | 75079504 |
| Functional Length (mm) | 100.00mm |
| Head Length (mm) | 21.00mm |
| Shank Width (mm) | 16.00mm |
| Height of Tool Holder Shank (mm) | 16.00mm |
| Functional Width (mm) | 20.00mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | W |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | W |
| Shank Type | Square shank |

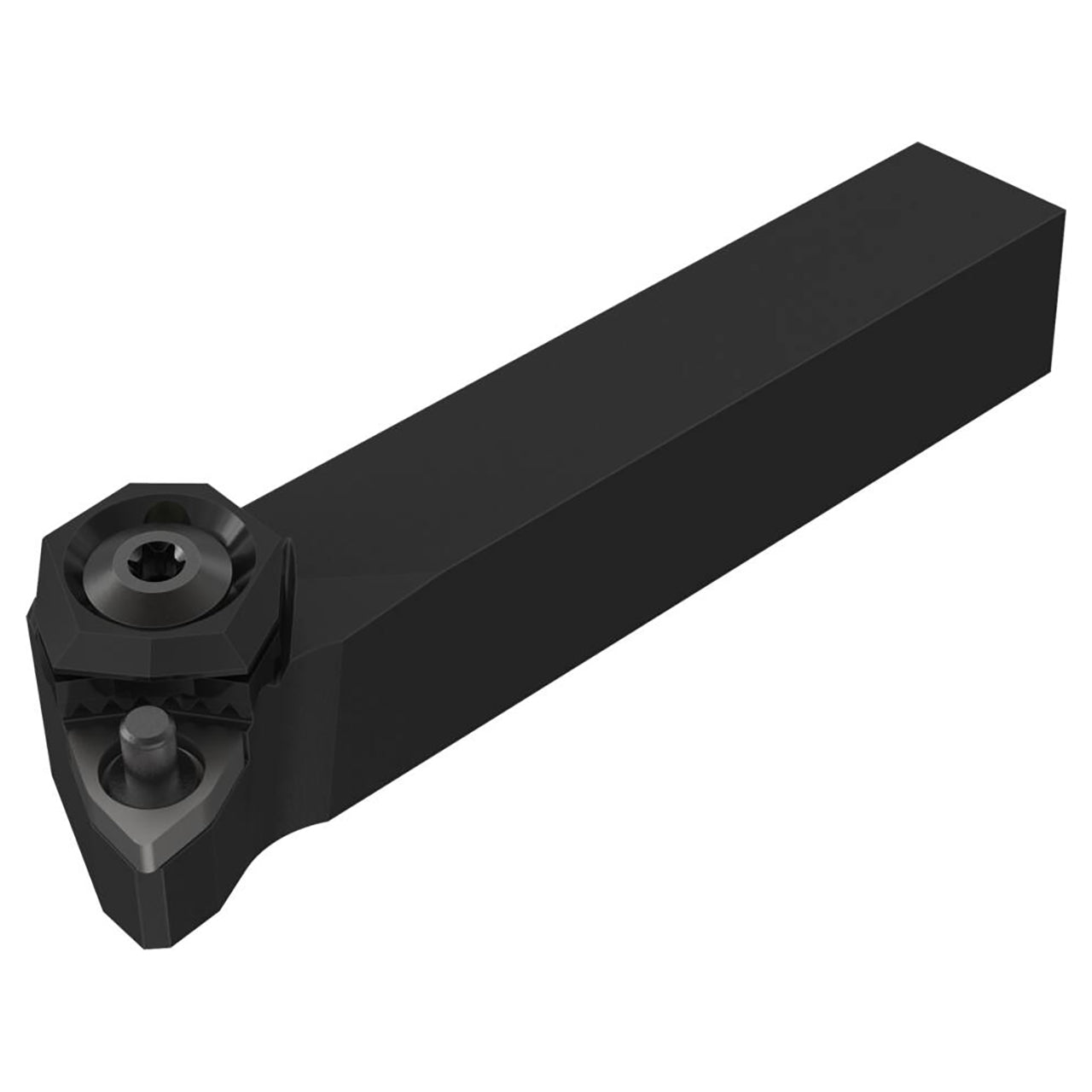

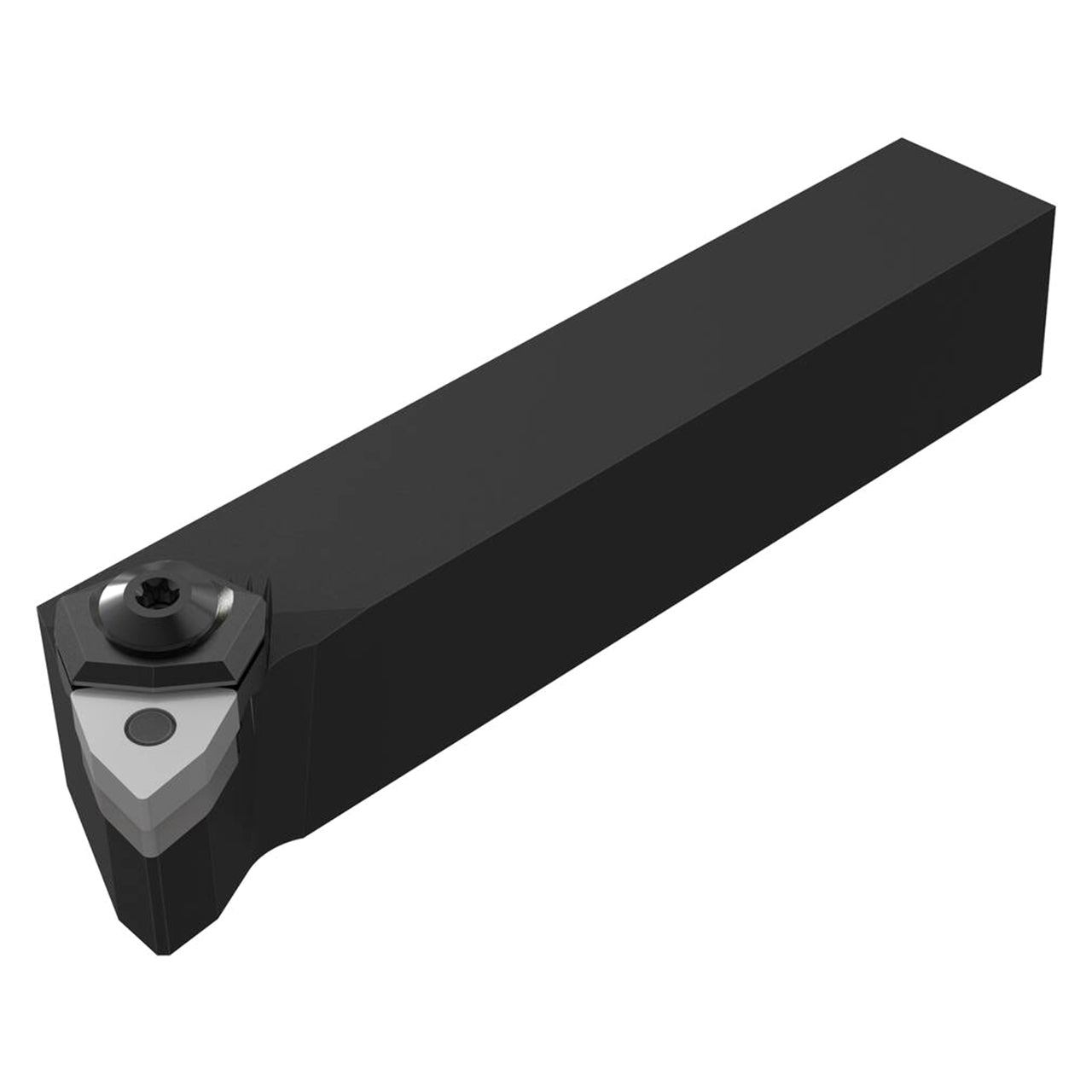

| Product Type | Indexable Turning Toolholder |
