Product Specifications
| Manufacturer Part Number | 75077274 |
| Cutting Diameter (mm) | 250.00mm |
| Contact Surface Diameter Machine Side (mm) | 220.00mm |
| Maximum Cutting Diameter (mm) | 250.97mm |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 1.00mm |
| Cutting Pitch Density | Super close |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 5 Degree |
| Axial Rake Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 88 Degree |
| Maximum Rotational Speed (rpm) | 3000 rpm |
| Insert Shape Code | S |
| Shank Type | CAP |

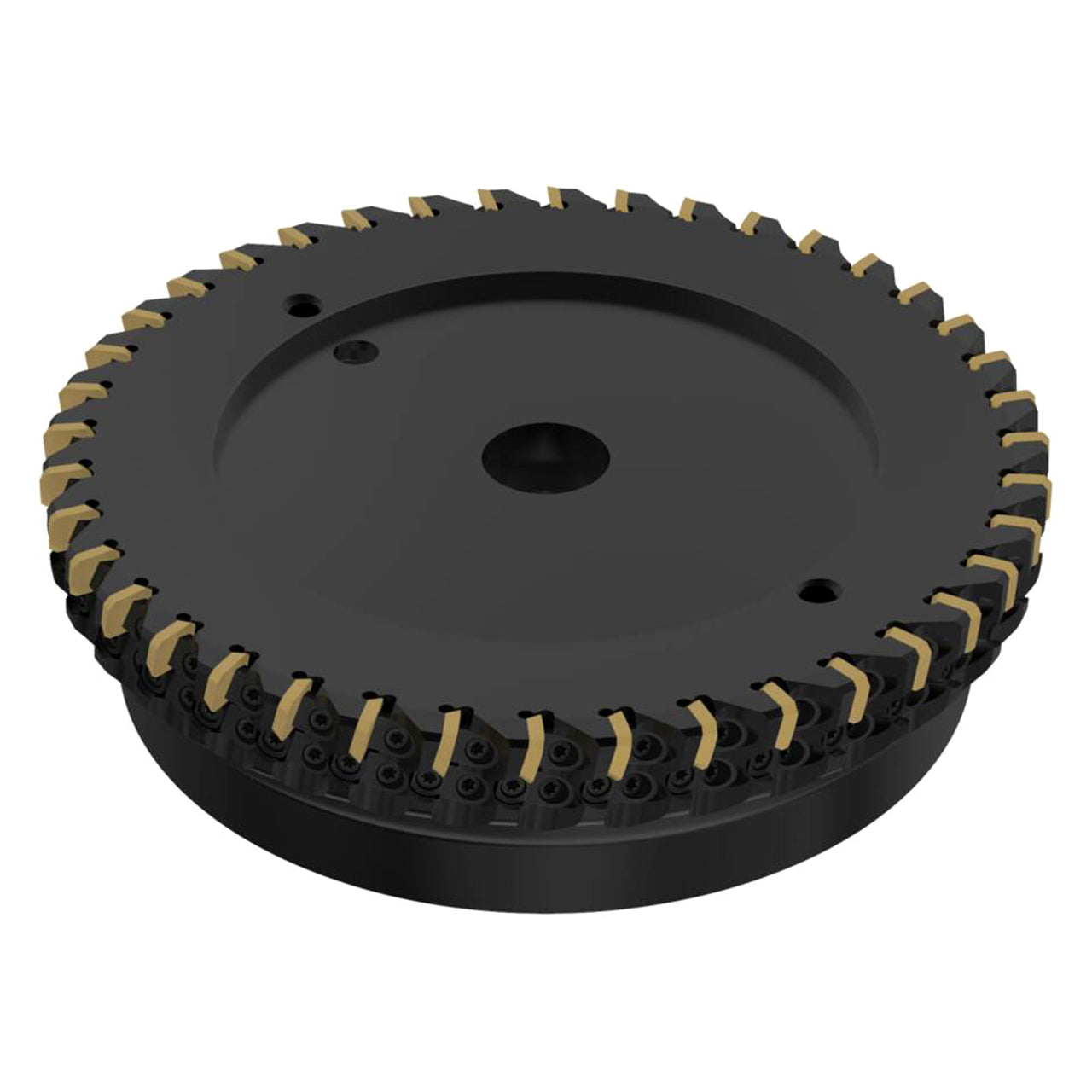

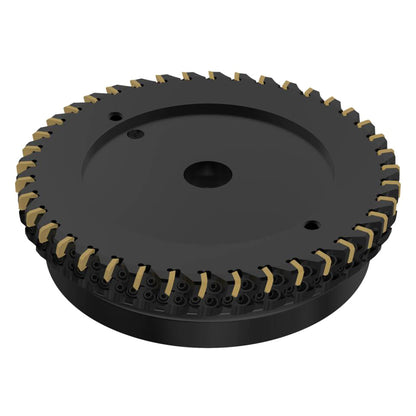

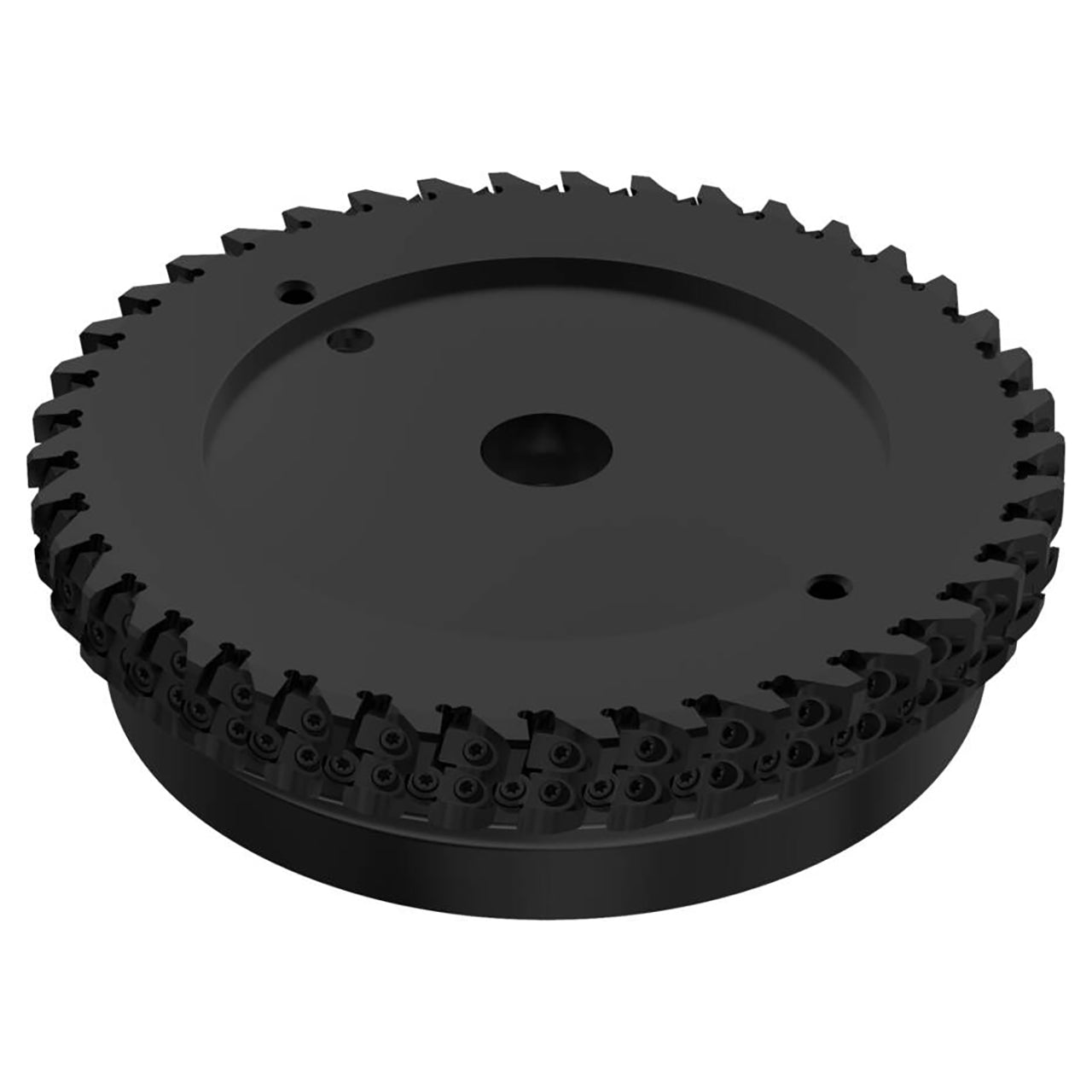

| Product Type | Indexable Copy Face Mill |
