Product Specifications
| Manufacturer Part Number | 75072191 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Cutting Pitch Density | Close |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Radial Angle (Degree) | -10 Degree |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.8 Degree |
| Maximum Rotational Speed (rpm) | 11600 rpm |
| Shank Type | Arbor |

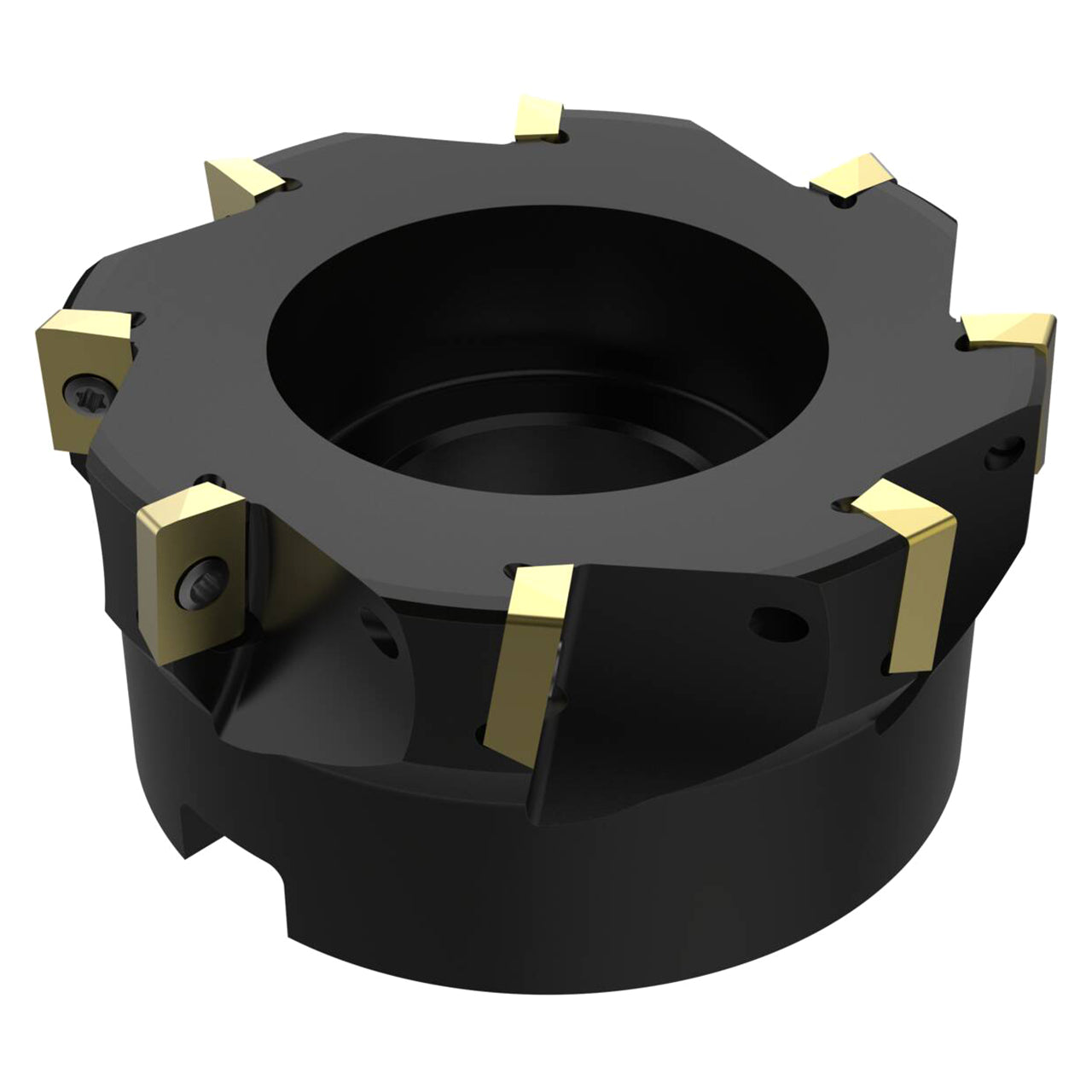

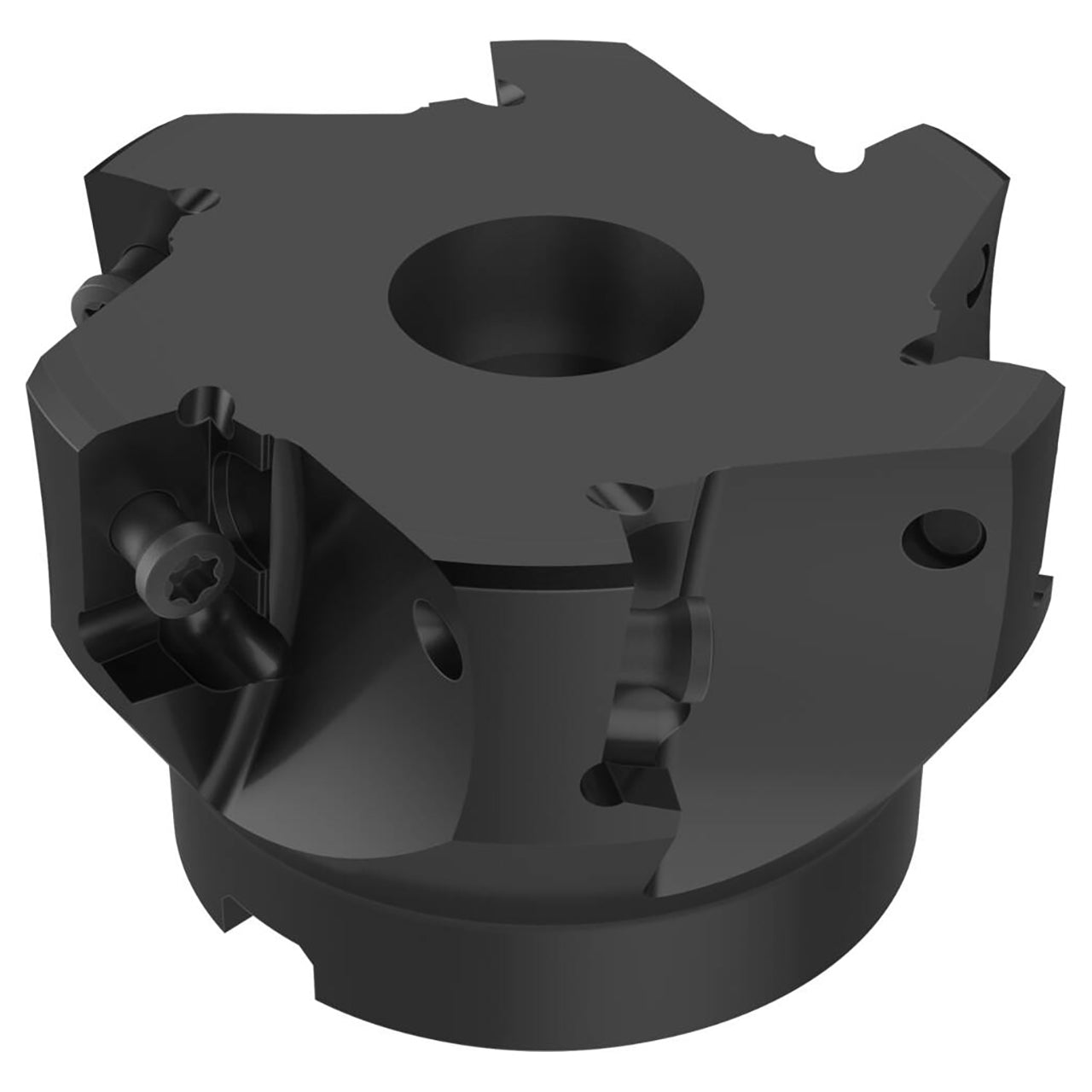

| Product Type | Indexable Square-Shoulder Face Mill |
