Product Specifications
| Manufacturer Part Number | 75072183 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Functional Length (Decimal Inch) | 2.323" |
| Functional Length (mm) | 59.00mm |
| Protruding Length (Decimal Inch) | 2.323" |
| Protruding Length (mm) | 59.00mm |
| Shank Length (Decimal Inch) | 3.150" |
| Shank Length (mm) | 80.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 32500 rpm |
| Shank Type | Weldon |

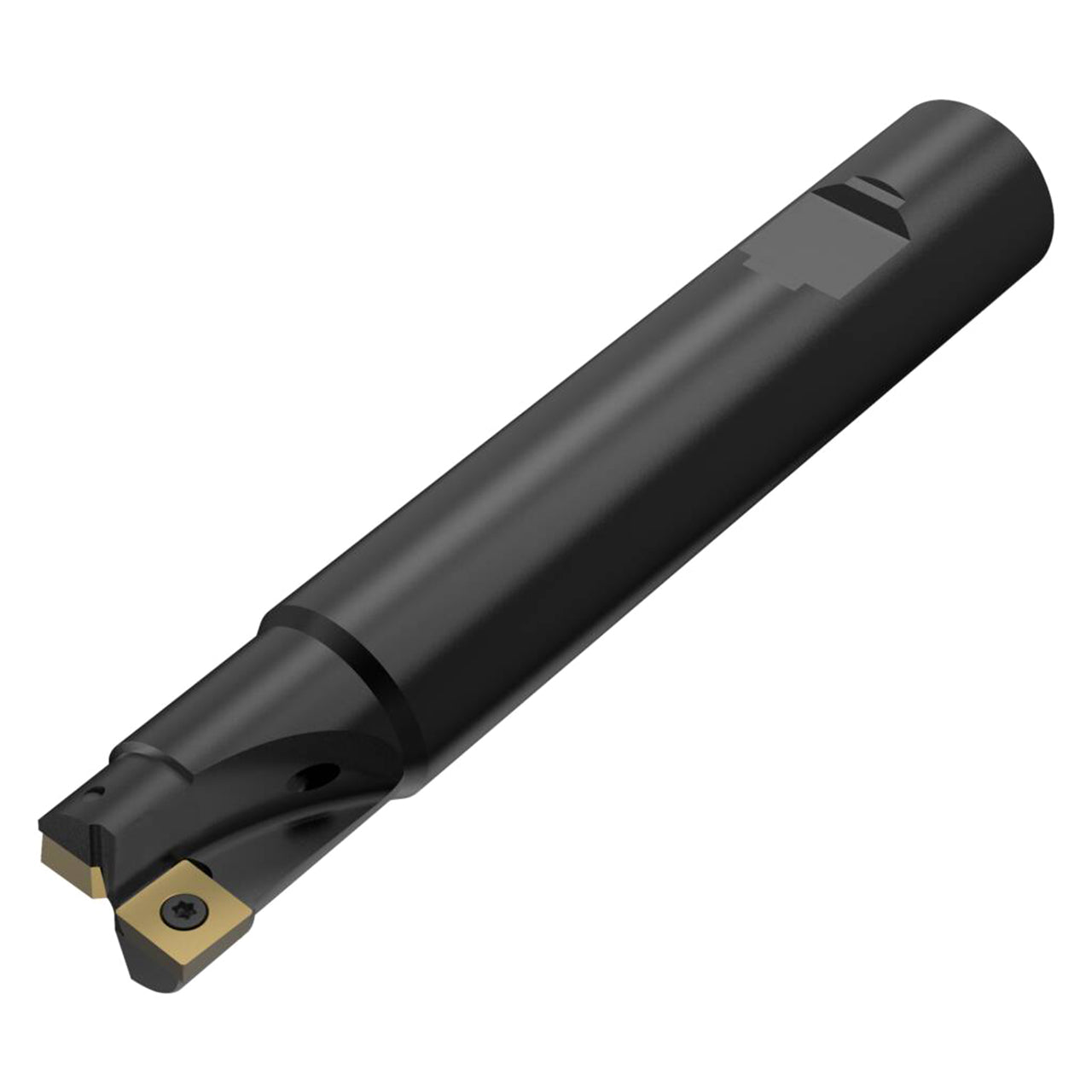

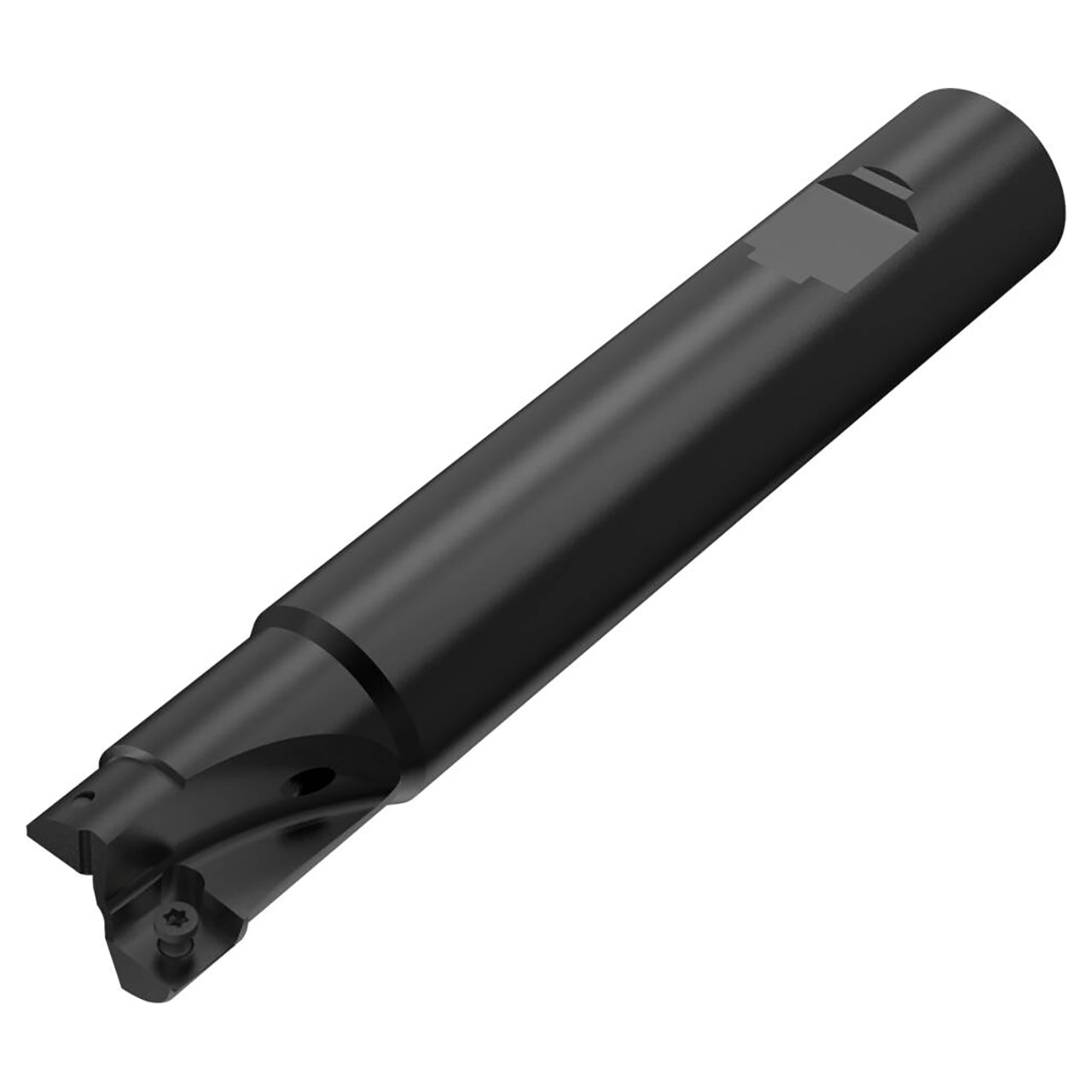

| Product Type | Indexable Square-Shoulder End Mill |
