Product Specifications
| Manufacturer Part Number | 75071808 |
| Functional Length (Decimal Inch) | 5.906" |
| Functional Length (mm) | 150.00mm |
| Head Length (Decimal Inch) | 0.787" |
| Head Length (mm) | 20.00mm |
| Shank Length (Decimal Inch) | 3.685" |
| Shank Length (mm) | 93.60mm |
| Shank Width (Decimal Inch) | 0.984" |
| Shank Width (mm) | 25.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.260" |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Functional Height (Decimal Inch) | 1.252" |
| Functional Height (mm) | 31.80mm |
| Functional Width (Decimal Inch) | 1.004" |
| Functional Width (mm) | 25.50mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | T |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | A |
| Insert Shape Code | R |
| Shank Type | Square shank |

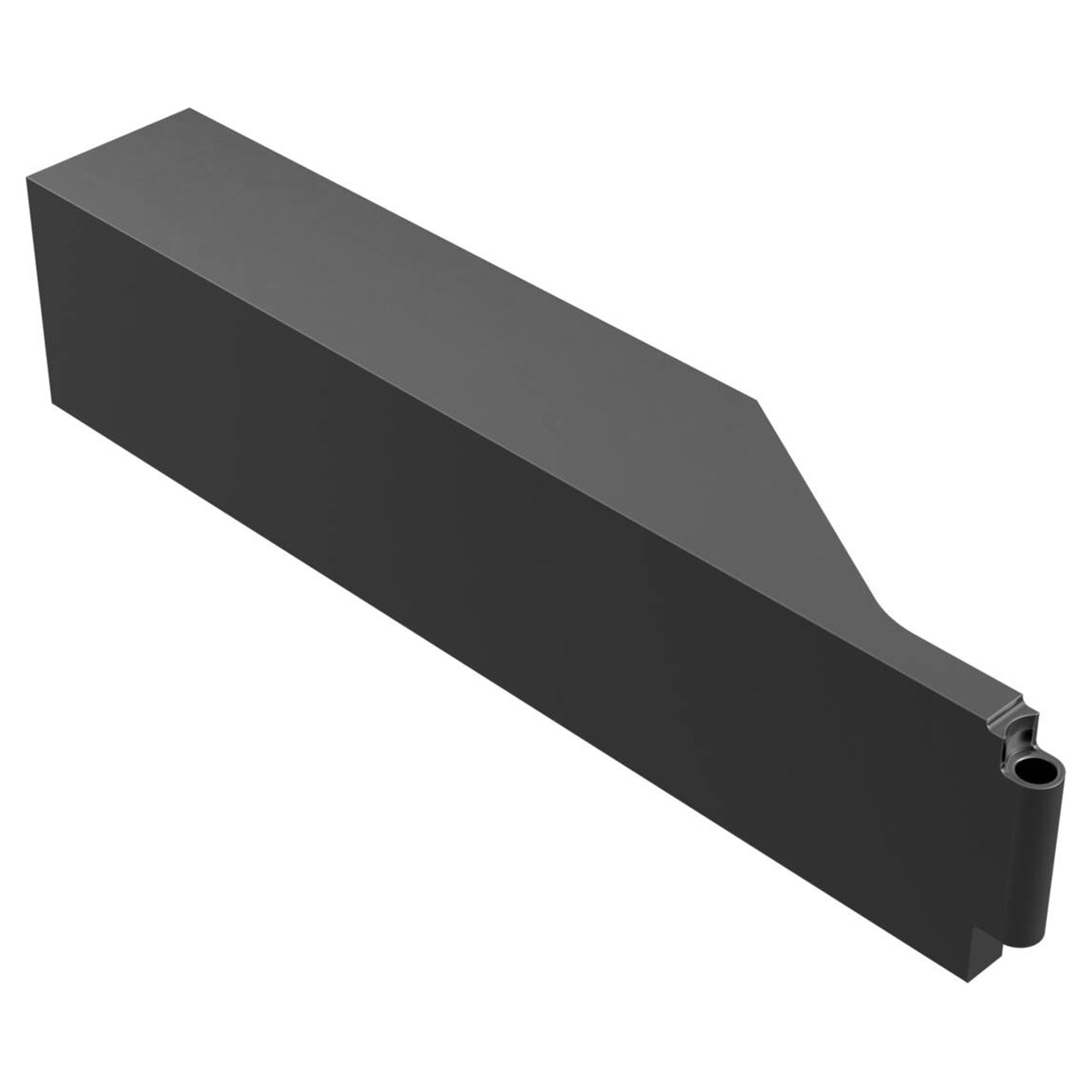

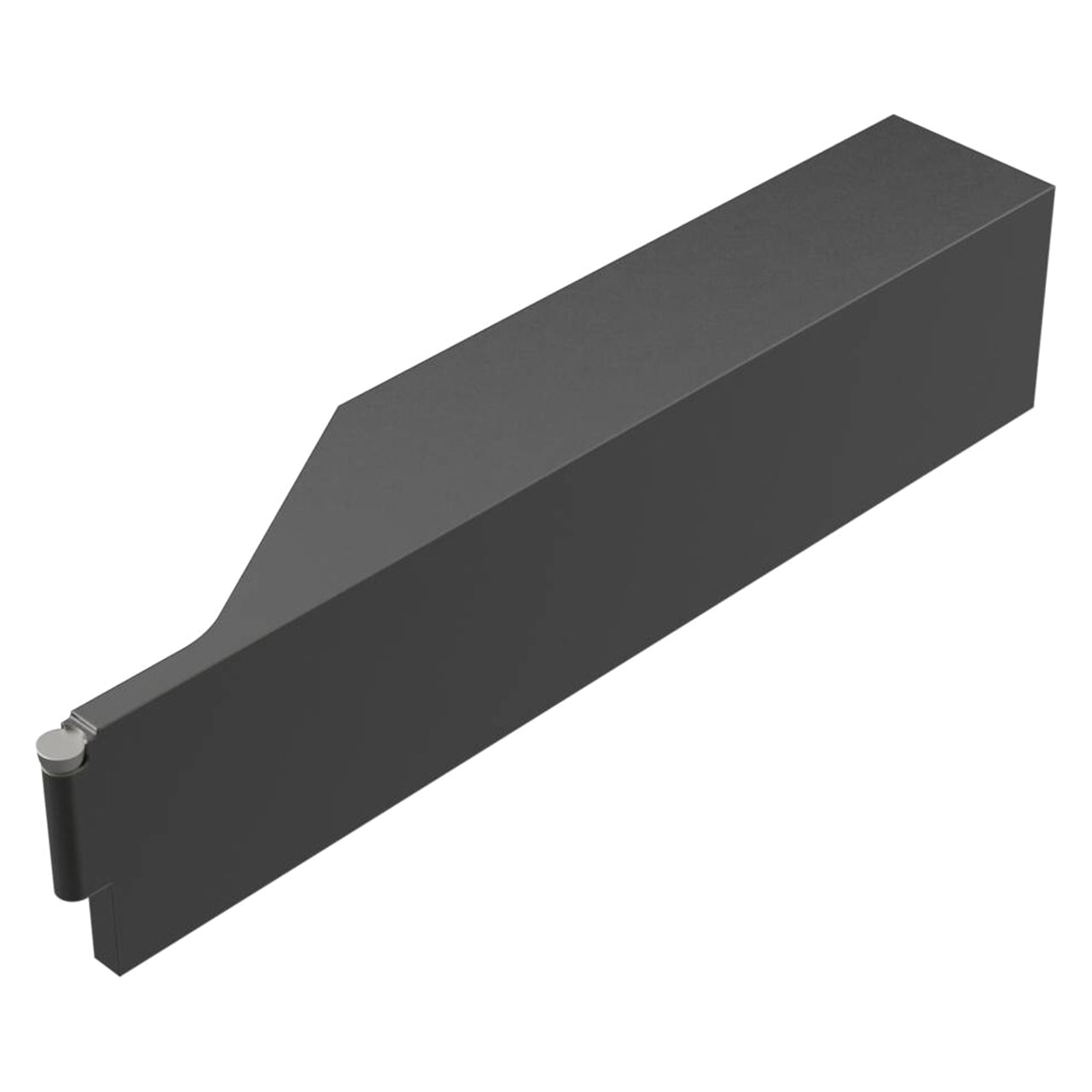

| Product Type | Indexable Turning Toolholder |
