Product Specifications
| Manufacturer Part Number | 75069267 |
| Functional Length (mm) | 150.00mm |
| Head Length (mm) | 29.30mm |
| Shank Width (mm) | 25.00mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Functional Width (mm) | 32.20mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 119 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | T |
| Shank Type | Square shank |

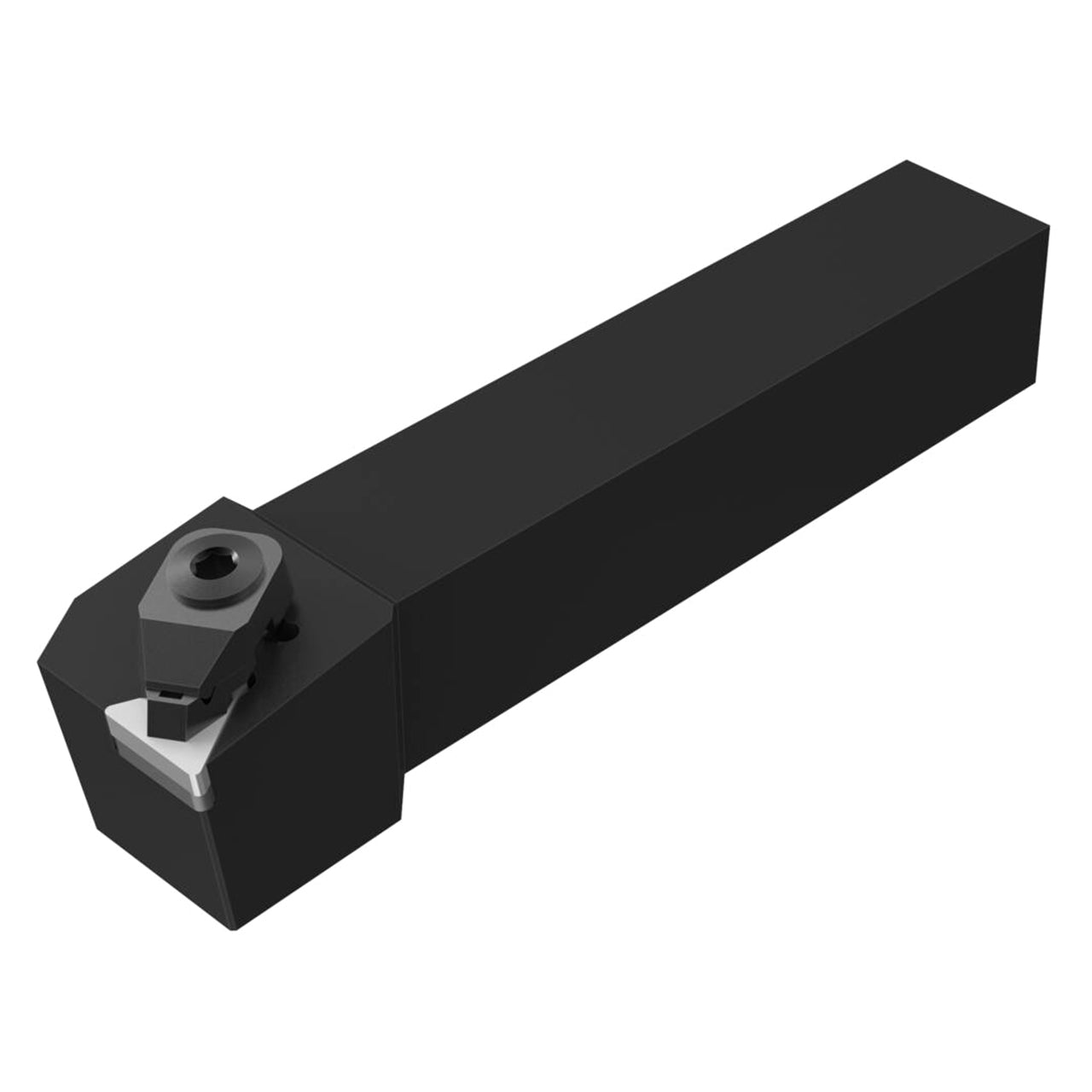

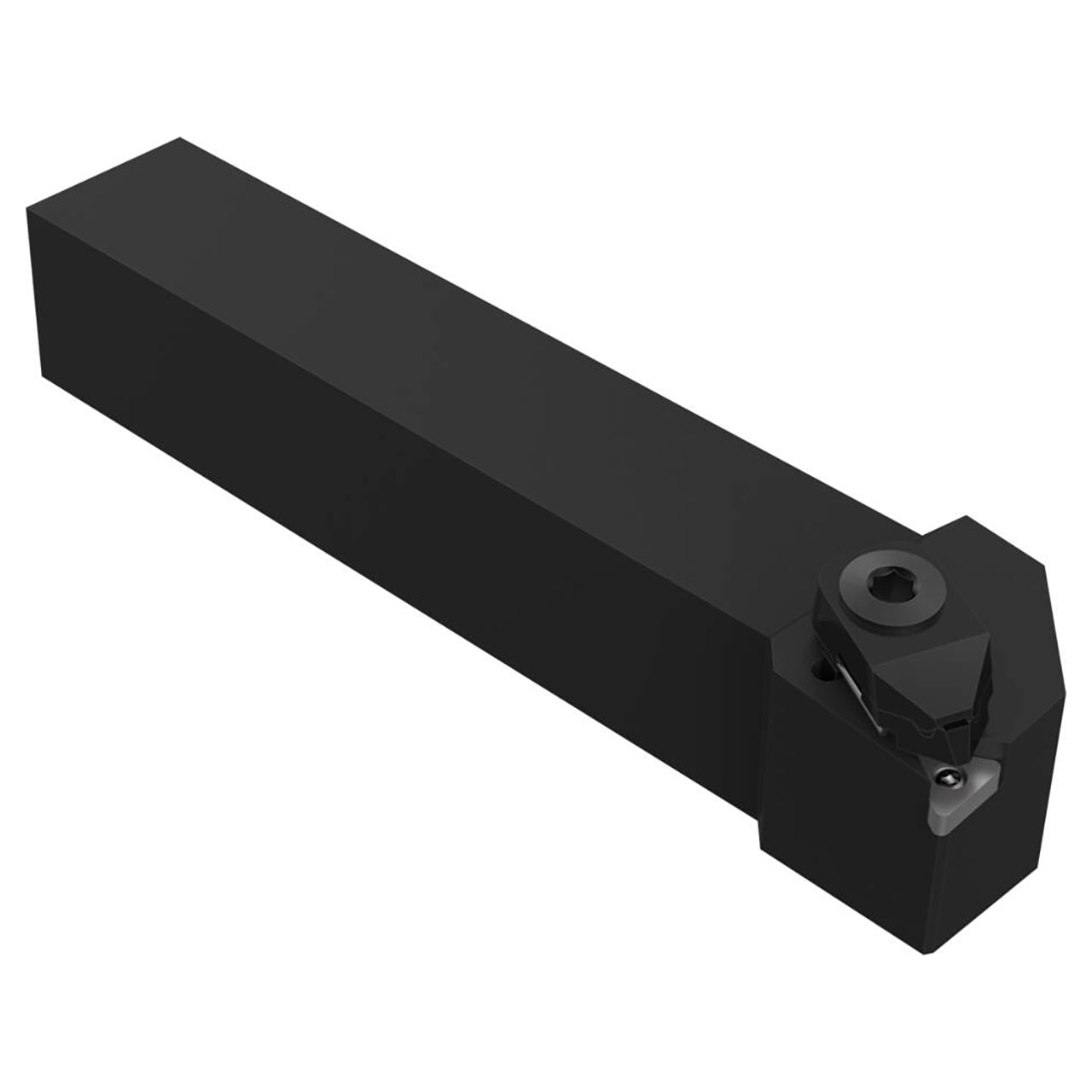

| Product Type | Indexable Turning Toolholder |
