Product Specifications
| Manufacturer Part Number | 75068040 |

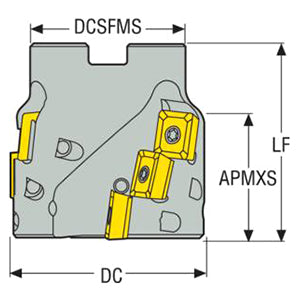

| Cutting Diameter (mm) | 100.00mm |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Functional Length (mm) | 75.00mm |
| Maximum Depth of Cut (mm) | 50.00mm |
| Depth of Key Way (mm) | 9.00mm |
| Keyway Width (mm) | 16.40mm |
| Cutting Pitch Density | Normal |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Rake Orthogonal Angle (Degree) | -8.5 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 6 |
| Maximum Rotational Speed (rpm) | 5800 rpm |
| Insert Shape Code | A |
| Shank Type | Arbor |

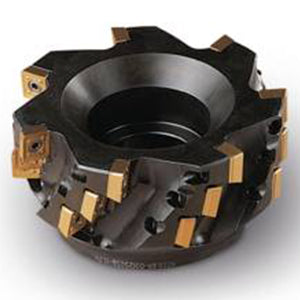

| Product Type | Indexable Square Shoulder Mill |
