Product Specifications
| Manufacturer Part Number | 75056424 |

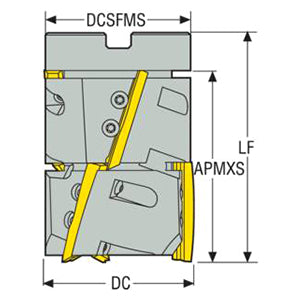

| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.866" |
| Contact Surface Diameter Machine Side (mm) | 72.80mm |
| Functional Length (Decimal Inch) | 4.724" |
| Functional Length (mm) | 120.00mm |
| Maximum Depth of Cut (mm) | 88.90mm |
| Maximum Depth of Cut (Decimal Inch) | 3.500" |
| Depth of Key Way (Decimal Inch) | 0.221" |
| Depth of Key Way (mm) | 5.60mm |
| Keyway Width (Decimal Inch) | 0.375" |
| Keyway Width (mm) | 9.53mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Axial Rake Angle (Degree) | 18 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 4400 rpm |
| Insert Shape Code | X |
| Shank Type | Arbor |

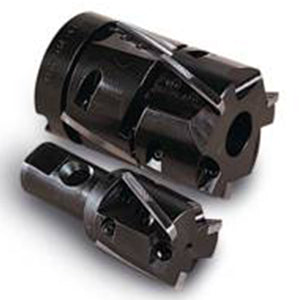

| Product Type | Indexable Square Shoulder Mill |
