Product Specifications
| Manufacturer Part Number | 75054744 |
| Cutting Diameter (Decimal Inch) | 4.000" |
| Cutting Diameter (mm) | 101.60mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Maximum Depth of Cut (mm) | 2.50mm |
| Maximum Depth of Cut (Decimal Inch) | 0.098" |
| Maximum Cutting Depth (Decimal Inch) | 1.161" |
| Maximum Cutting Depth (mm) | 29.50mm |
| Cutting Width (Decimal Inch) | 0.089" |
| Cutting Width (mm) | 2.25mm |
| Minimum Cutting Width (Decimal Inch) | 0.089" |
| Minimum Cutting Width (mm) | 2.25mm |
| Maximum Cutting Width (Decimal Inch) | 0.098" |
| Maximum Cutting Width (mm) | 2.50mm |
| Keyway Width (Decimal Inch) | 0.250" |
| Keyway Width (mm) | 6.35mm |
| Hub Thickness (Decimal Inch) | 0.0748 |
| Hub Thickness (mm) | 1.9 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Cutting Direction | Neutral |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 3200 rpm |
| Shank Type | Arbor hole |

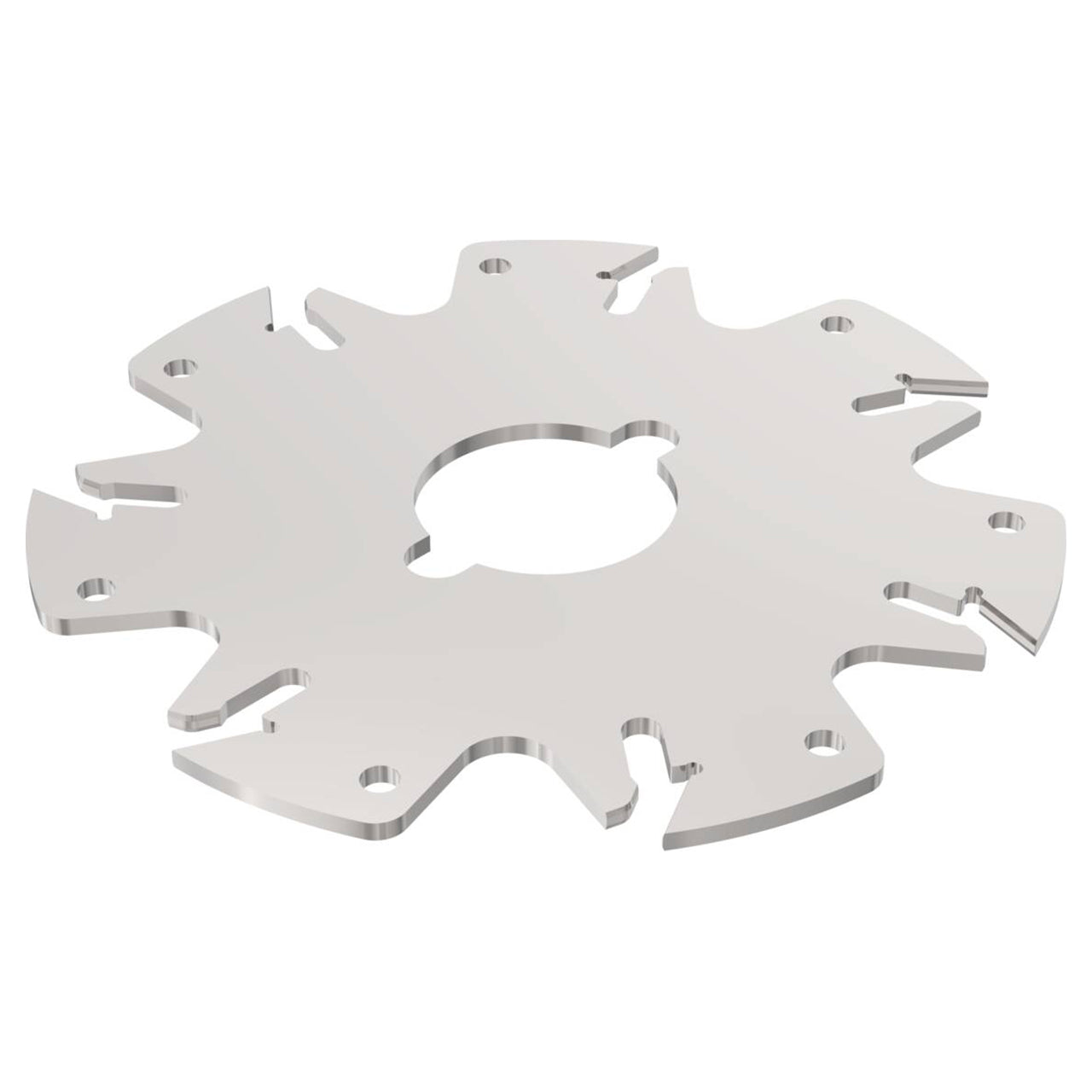

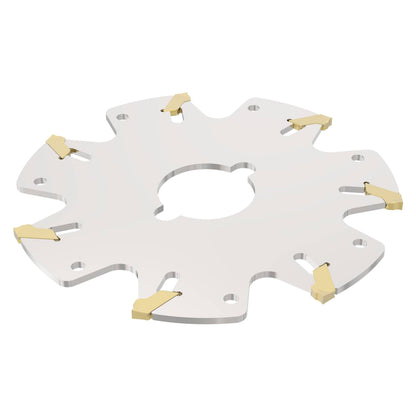

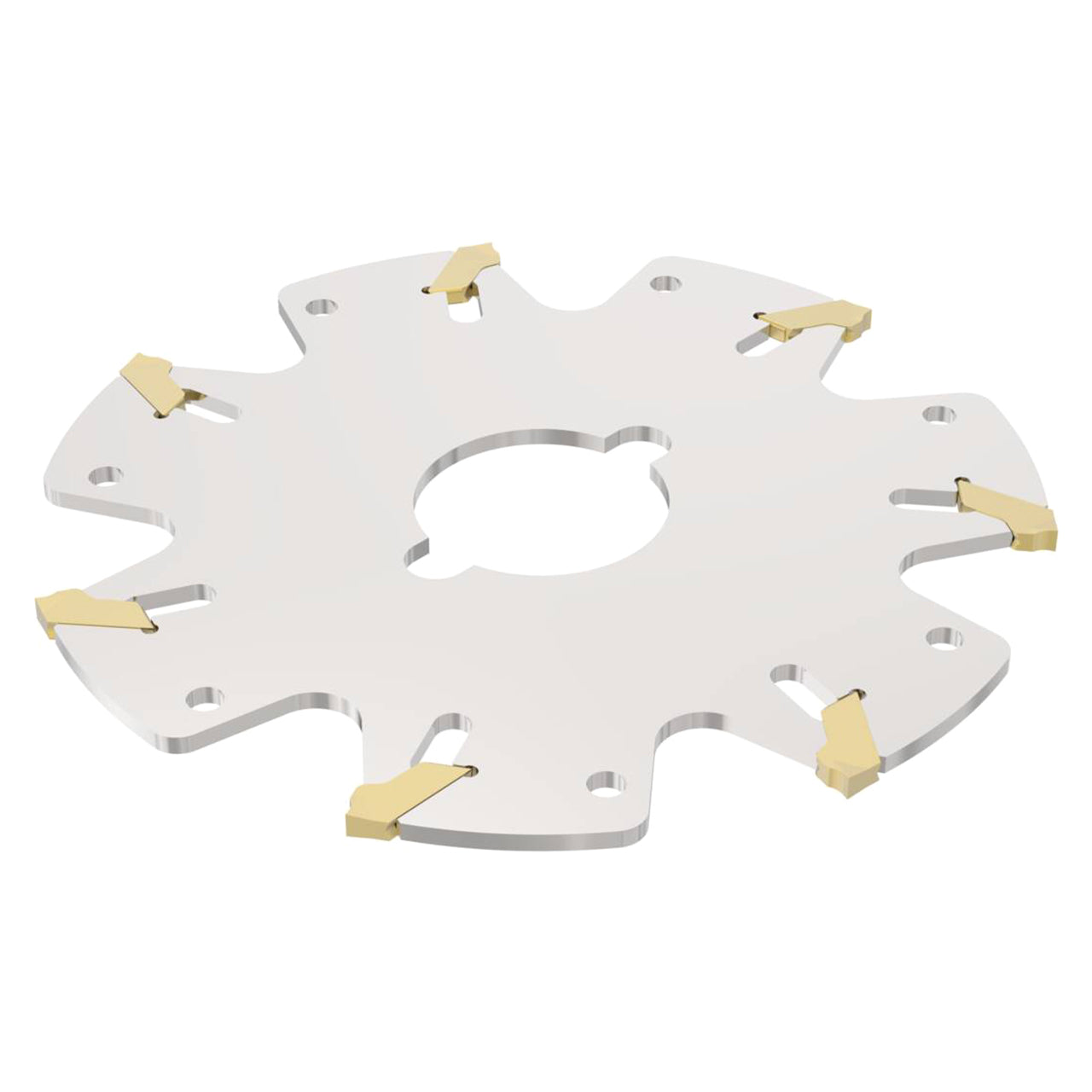

| Product Type | Indexable Slotting Cutter |
