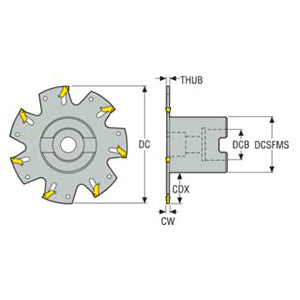

Product Specifications
| Manufacturer Part Number | 75054685 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.150" |
| Contact Surface Diameter Machine Side (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 3.10mm |
| Maximum Depth of Cut (Decimal Inch) | 0.122" |
| Depth of Key Way (Decimal Inch) | 0.382" |
| Depth of Key Way (mm) | 9.70mm |
| Maximum Cutting Depth (Decimal Inch) | 1.406" |
| Maximum Cutting Depth (mm) | 35.70mm |
| Cutting Width (Decimal Inch) | 0.122" |
| Cutting Width (mm) | 3.10mm |
| Minimum Cutting Width (Decimal Inch) | 0.122" |
| Minimum Cutting Width (mm) | 3.10mm |
| Maximum Cutting Width (Decimal Inch) | 0.122" |
| Maximum Cutting Width (mm) | 3.10mm |
| Keyway Width (Decimal Inch) | 0.630" |
| Keyway Width (mm) | 16.00mm |
| Hub Thickness (Decimal Inch) | 0.0945 |
| Hub Thickness (mm) | 2.4 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 2400 rpm |
| Shank Type | Arbor |

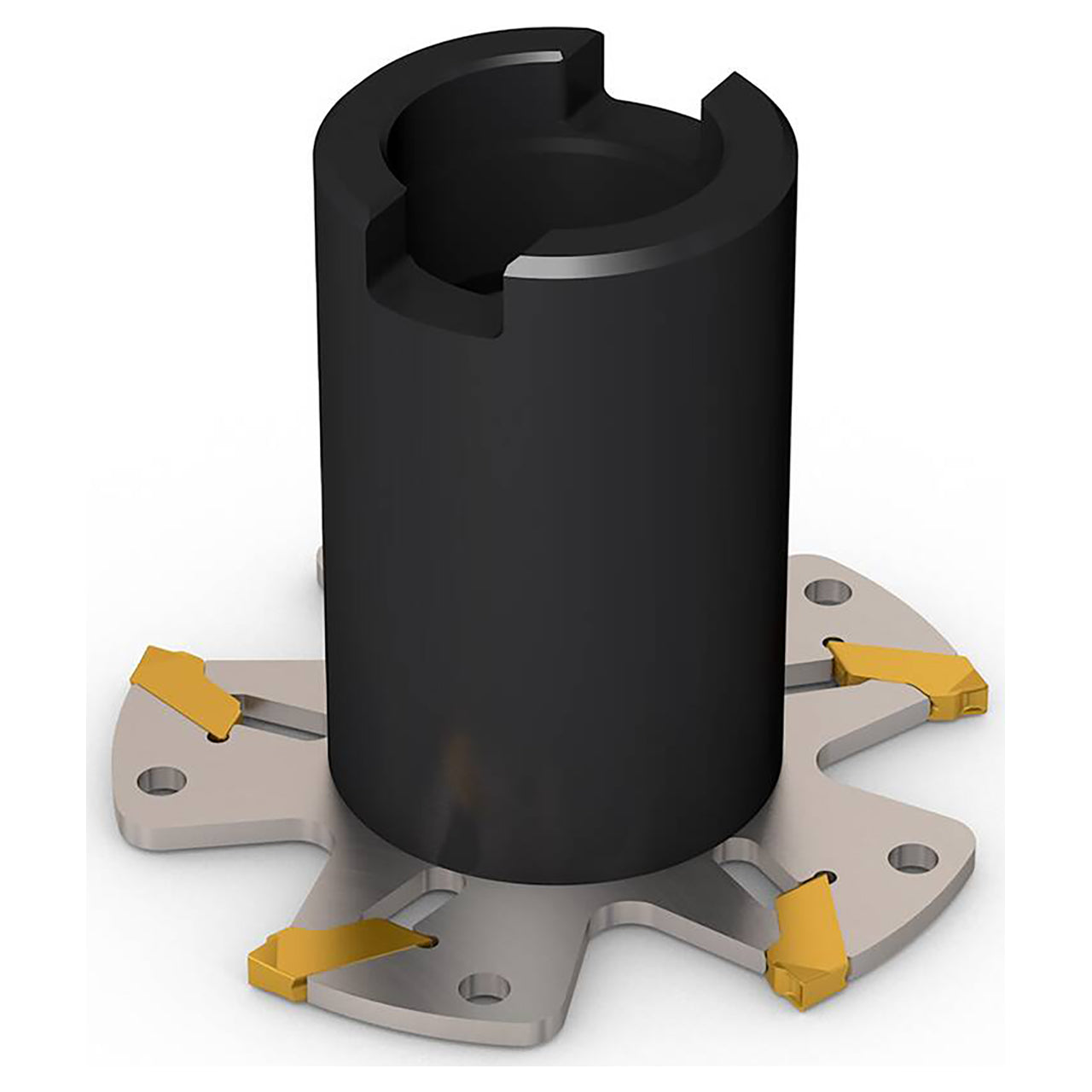

| Product Type | Indexable Slotting Cutter |
