Product Specifications
| Manufacturer Part Number | 75039975 |
| Body Diameter (Decimal Inch) | 1.102" |
| Body Diameter (mm) | 28.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Minimum Connection Bore Diameter (mm) | 8.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.315" |
| Maximum Connection Bore Diameter (mm) | 8.00mm |
| Body Length (Decimal Inch) | 1.024" |
| Body Length (mm) | 26.00mm |
| Functional Length Secondary (Decimal Inch) | 1.457" |
| Functional Length Secondary (mm) | 37.00mm |
| Protruding Length (Decimal Inch) | 2.165" |
| Protruding Length (mm) | 55.00mm |
| Clamping Length (Decimal Inch) | 1.181" |
| Clamping Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 3.661" |
| Overall Length (mm) | 93.00mm |
| Body Half Taper Angle Degree) | 22 Degree |

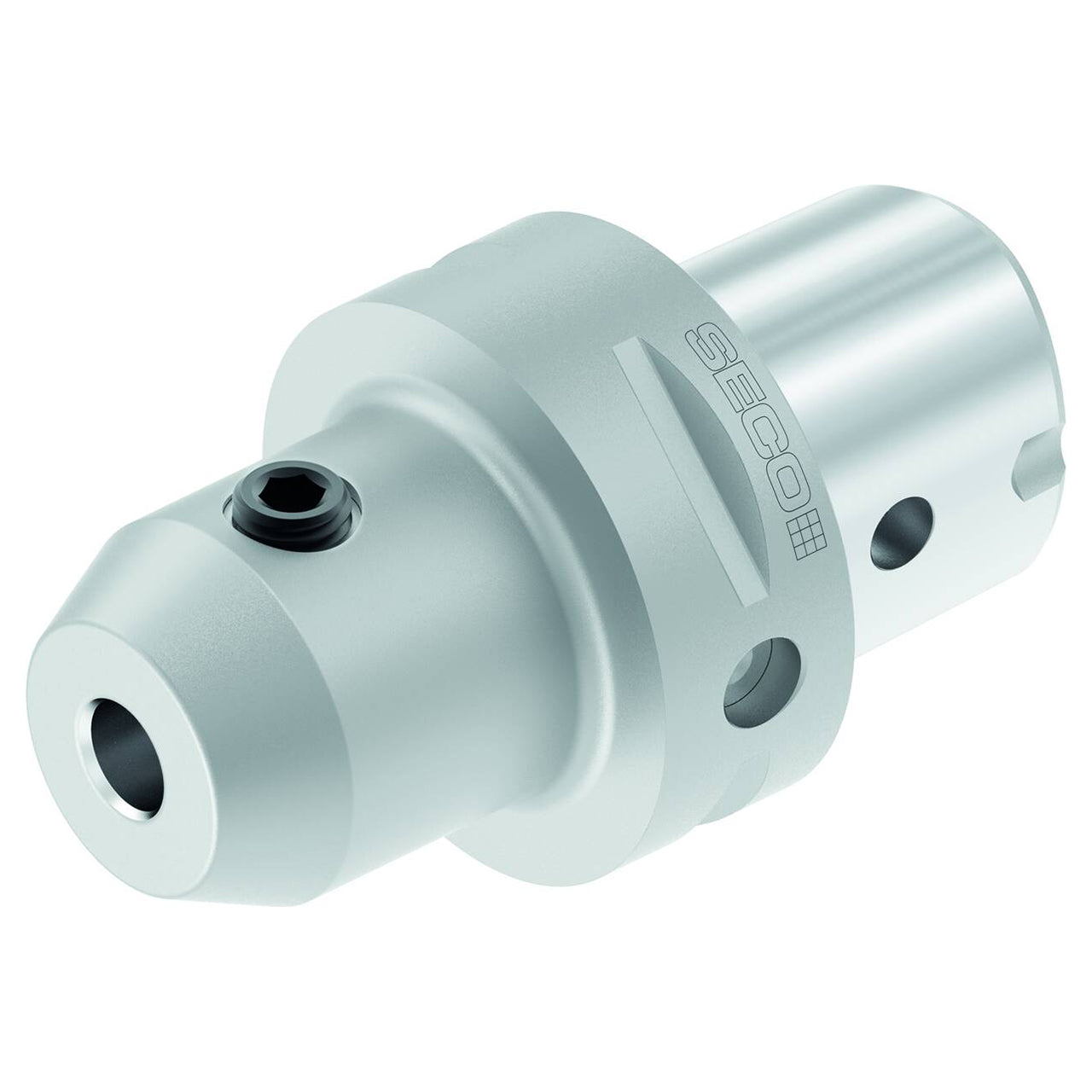

| Product Type | End Mill Holder |
