Product Specifications
| Manufacturer Part Number | 75039964 |
| Body Diameter (Decimal Inch) | 1.378" |
| Body Diameter (mm) | 35.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 1.165" |
| Body Length (mm) | 29.60mm |
| Functional Length Secondary (Decimal Inch) | 1.221" |
| Functional Length Secondary (mm) | 31.00mm |
| Protruding Length (Decimal Inch) | 2.008" |
| Protruding Length (mm) | 51.00mm |
| Clamping Length (Decimal Inch) | 1.417" |
| Clamping Length (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 2.953" |
| Overall Length (mm) | 75.00mm |
| Body Half Taper Angle Degree) | 30 Degree |

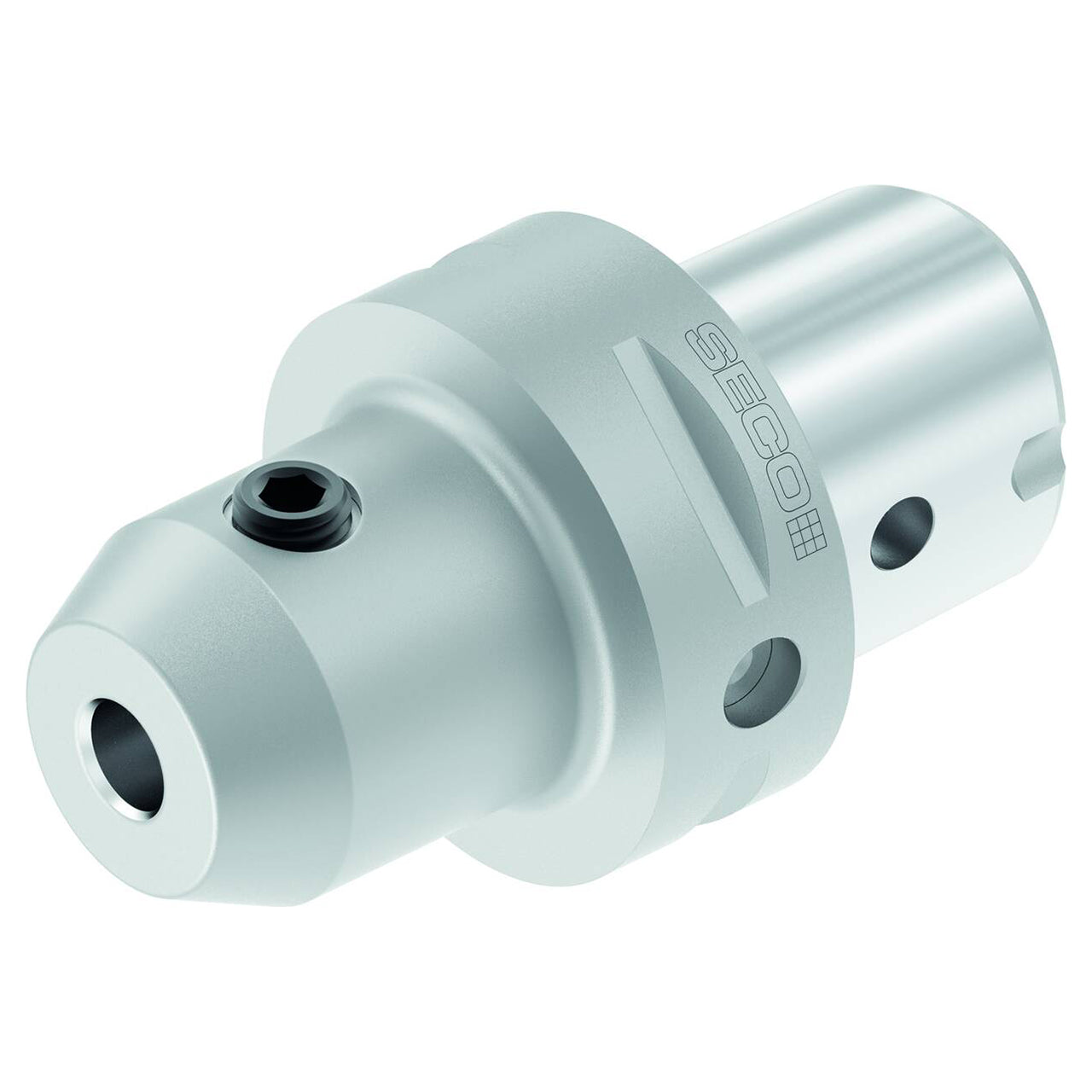

| Product Type | End Mill Holder |
