Product Specifications
| Manufacturer Part Number | 75038551 |
| Cutting Diameter (mm) | 80.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 56.00mm |
| Maximum Cutting Diameter (mm) | 80.75mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 1.00mm |
| Depth of Key Way (mm) | 8.00mm |
| Keyway Width (mm) | 12.40mm |
| Cutting Pitch Density | Close |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 5 Degree |
| Axial Rake Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 88 Degree |
| Maximum Rotational Speed (rpm) | 5300 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

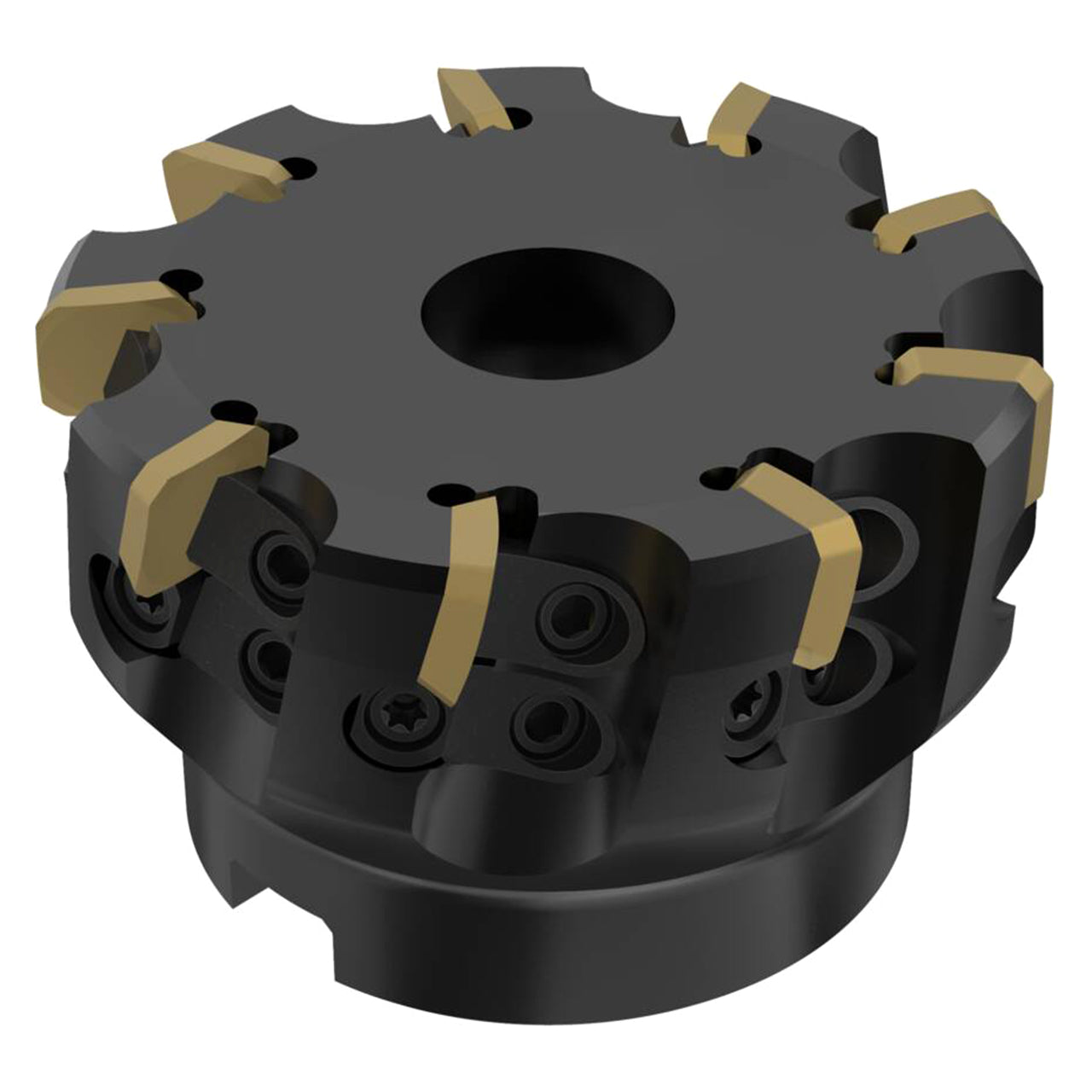

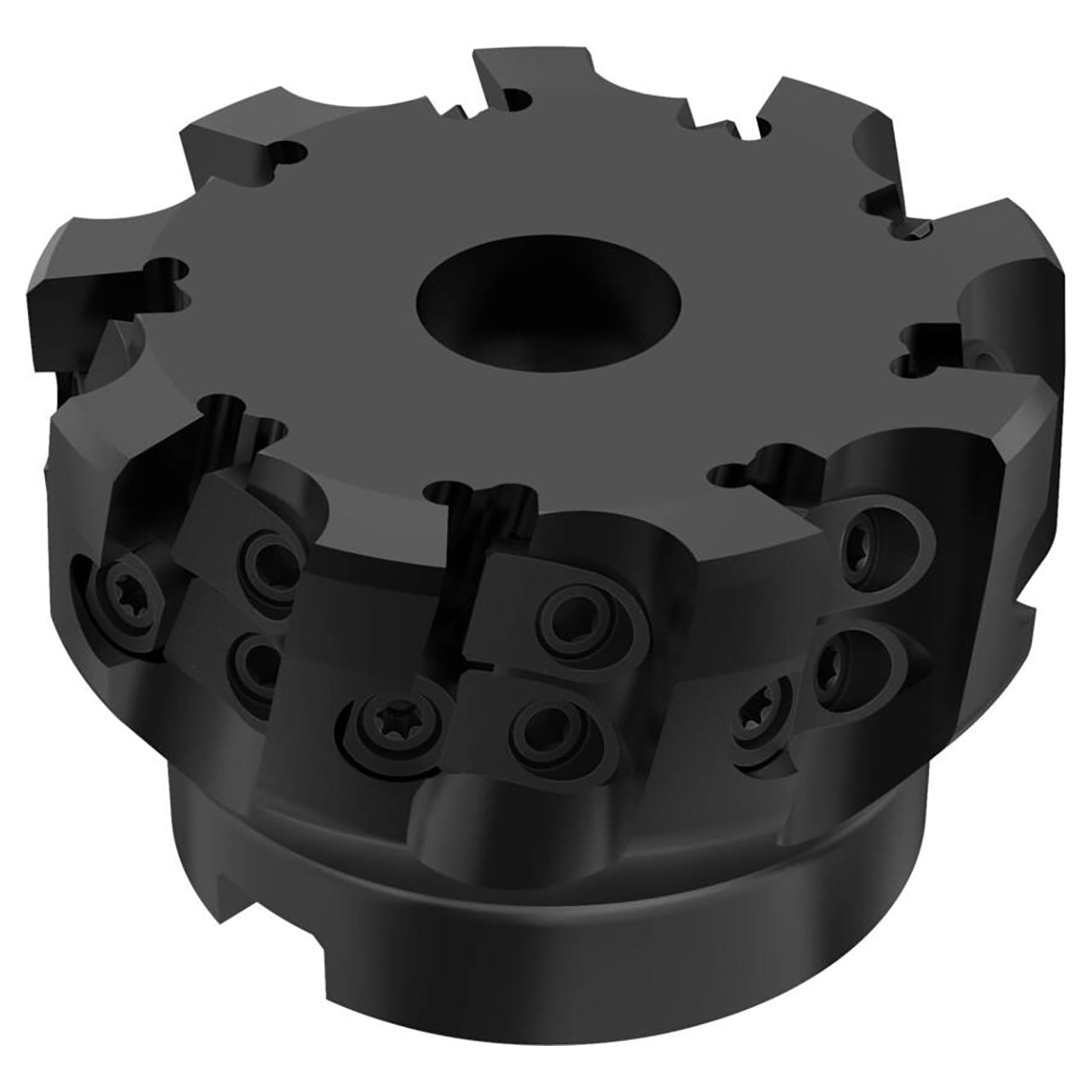

| Product Type | Indexable Copy Face Mill |
