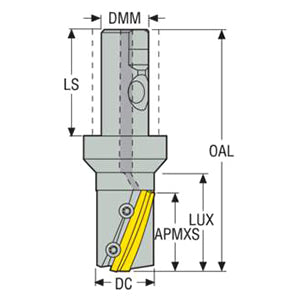

Product Specifications
| Manufacturer Part Number | 75036948 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Shank Diameter (mm) | 25.00mm |
| Protruding Length (mm) | 69.00mm |
| Shank Length (mm) | 56.00mm |
| Overall Length (mm) | 125.00mm |
| Maximum Depth of Cut (mm) | 40.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Super close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Axial Rake Angle (Degree) | 18 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Rotational Speed (rpm) | 8000 rpm |
| Insert Shape Code | X |
| Shank Type | SecoWeldon |

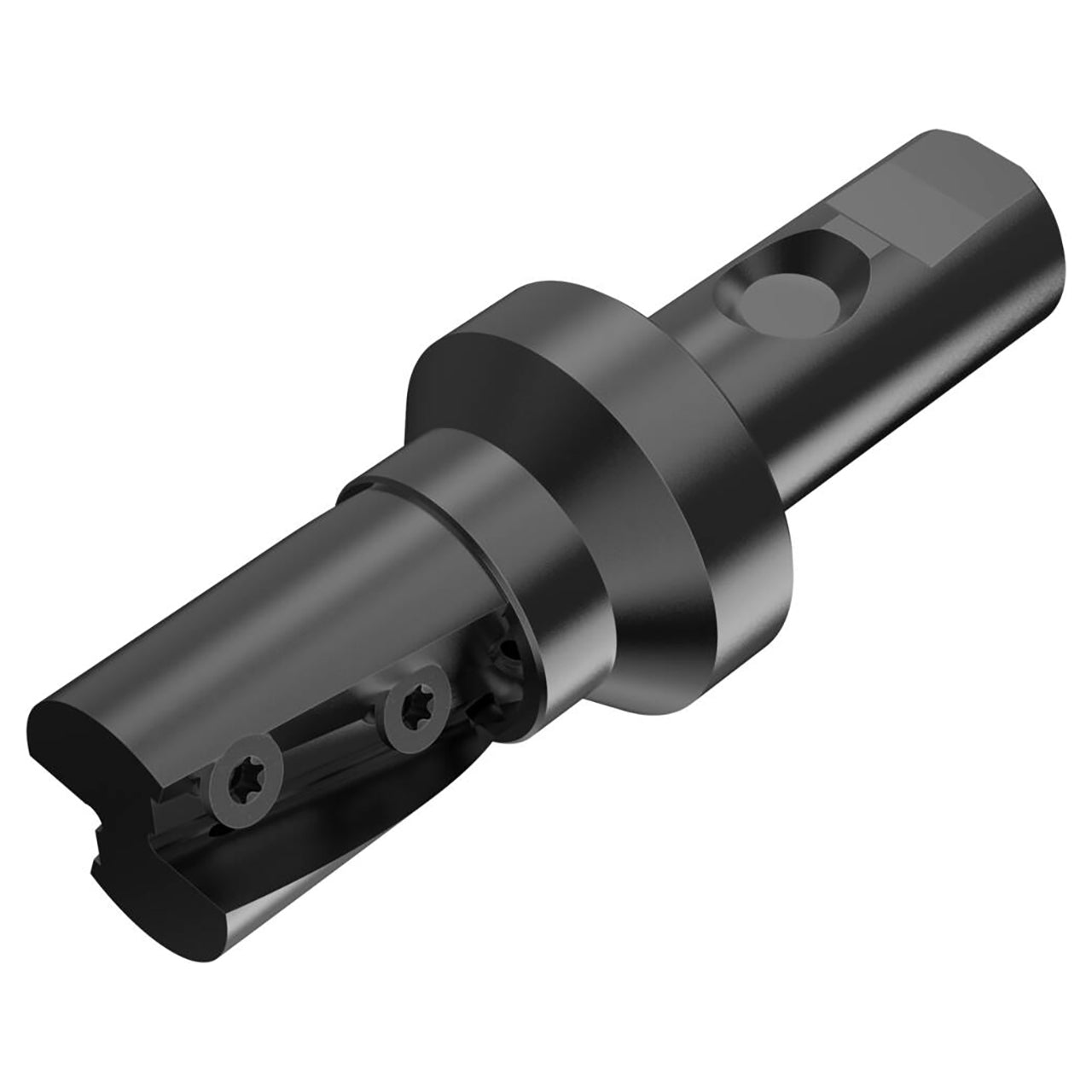

| Product Type | Indexable Square Shoulder Mill |
