Product Specifications
| Manufacturer Part Number | 75029427 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.984" |
| Minimum Cutting Diameter Internal (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 1.024" |
| Functional Length (mm) | 26.00mm |
| Shank Width (Decimal Inch) | 0.276" |
| Shank Width (mm) | 7.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.433" |
| Height of Tool Holder Shank (mm) | 11.00mm |
| Functional Height (Decimal Inch) | 0.315" |
| Functional Height (mm) | 8.00mm |
| Mounting Hole Distance (Decimal Inch) | 0.669" |
| Mounting Hole Distance (mm) | 17.00mm |
| Functional Width (Decimal Inch) | 0.394" |
| Functional Width (mm) | 10.00mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 100 Degree |
| Shank Type | Cartridges |

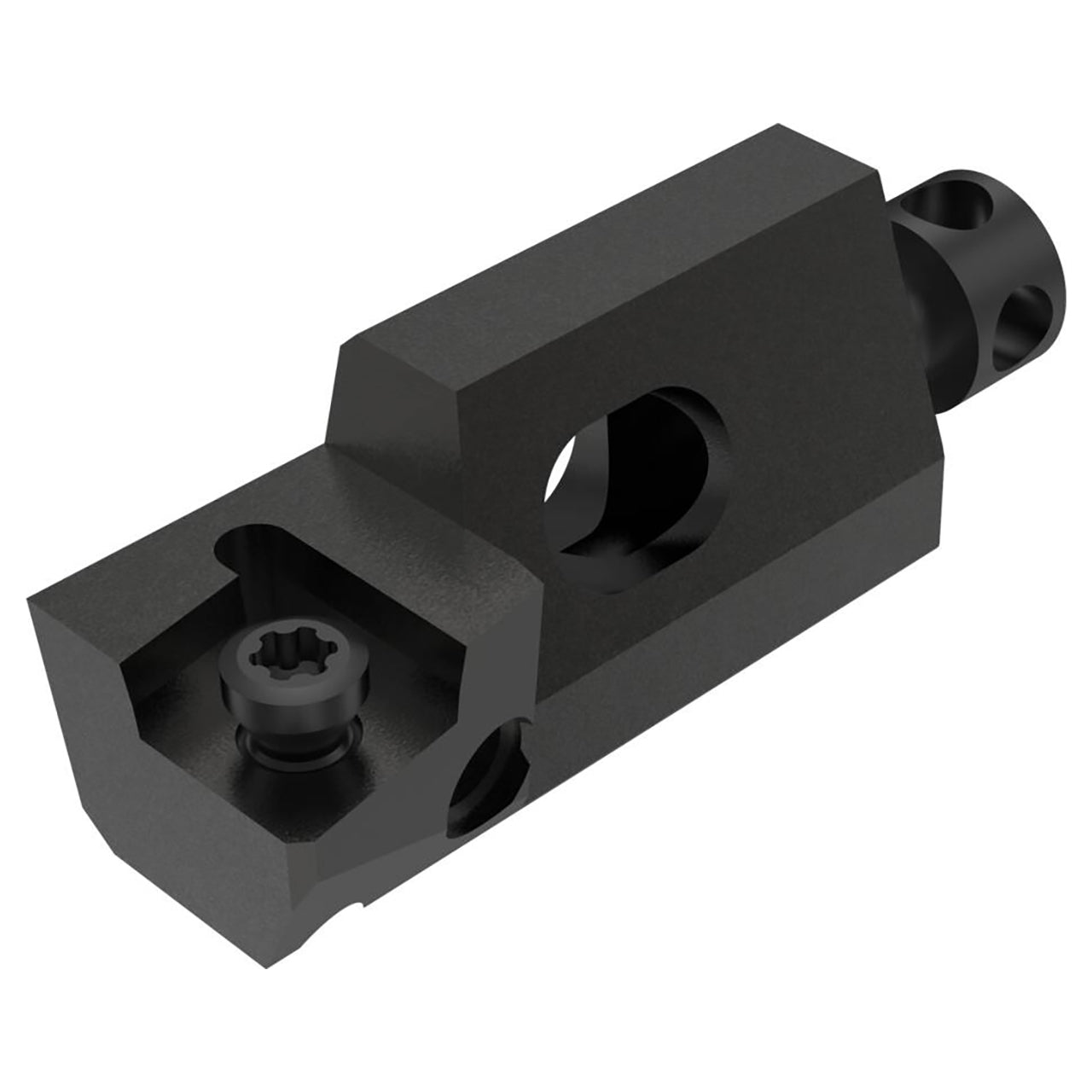

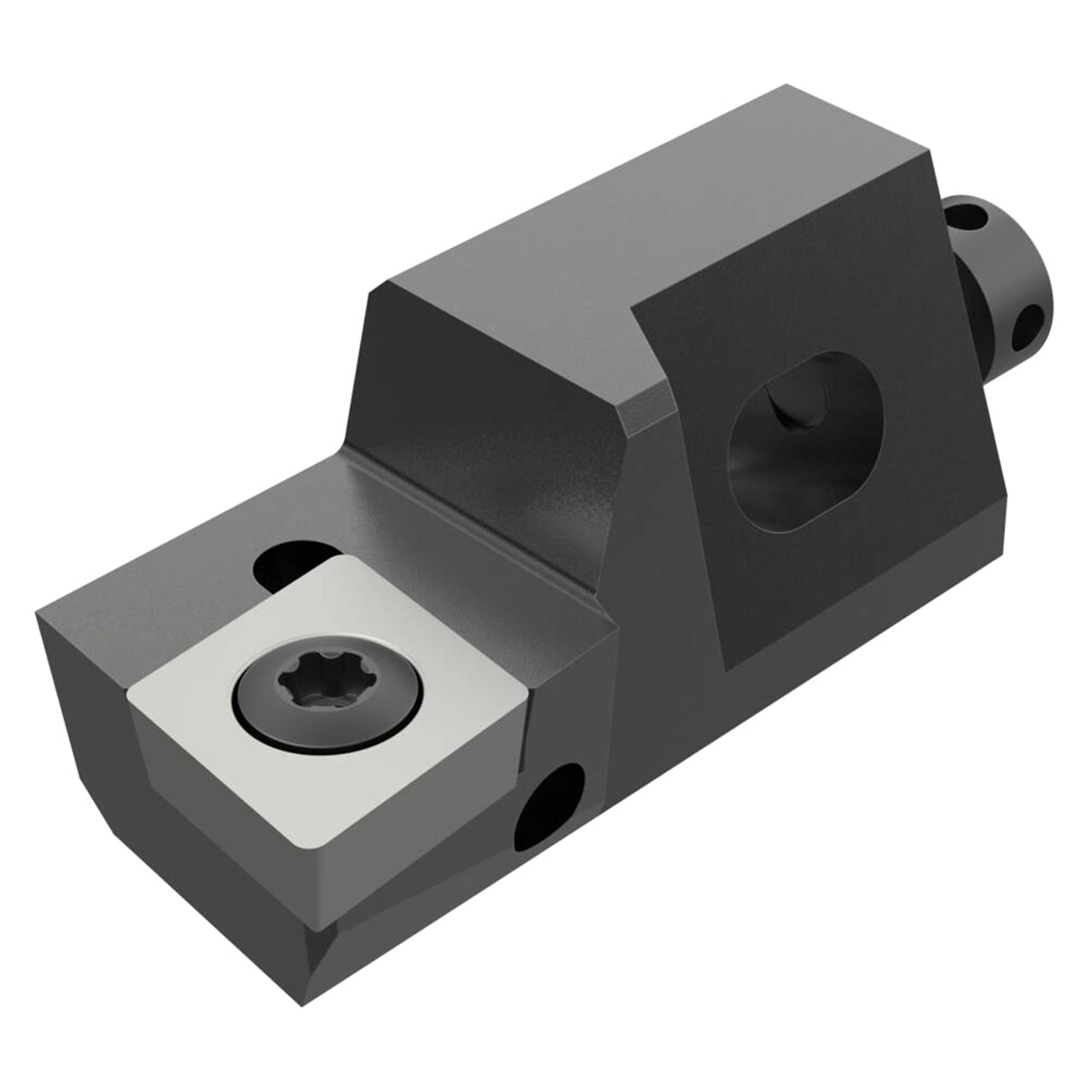

| Product Type | Indexable Turning Cartridge |
