Product Specifications
| Manufacturer Part Number | 75012030 |
| Cutting Diameter (mm) | 100.00mm |
| Connection Bore Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 77.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 199.60mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 197.06mm |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Depth of Key Way (mm) | 8.00mm |
| Keyway Width (mm) | 14.40mm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -12 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Rake Orthogonal Angle (Degree) | -12 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.4 Degree |
| Maximum Rotational Speed (rpm) | 9200 rpm |
| Shank Type | Arbor |

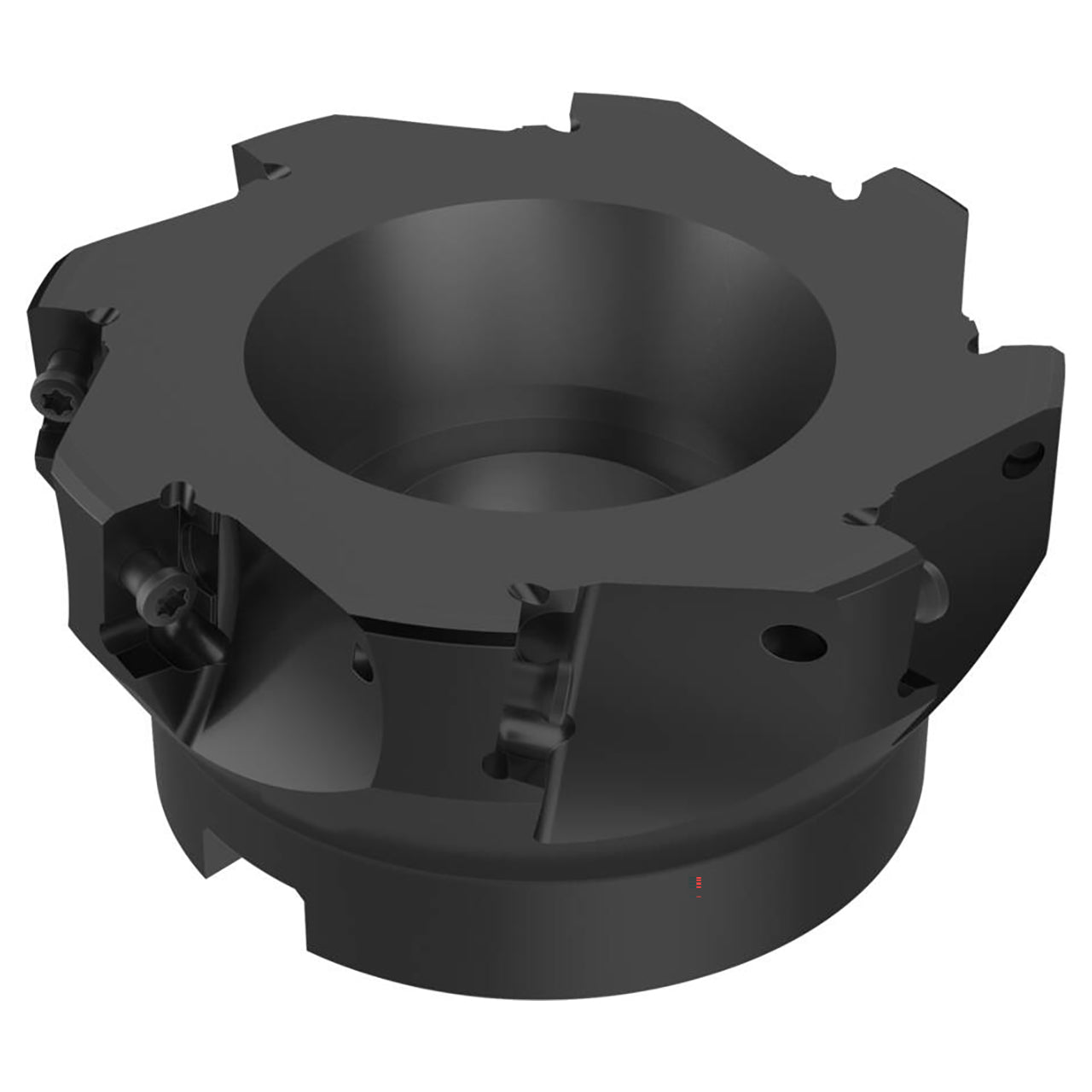

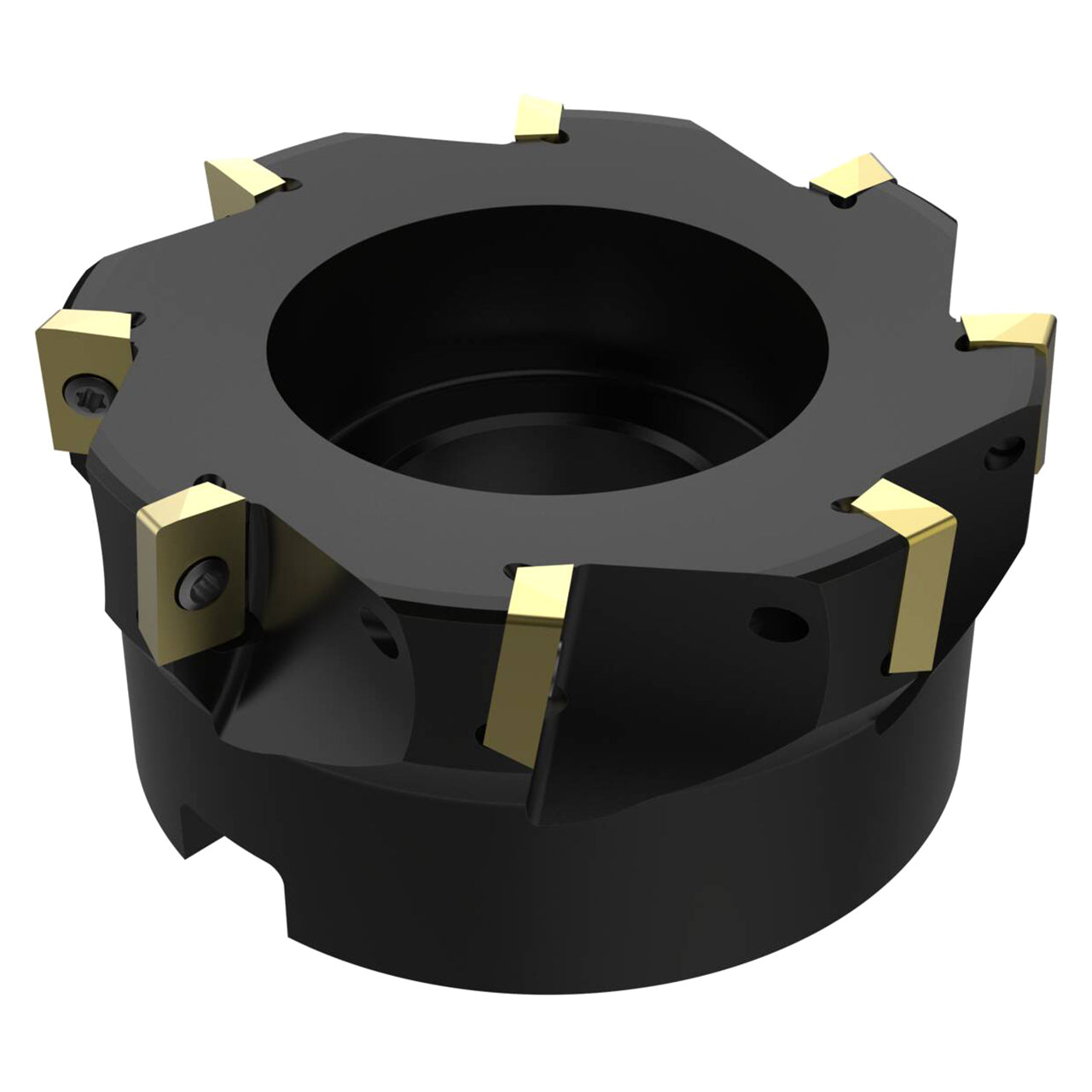

| Product Type | Indexable Square-Shoulder Face Mill |
