Product Specifications
| Manufacturer Part Number | 75011810 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.575" |
| Minimum Cutting Diameter Internal (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Head Length (Decimal Inch) | 0.866" |
| Head Length (mm) | 22.00mm |
| Shank Width (Decimal Inch) | 0.433" |
| Shank Width (mm) | 11.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.045" |
| Maximum Radial Cutting Depth (mm) | 1.14mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.591" |
| Height of Tool Holder Shank (mm) | 15.00mm |
| Functional Height (Decimal Inch) | 0.394" |
| Functional Height (mm) | 10.00mm |
| Mounting Hole Distance (Decimal Inch) | 0.787" |
| Mounting Hole Distance (mm) | 20.00mm |
| Functional Width (Decimal Inch) | 0.550" |
| Functional Width (mm) | 13.96mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 100 Degree |
| Insert Shape Code | C |
| Shank Type | Cartridges |

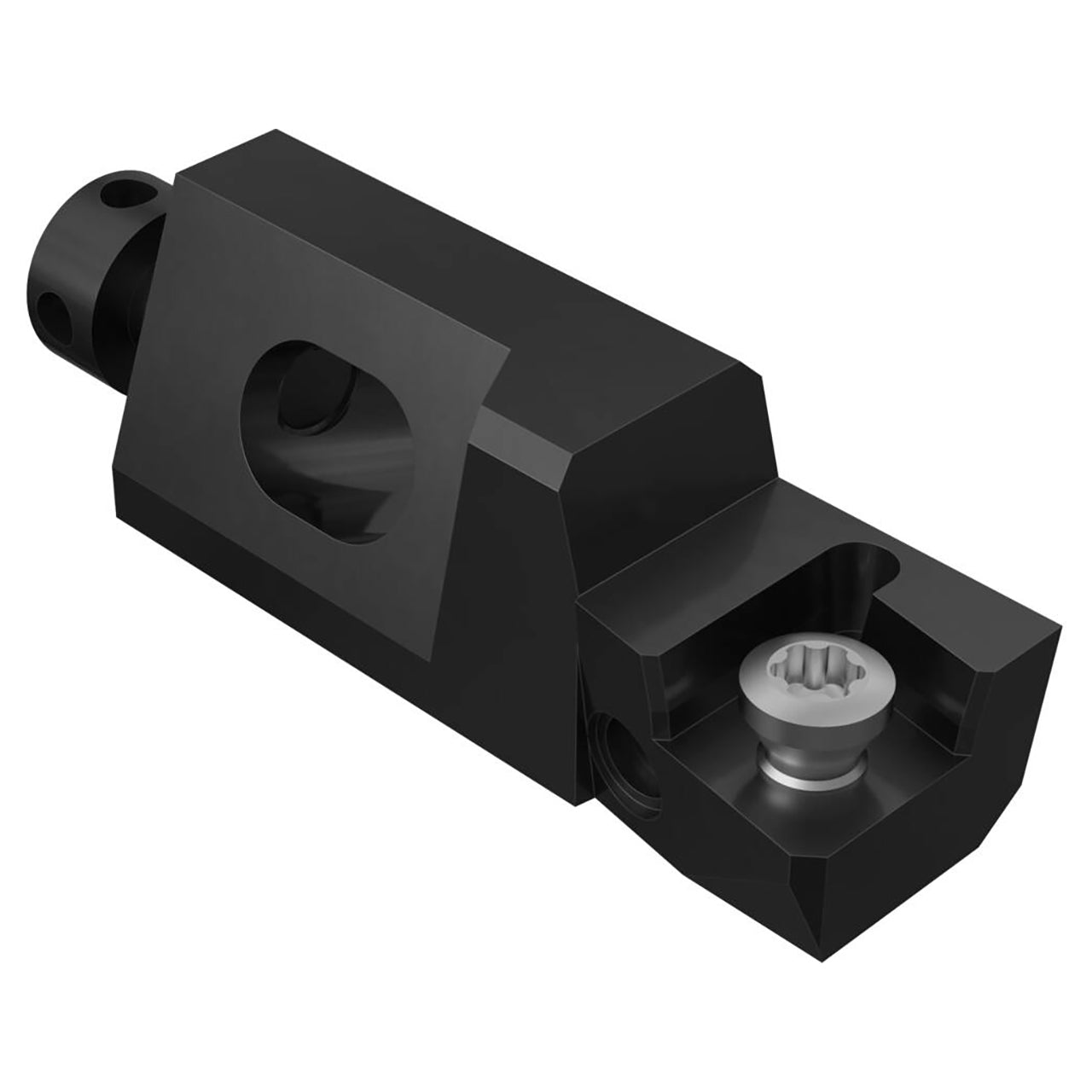

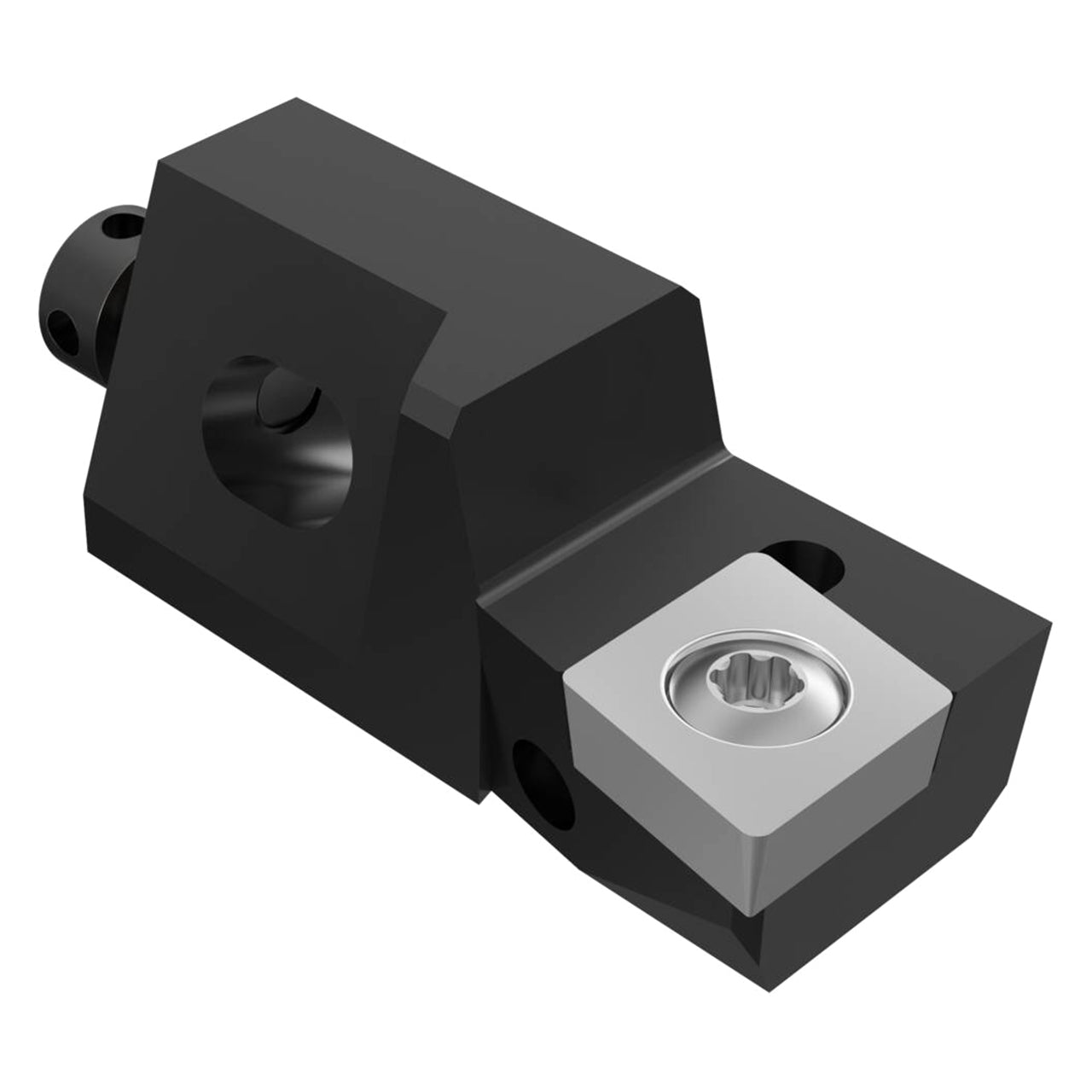

| Product Type | Indexable Turning Cartridge |
