Product Specifications
| Manufacturer Part Number | 75011687 |
| Minimum Cutting Diameter Internal (mm) | 17.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Functional Length (mm) | 200.00mm |
| Head Length (mm) | 27.00mm |
| Functional Width (mm) | 9.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 98.84 Degree |
| Inclination Angle (Degree) | -11 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

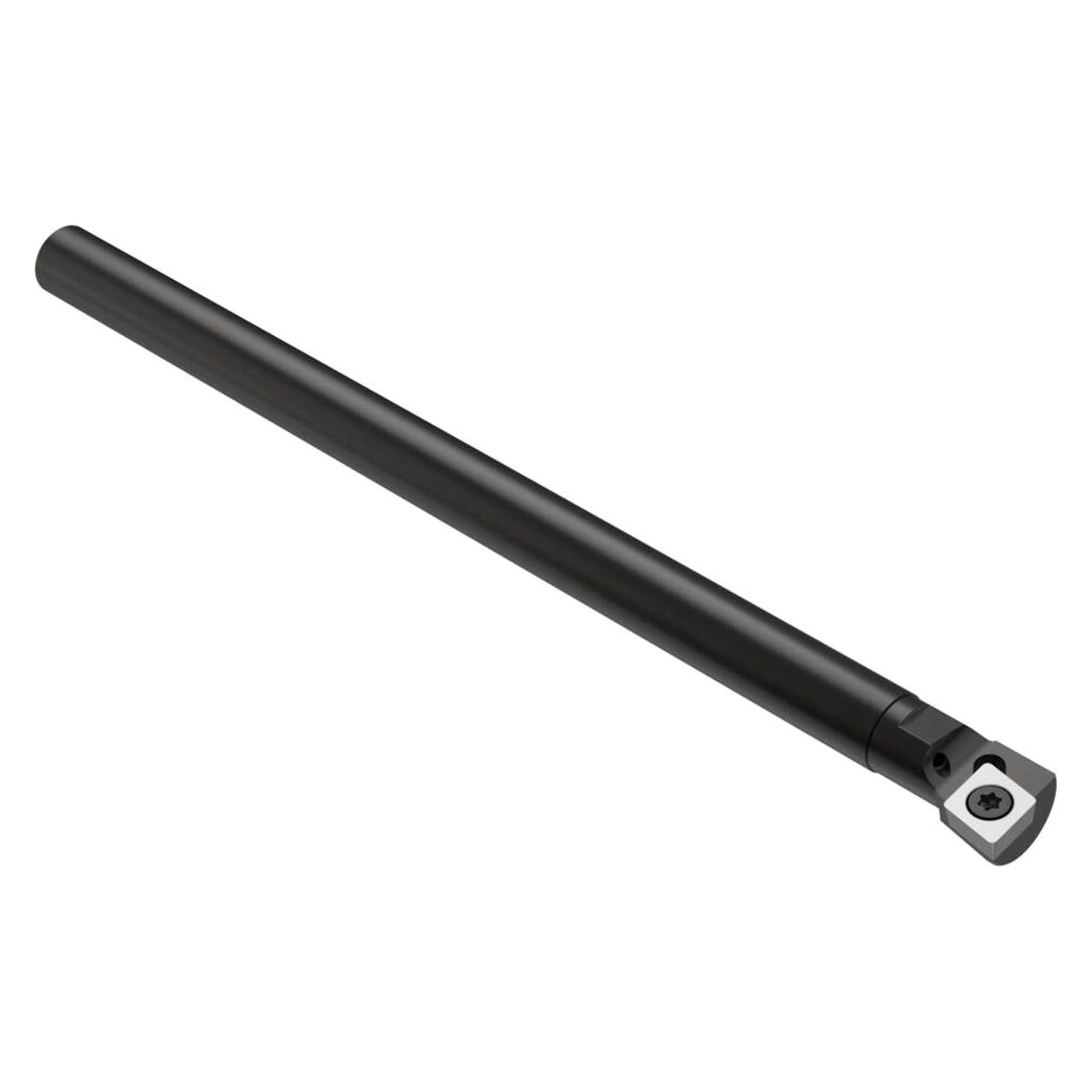

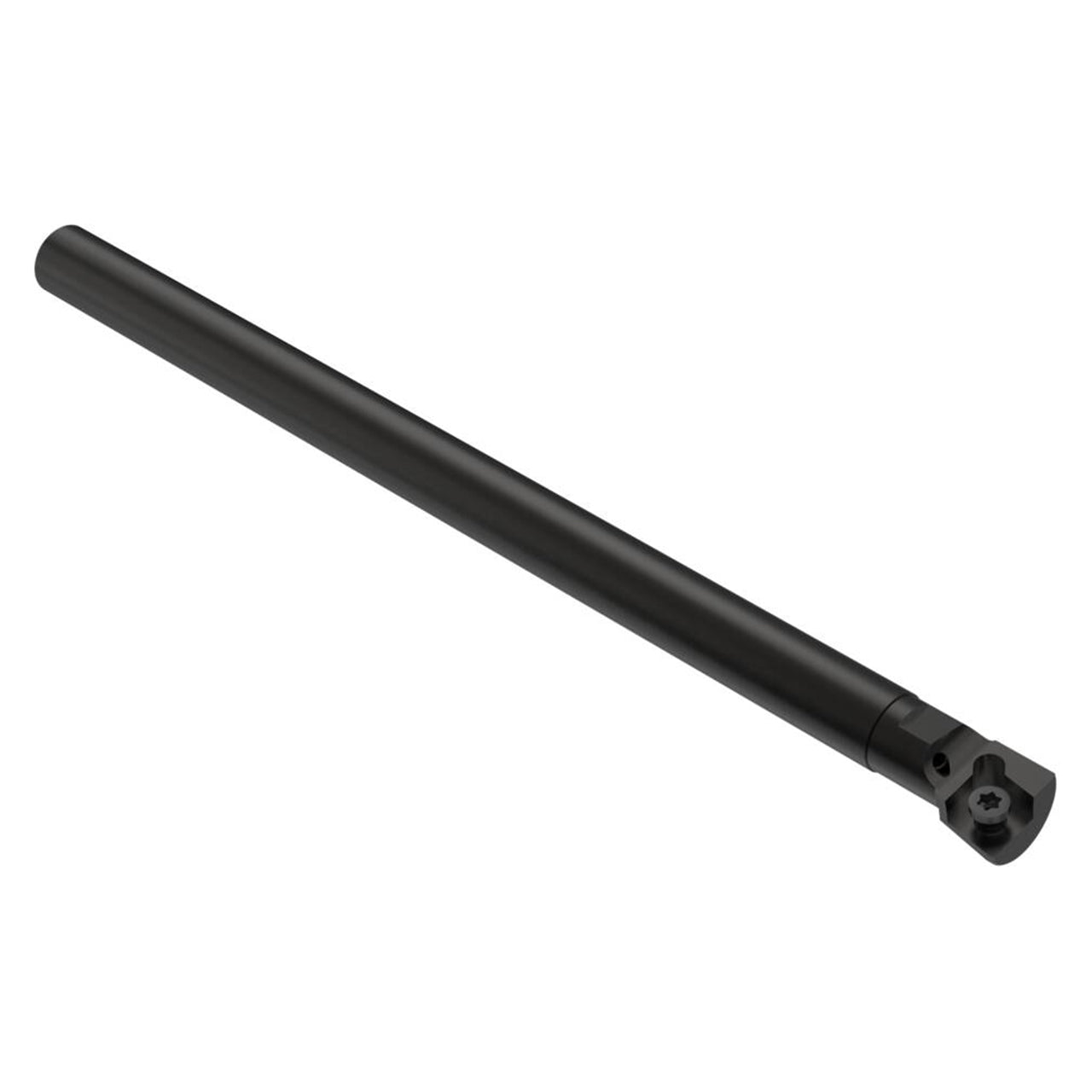

| Product Type | Indexable Boring Bar |
