Product Specifications
| Manufacturer Part Number | 75011685 |
| Minimum Cutting Diameter Internal (mm) | 22.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Functional Length (mm) | 230.00mm |
| Head Length (mm) | 34.00mm |
| Functional Width (mm) | 11.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 98.84 Degree |
| Inclination Angle (Degree) | -5 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

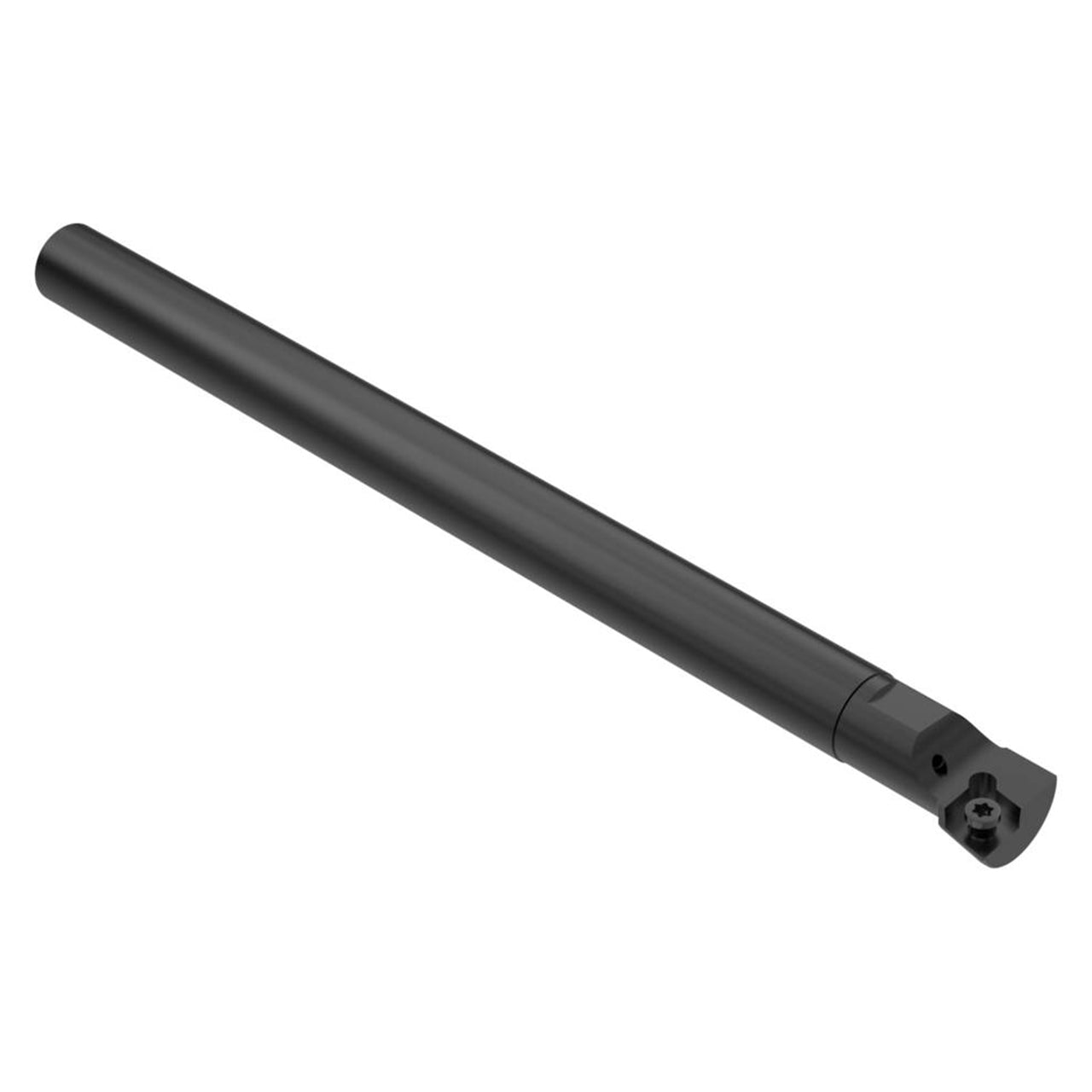

| Product Type | Indexable Boring Bar |
