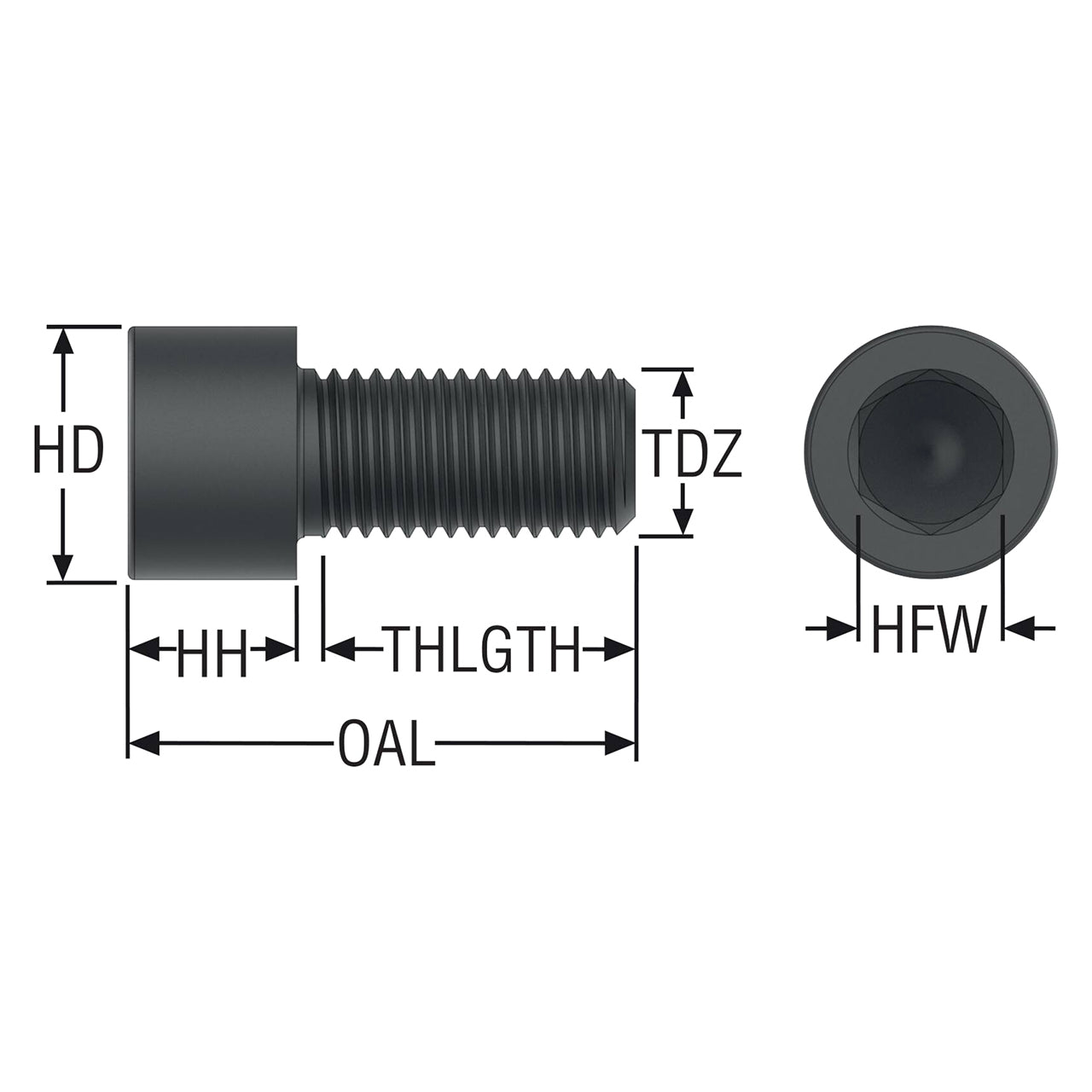

Product Specifications
| Manufacturer Part Number | 75010684 |
| Head Diameter (Decimal Inch) | 0.709" |
| Head Diameter (mm) | 18.00mm |
| Thread Diameter Size | M12 |
| Head Height (Decimal Inch) | 0.472" |
| Head Height (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 1.850" |
| Overall Length (mm) | 47.00mm |
| Torque (Nm) | 60Nm |
| Thread Length (Decimal Inch) | 1.378 |
| Thread Length (mm) | 35.0 |
| Product Type | Hex Socket Cap Screw |
