Product Specifications

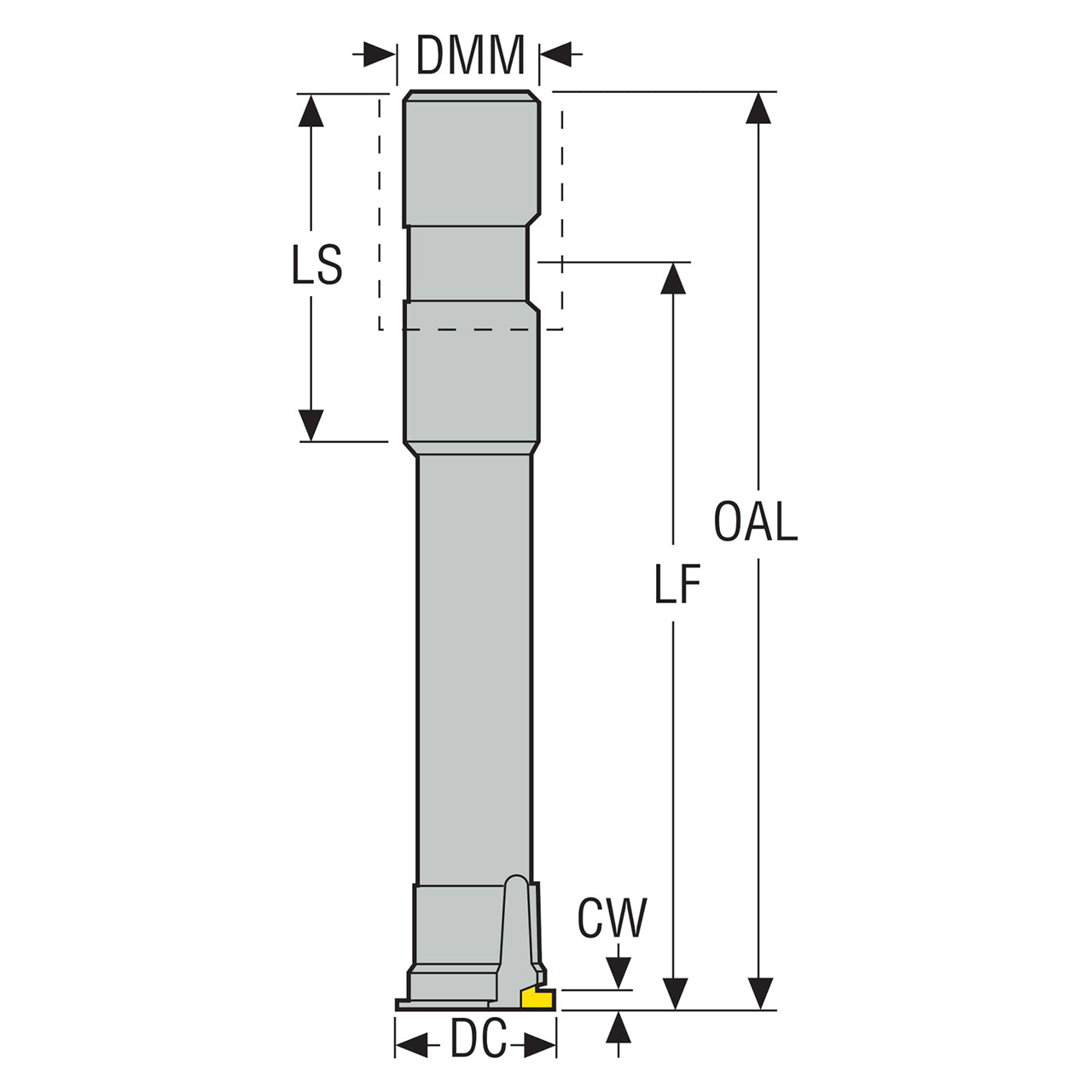

| Manufacturer Part Number | 75002642 |
| Cutting Diameter (mm) | 24.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (mm) | 105.05mm |
| Protruding Length (mm) | 80.00mm |
| Shank Length (mm) | 50.00mm |
| Overall Length (mm) | 130.00mm |
| Maximum Depth of Cut (mm) | 2.65mm |
| Maximum Cutting Depth (mm) | 2.20mm |
| Cutting Width (mm) | 2.65mm |
| Minimum Cutting Width (mm) | 1.10mm |
| Maximum Cutting Width (mm) | 2.65mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -9 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 28200 rpm |
| Shank Type | Weldon |
| Product Type | Indexable Square-Shoulder End Mil |
