Product Specifications
| Manufacturer Part Number | 74068306 |

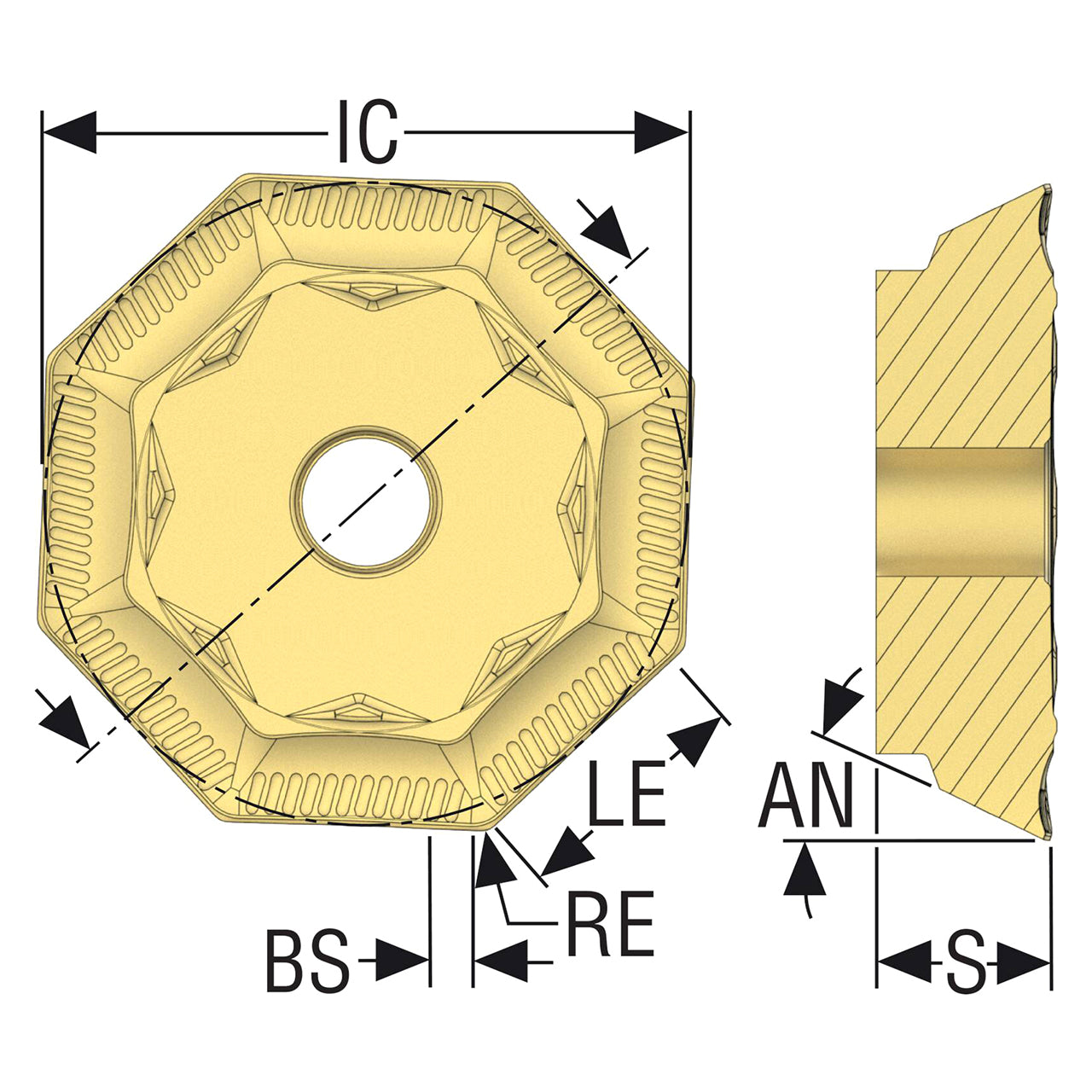

| Inscribed Circle Diameter (Decimal Inch) | 0.706" |
| Inscribed Circle Diameter (mm) | 17.94mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.276" |
| Cutting Edge Effective Length (mm) | 7.00mm |
| Wiper Edge Length (Decimal Inch) | 0.055" |
| Wiper Edge Length (mm) | 1.40mm |
| Insert Thickness (Decimal Inch) | 0.180" |
| Insert Thickness (mm) | 4.56mm |
| Clearance Angle Major (Degree) | 26 Degree |
| Cutting Edge Count | 8 |
| Cutting Geometry Type | E |
| Cutting Geometry Type Technical | E07 |
| Insert Size And Shape | OFER0704 |
| Insert Rake Angle (Degree) | 20 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | O |

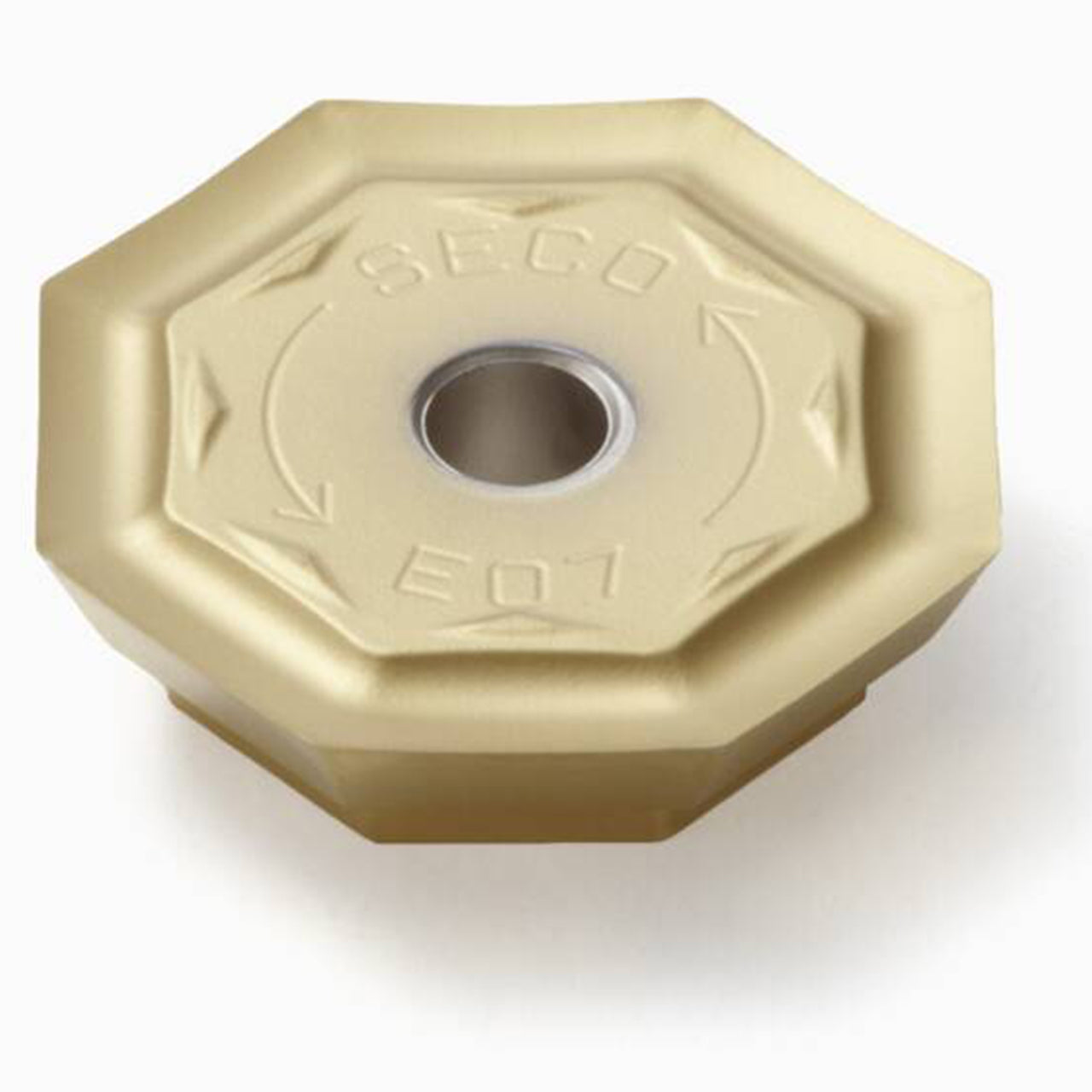

| Product Type | Face Milling Insert |
