Product Specifications
| Manufacturer Part Number | 74066081 |

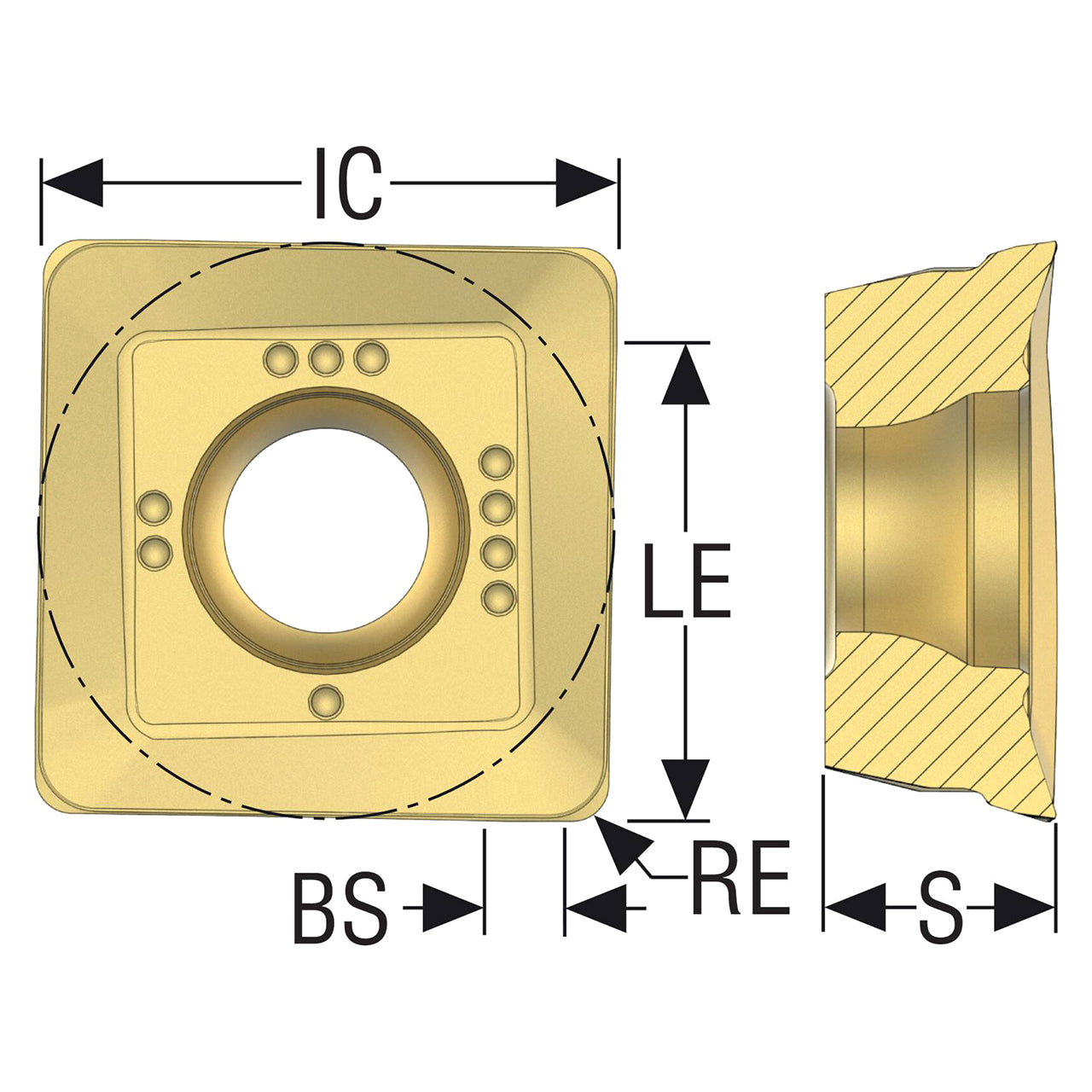

| Inscribed Circle Diameter (Decimal Inch) | 0.376" |
| Inscribed Circle Diameter (mm) | 9.55mm |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.315" |
| Cutting Edge Effective Length (mm) | 8.00mm |
| Wiper Edge Length (Decimal Inch) | 0.051" |
| Wiper Edge Length (mm) | 1.30mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.376" |
| Theoretical Cutting Edge Length (mm) | 9.55mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME06 |
| Insert Size And Shape | SONX09T3 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 22 Degree |
| Material | Carbide |
| Insert Hand | Right Hand |

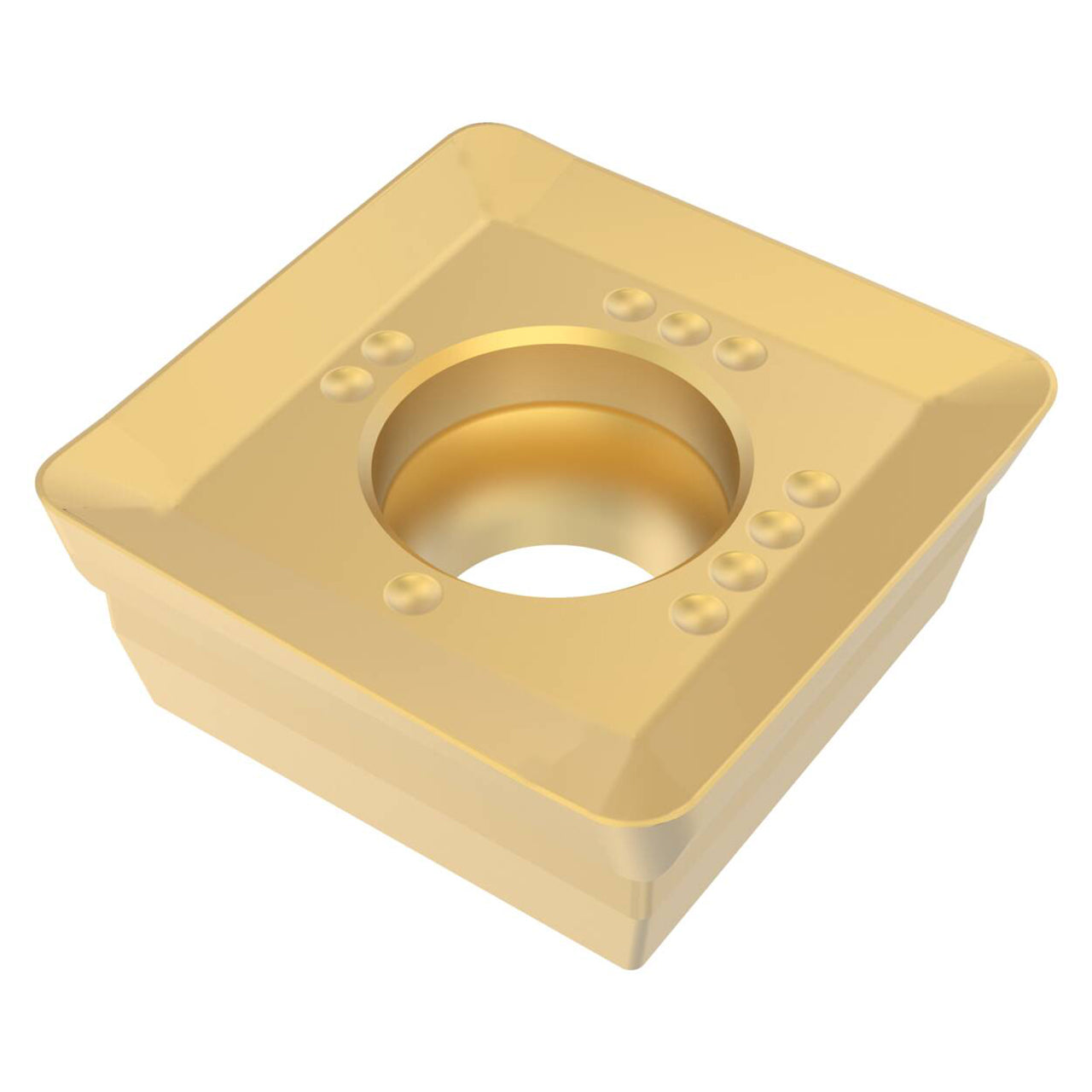

| Product Type | Face Milling Insert |
