Product Specifications
| Manufacturer Part Number | 74027539 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Corner Radius (Decimal Inch) | 0.013" |
| Corner Radius (mm) | 0.34mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.650" |
| Theoretical Cutting Edge Length (mm) | 16.50mm |
| Insert Thickness (Decimal Inch) | 0.137" |
| Insert Thickness (mm) | 3.47mm |
| Minimum Thread Pitch (Decimal Inch) | 0.0984 |
| Minimum Thread Pitch (mm) | 2.5 |
| Maximum Thread Pitch (Decimal Inch) | 0.0984 |
| Maximum Thread Pitch (mm) | 2.5 |
| Cutting Edge Count | 3 |
| Insert Hand | Right Hand |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |

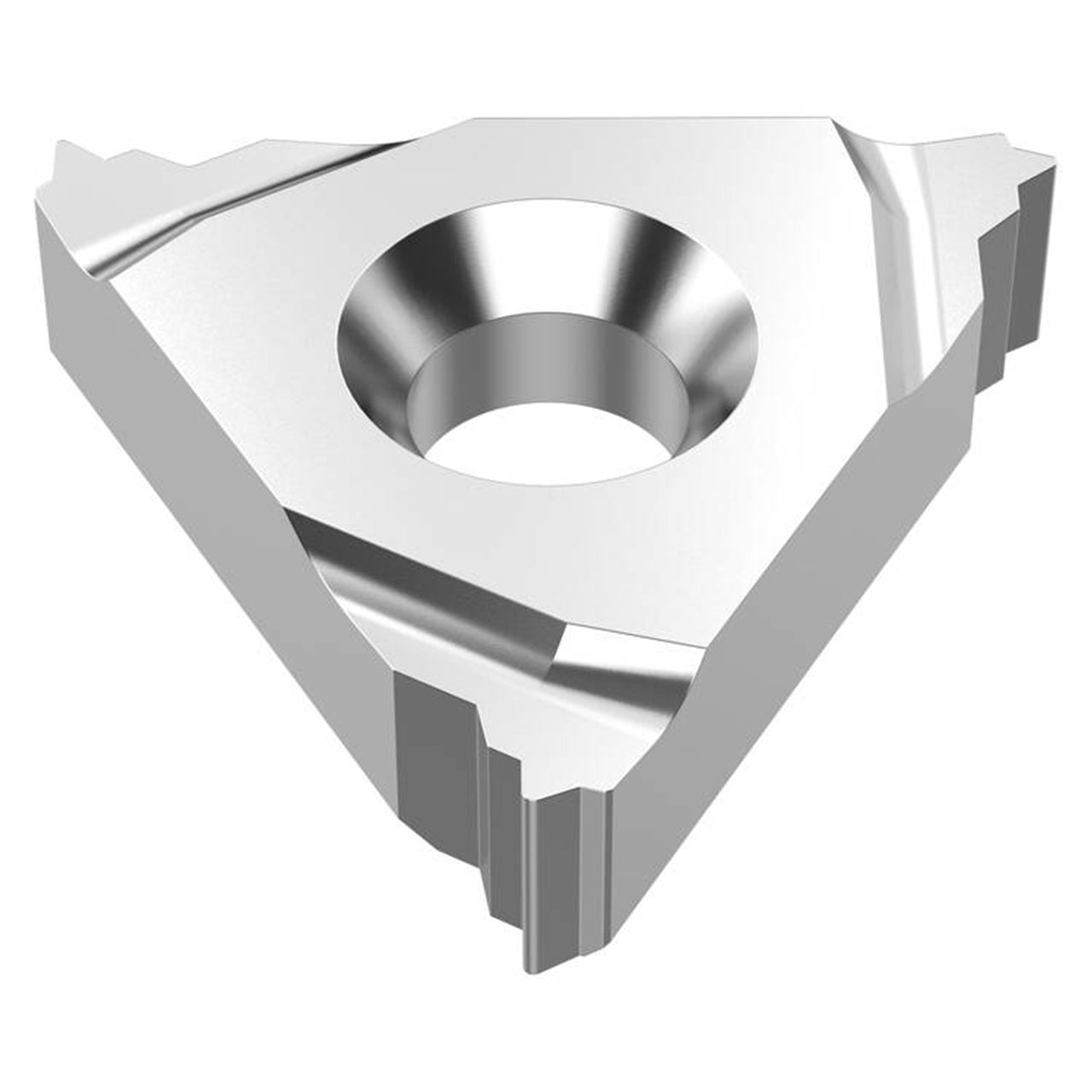

| Product Type | Laydown Threading Insert |
