Product Specifications
| Manufacturer Part Number | 74016731 |

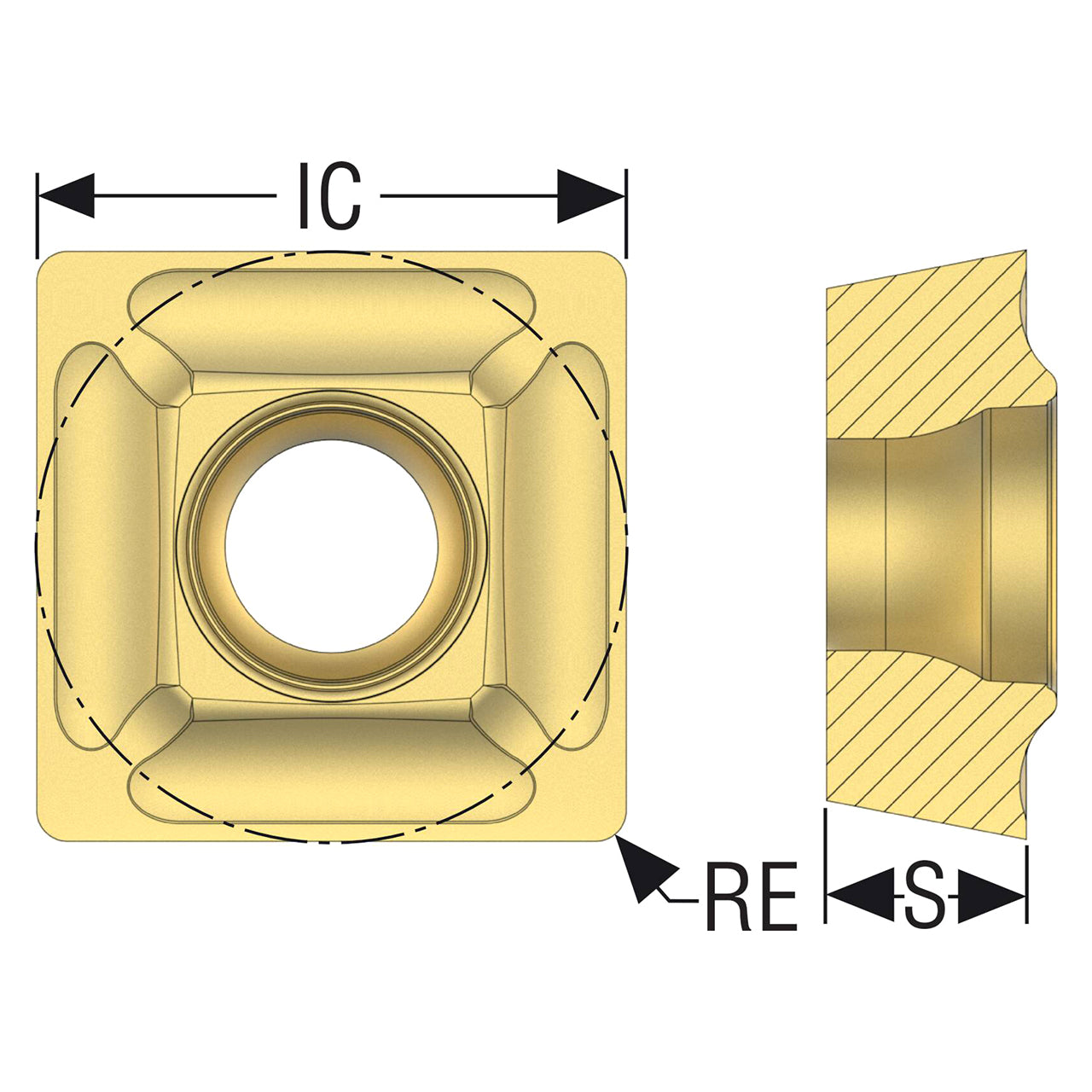

| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.375" |
| Theoretical Cutting Edge Length (mm) | 9.53mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 4 |
| Insert Size And Shape | SPMX0903 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 16 Degree |
| Material | Carbide |
| Insert Shape Code | S |

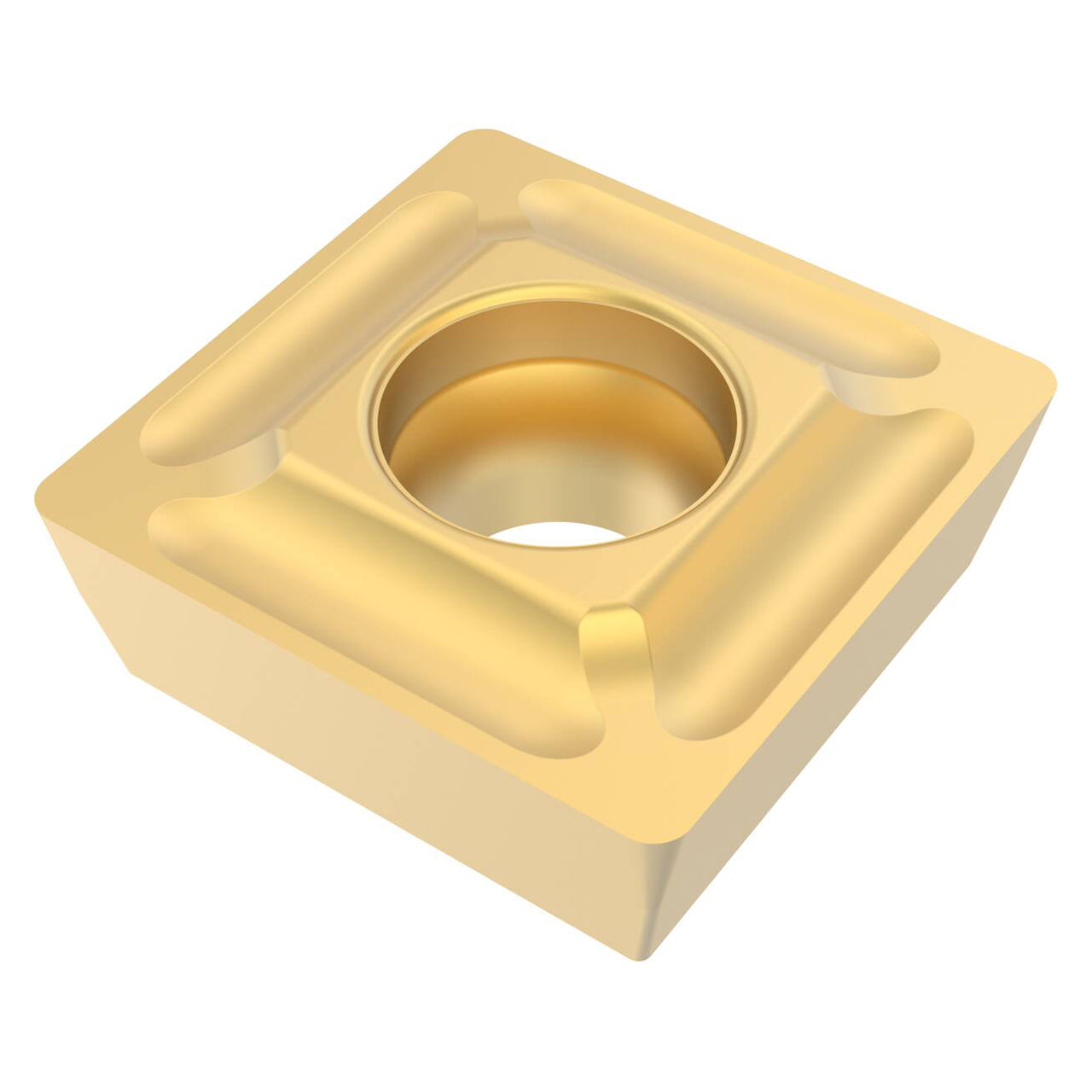

| Product Type | Milling Insert |
