Product Specifications
| Manufacturer Part Number | 74015900 |

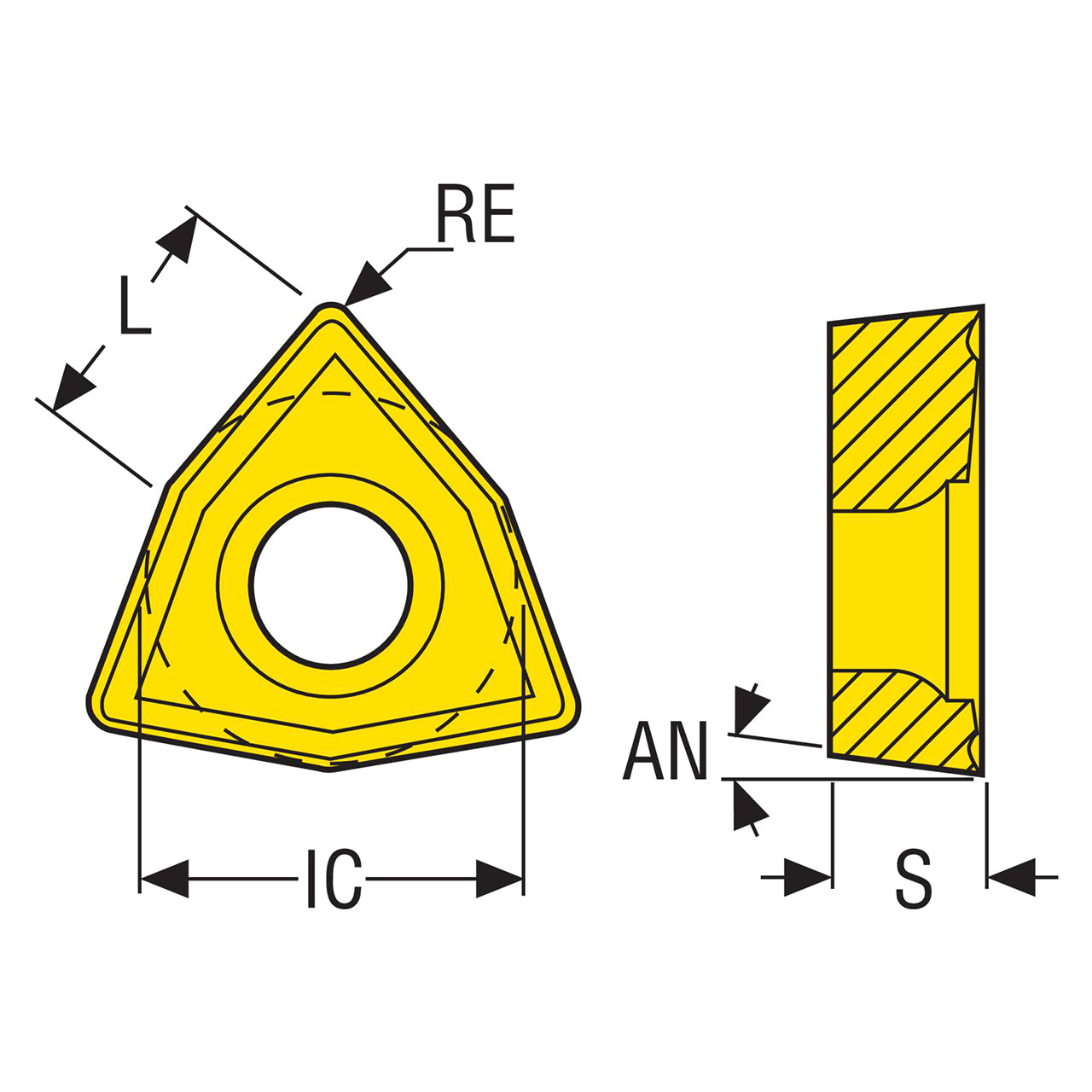

| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.242" |
| Theoretical Cutting Edge Length (mm) | 6.14mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 3 |
| Cutting Geometry Type Technical | 86 |
| Insert Included Angle (Degree) | 80 Degree |
| Material | Carbide |

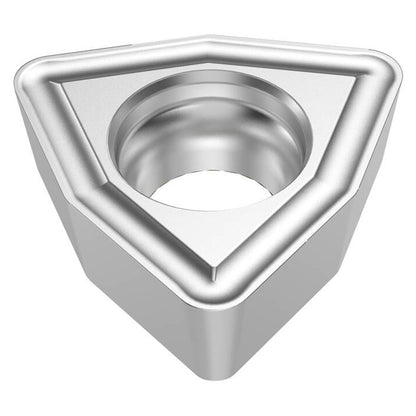

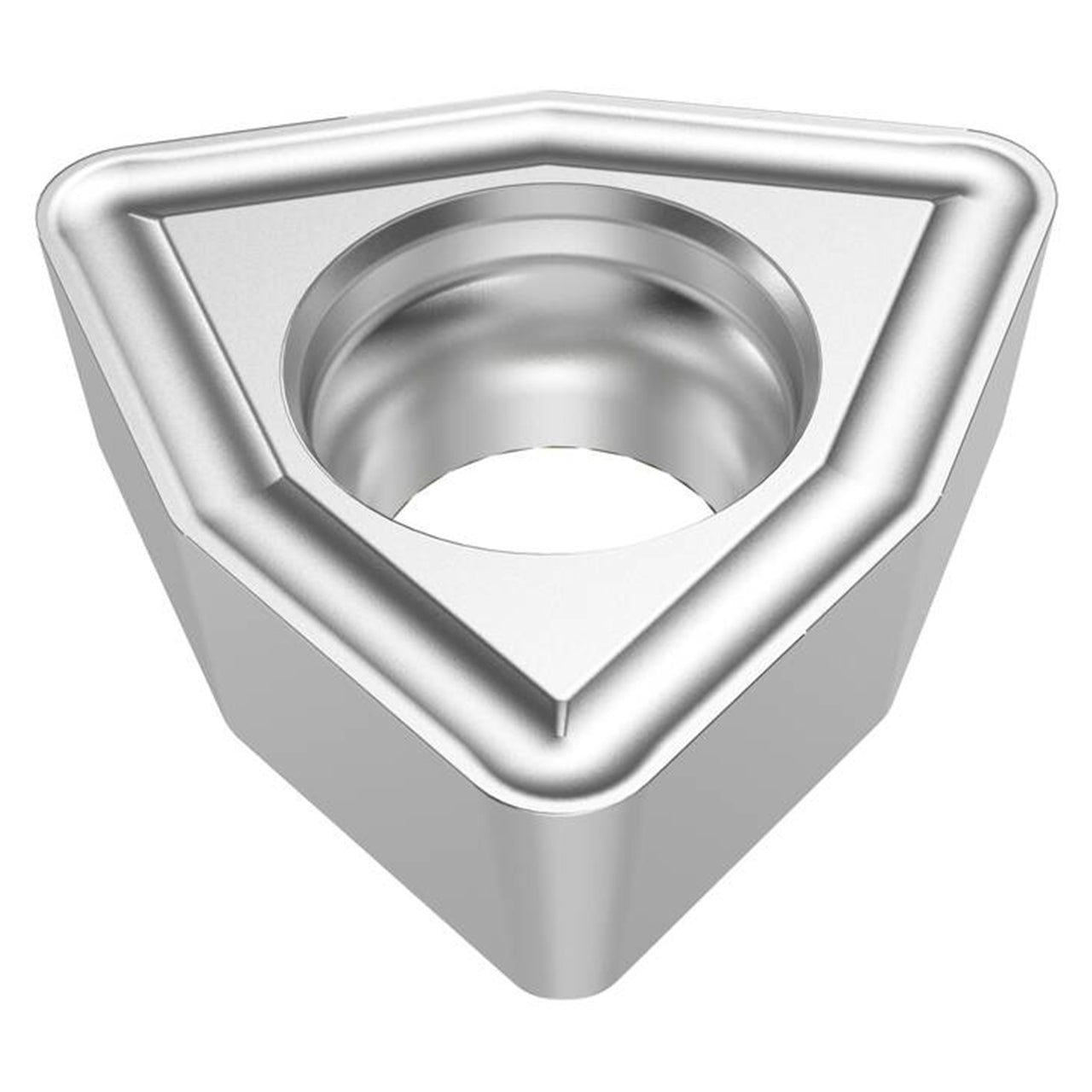

| Product Type | Indexable Drill Insert |
