Product Specifications
| Manufacturer Part Number | 74015255 |

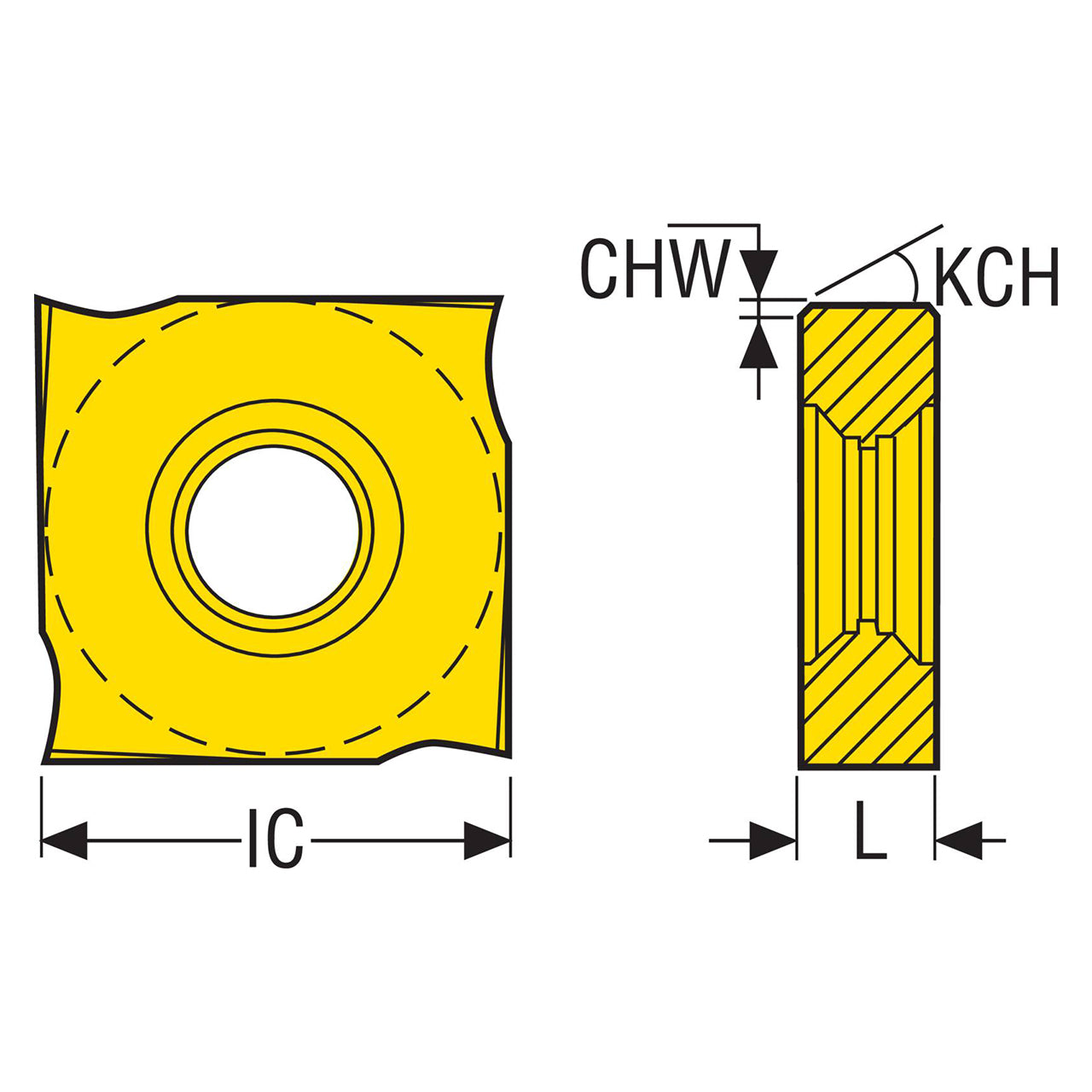

| Inscribed Circle Diameter (Decimal Inch) | 0.433" |
| Inscribed Circle Diameter (mm) | 11.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.004" |
| Corner Chamfer Width (mm) | 0.10mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.106" |
| Theoretical Cutting Edge Length (mm) | 2.70mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD09 |
| Insert Size And Shape | 335.19-1103 |
| Insert Rake Angle (Degree) | 15 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Corner Chamfer Angle (Degree) | 45 Degree |

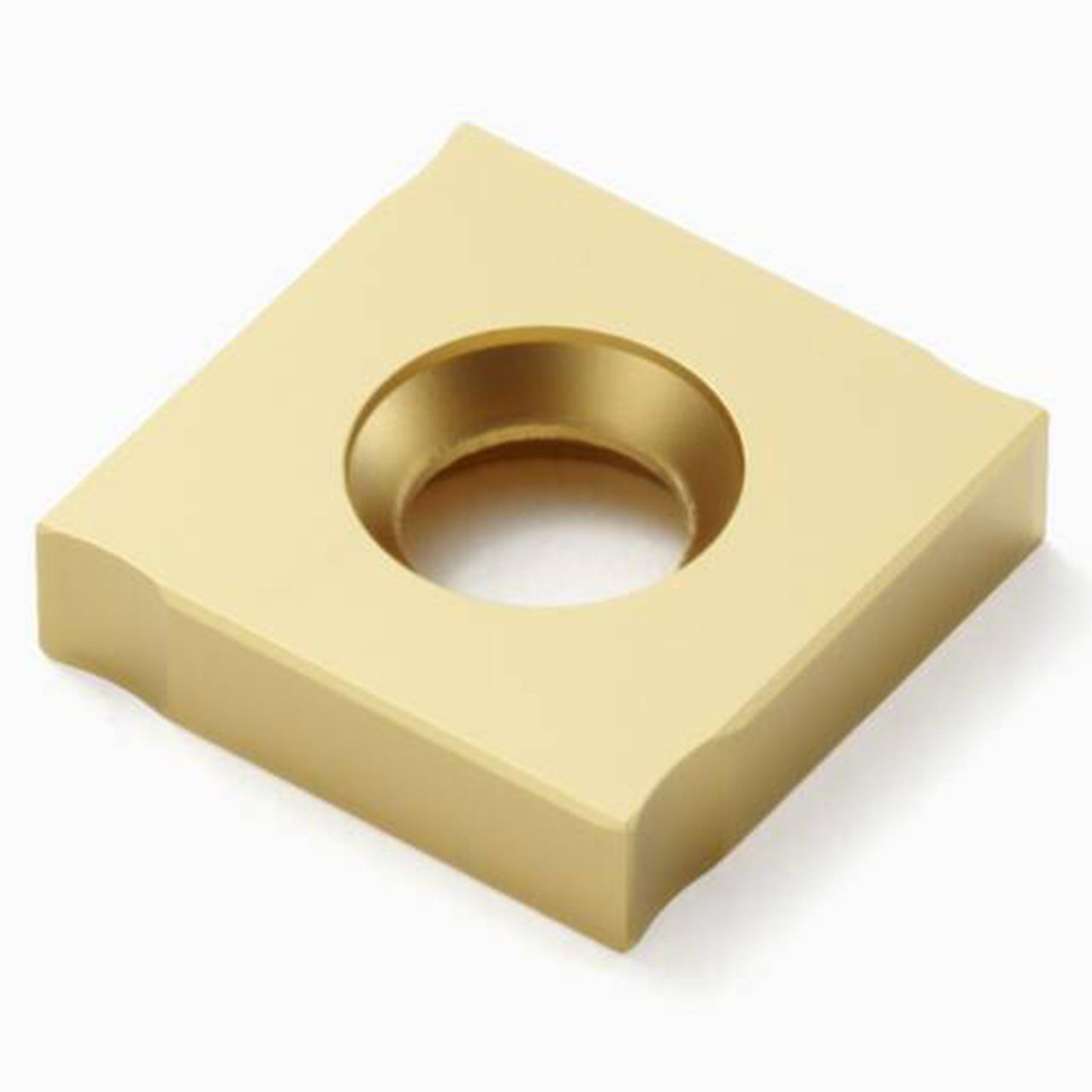

| Product Type | Disc Milling Insert |
