Product Specifications
| Manufacturer Part Number | 74010758 |

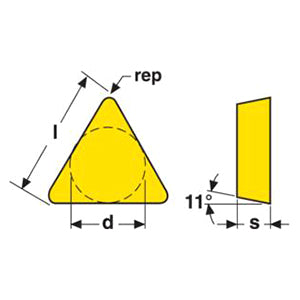

| Inscribed Circle Diameter (Decimal Inch) | 0.250" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.433" |
| Theoretical Cutting Edge Length (mm) | 11.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.417" |
| Cutting Edge Effective Length (mm) | 10.60mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 3 |
| Insert Size And Shape | TP1103 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Insert Shape Code | T |
| Insert Seat Size Code | 11 |

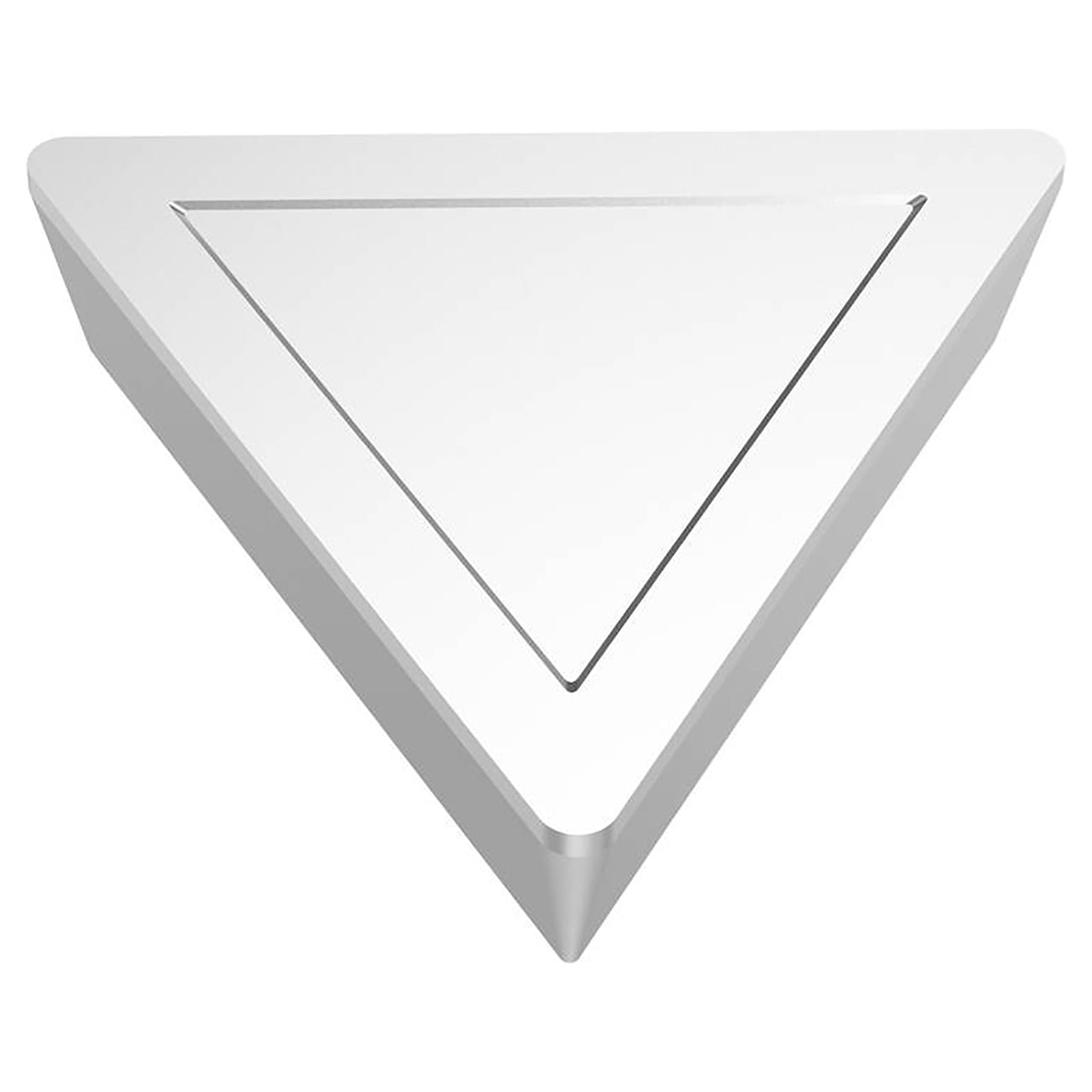

| Product Type | Triangle Insert |
