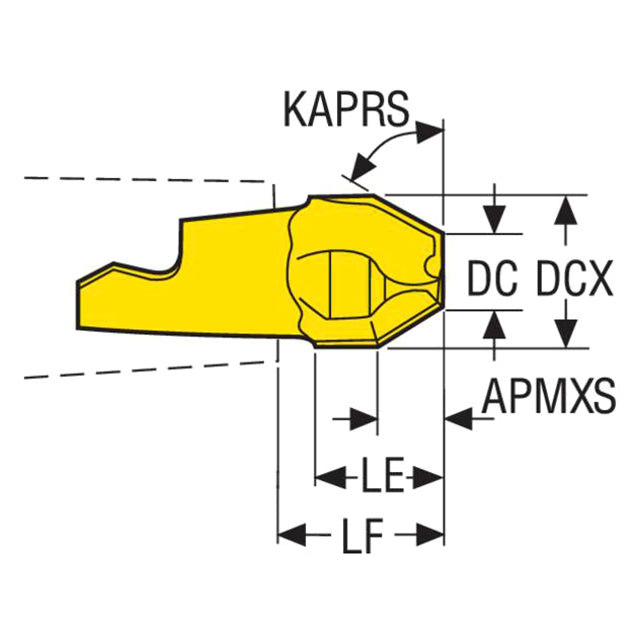

Product Specifications
| Manufacturer Part Number | 74004993 |
| Cutting Diameter (Decimal Inch) | 0.206" |
| Cutting Diameter (mm) | 5.24mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.394" |
| Maximum Cutting Diameter (mm) | 10.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.317" |
| Cutting Edge Effective Length (mm) | 8.05mm |
| Functional Length (Decimal Inch) | 0.378" |
| Functional Length (mm) | 9.60mm |
| Point Length (Decimal Inch) | 0.165" |
| Point Length (mm) | 4.20mm |
| Corner Chamfer Width (Decimal Inch) | 0.095" |
| Corner Chamfer Width (mm) | 2.40mm |
| Maximum Depth of Cut (Decimal Inch) | 0.158" |
| Maximum Depth of Cut (mm) | 4.00mm |
| Corner Radius (Decimal Inch) | 0.012" |
| Corner Radius (mm) | 0.30mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Corner Chamfer Angle (Degree) | 60 Degree |
| Rake Radial Angle (Degree) | 16 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Chamfer Milling Tip Insert |
