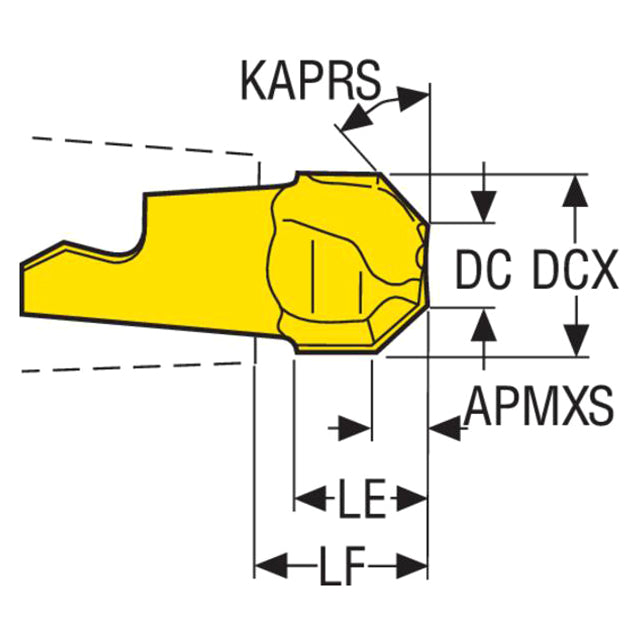

Product Specifications
| Manufacturer Part Number | 74004992 |
| Cutting Diameter (Decimal Inch) | 0.303" |
| Cutting Diameter (mm) | 7.69mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.630" |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.429" |
| Cutting Edge Effective Length (mm) | 10.90mm |
| Functional Length (Decimal Inch) | 0.522" |
| Functional Length (mm) | 13.25mm |
| Point Length (Decimal Inch) | 0.154" |
| Point Length (mm) | 3.90mm |
| Corner Chamfer Width (Decimal Inch) | 0.161" |
| Corner Chamfer Width (mm) | 4.10mm |
| Maximum Depth of Cut (Decimal Inch) | 0.154" |
| Maximum Depth of Cut (mm) | 3.90mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | 4 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Chamfer Milling Tip Insert |
