Product Specifications
| Manufacturer Part Number | 10343898 |
| Maximum Depth of cut in Feed Direction Side (mm) | 12.00mm |
| Cutting Diameter (mm) | 0.80mm |
| Contact Surface Machine Side Diameter (mm) | 15.50mm |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Functional length (mm) | 26.40mm |
| Overall Length (mm) | 43.40mm |
| Wrench Size (mm) | 12.00mm |
| Torque (N/m) | 30.00 Nm |
| Coolant Supply Property | Yes |
| Series | XS5021 |
| Number of Flutes | 2 |
| Grade | SIRA |
| Pheripheral Cutting Edge Count | 2 |
| Center Cutting | Yes |
| Point Angle (Degree) | 90 Degree |
| Coating | SIRON-A |

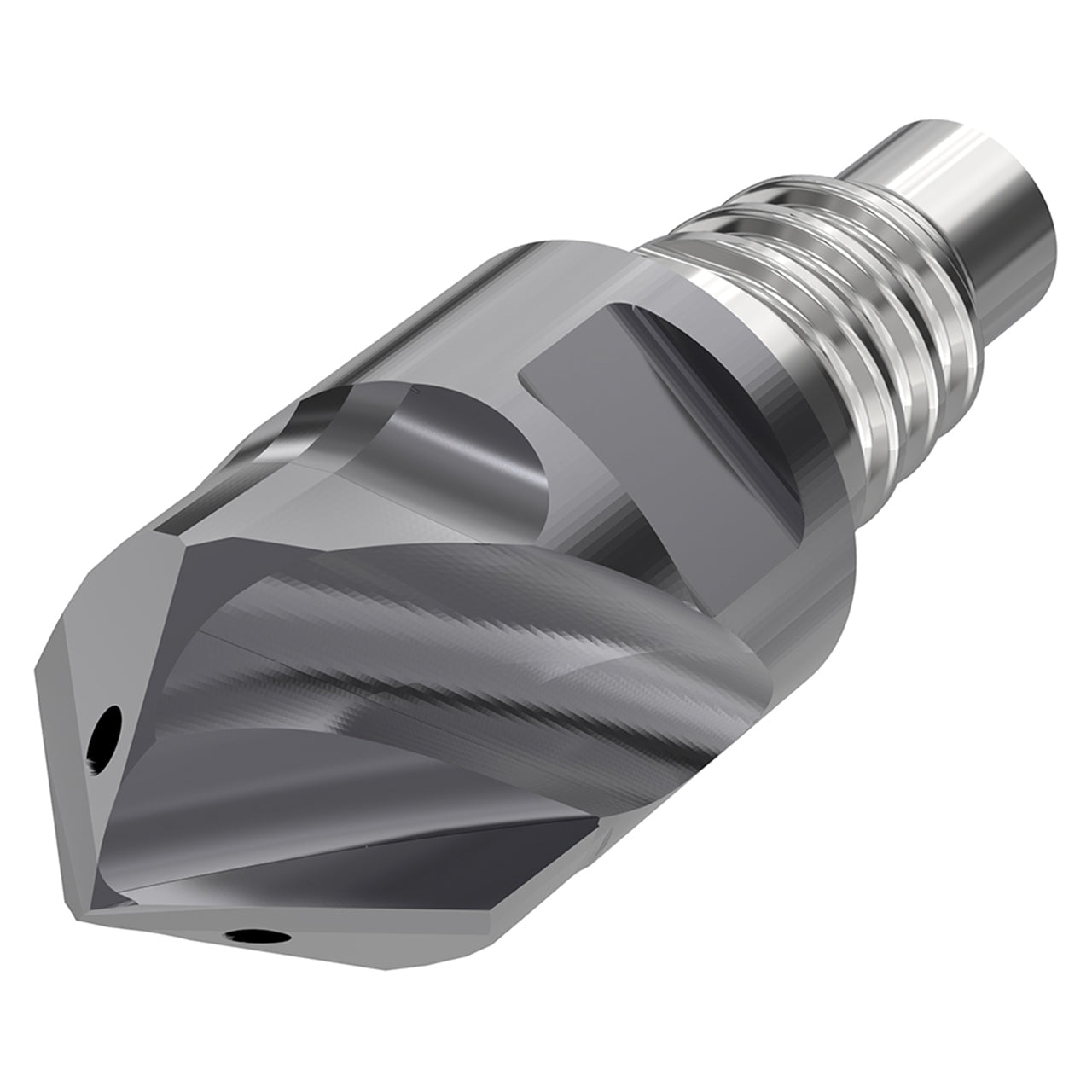

| Product Type | Center Drill Milling Tip Insert |
