Product Specifications
| Manufacturer Part Number | 10334248 |
| Workpiece Side Contact Surface Diameter (Decimal Inch) | 0.362" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Functional length (Decimal Inch) | 0.839" |
| Overall Length (Decimal Inch) | 3.000" |
| Maximum Rotational Speed (RPM) | 40000 RPM |
| Torque (N/m) | 12.00 Nm |
| Workpiece Side Connection Size code | E10 |
| Shank Type | Cylindrical |

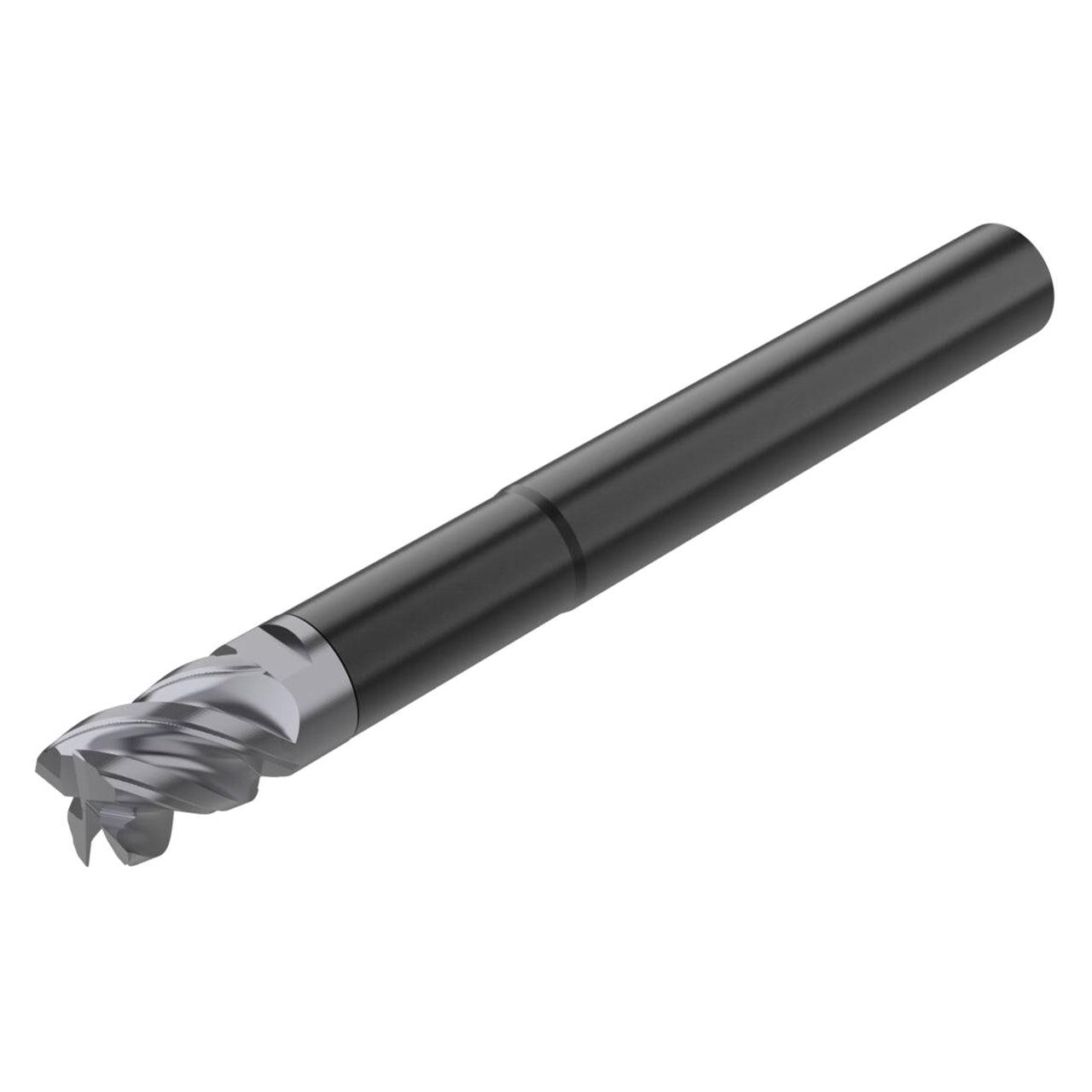

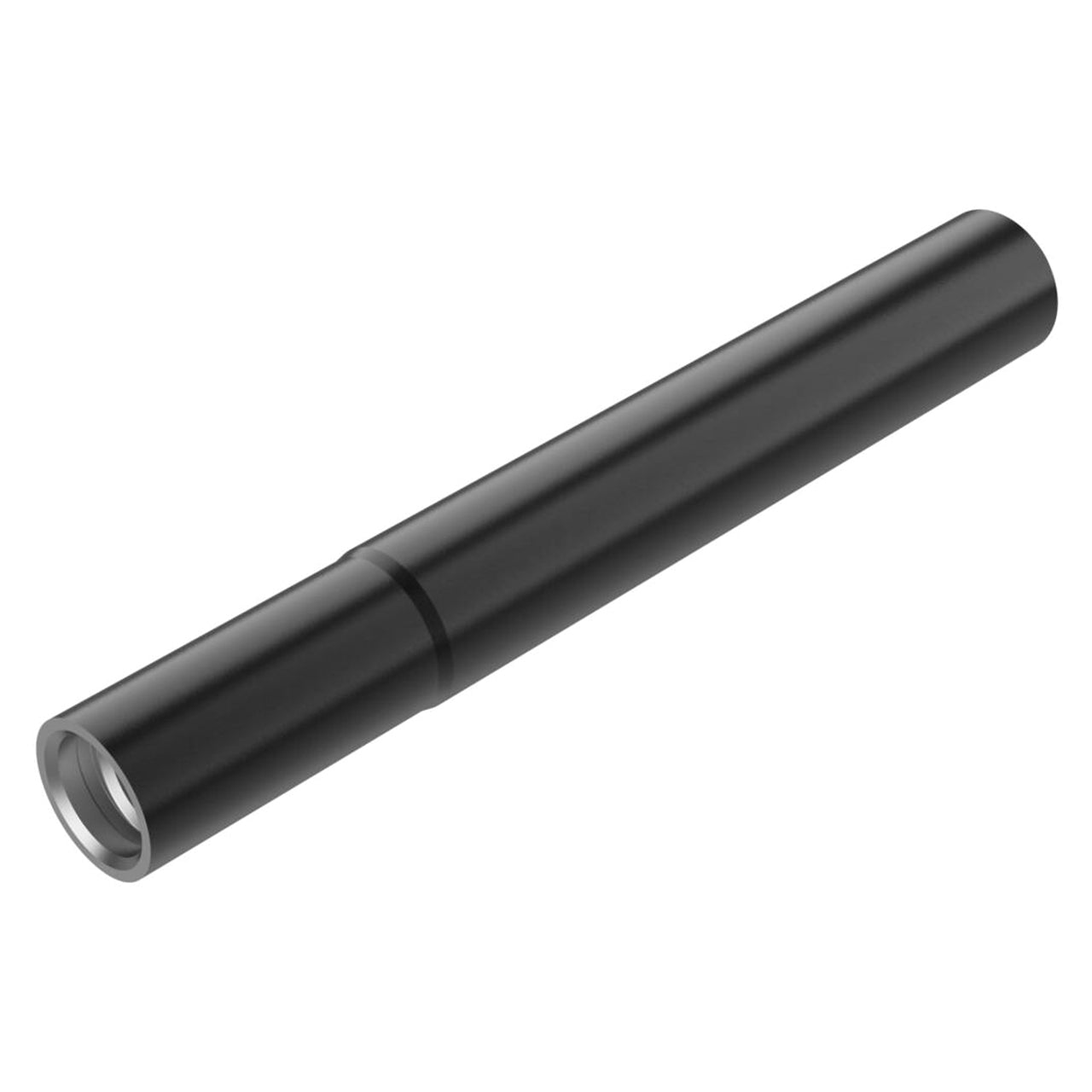

| Product Type | Milling Tip Holder & Shank |
