Product Specifications
| Manufacturer Part Number | 10318916 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 1.000" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Neck Diameter (Decimal Inch) | 0.473" |
| Neck Length (Decimal Inch) | 2.500" |
| Overall Length (Decimal Inch) | 4.500" |
| Corner Radius (Decimal Inch) | 0.030" |
| Coolant Supply Property | Yes |
| Series | S4931 |
| Number of Flutes | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Shank Type | Cylindrical |
| Helix Angle (Degree) | 37.50 Degree |
| Coating | AXT |

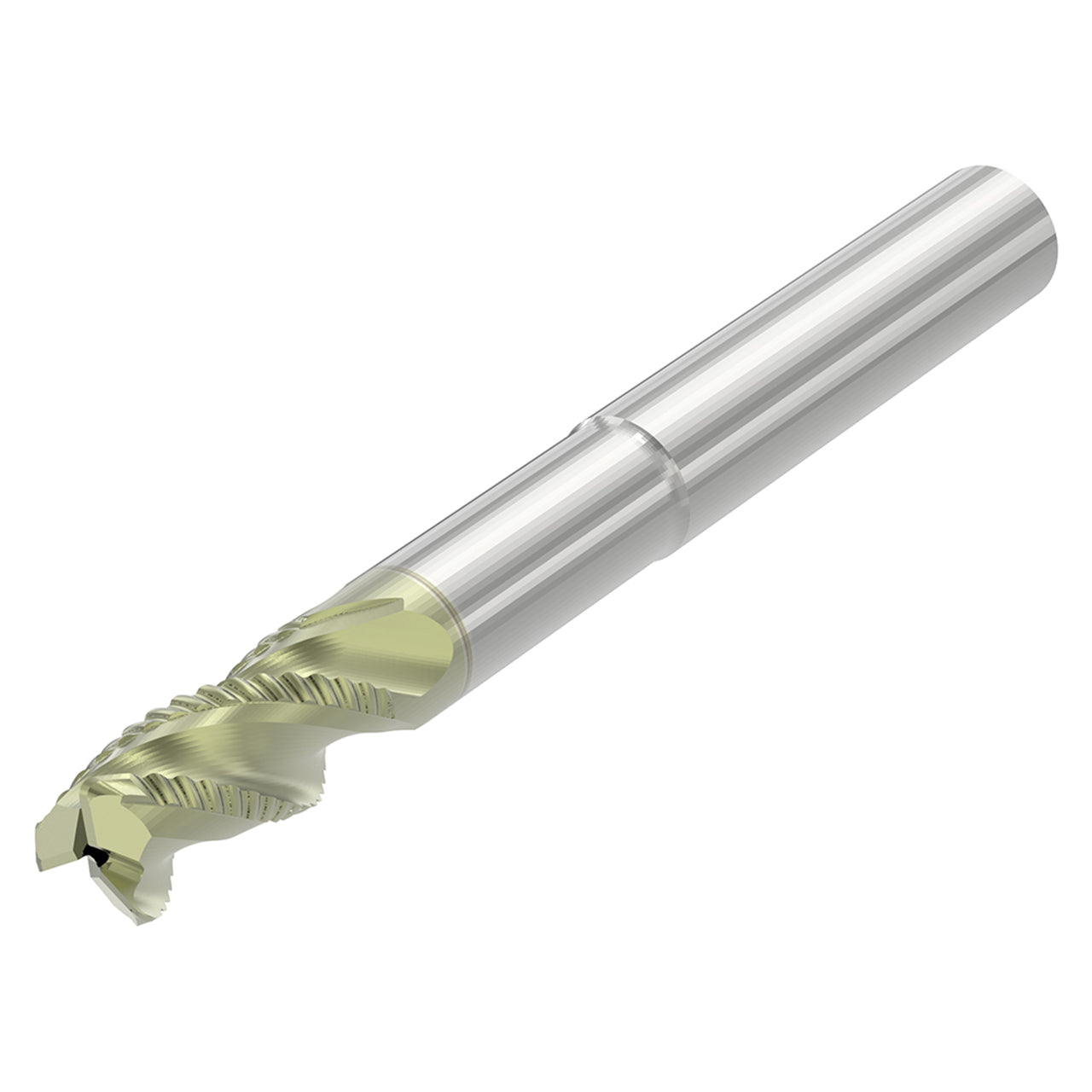

| Product Type | Corner Radius End Mill |
