Seco Tools

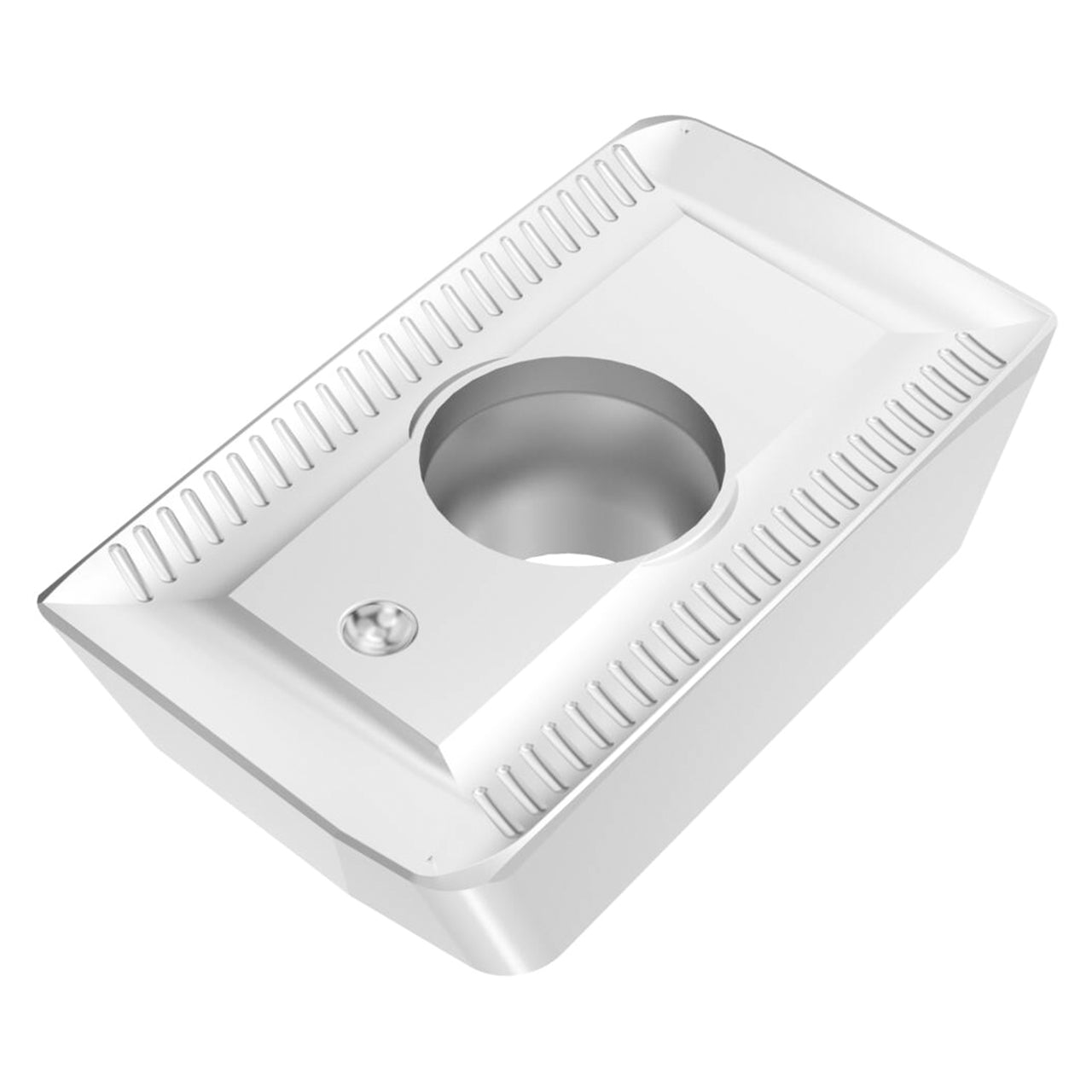

Seco Tools 10313102 | ABEX2606ZFFR-M15 0.551" Width x 0.079" Edge Length x 0.250" Thickness 0.063" Radius x 17 Degree Rake Angle 2 Cutting Edge CVD Coated MK1501 Grade Carbide Milling Insert

Seco Tools 10313102 | ABEX2606ZFFR-M15 0.551" Width x 0.079" Edge Length x 0.250" Thickness 0.063" Radius x 17 Degree Rake Angle 2 Cutting Edge CVD Coated MK1501 Grade Carbide Milling Insert

SKU: 23462613

$45.87 USD
$60.10 USD $45.87 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Product Specifications
Manufacturer Part Number 10313102
Wiper Edge Length (Decimal Inch) 0.079"
Cutting Edge Effective Length (Decimal Inch) 0.961"
Insert Width (Decimal Inch) 0.551"
Corner Radius (Decimal Inch) 0.063"
Insert Thickness (Decimal Inch) 0.250"
Insert Size and Shape ABEX2606
Cutting Edge Count 2
Cutting Geometry Type Technical M15
Grade MK1501
Grade type Carbide CVD
Insert Seat Size Code 26
Insert Hand Right Hand
Insert Rake Angle (Degree) 17 Degree
Clearance Angle (Degree) 5 Degree
Coating CVD
Material Carbide
Product Type Milling Insert
