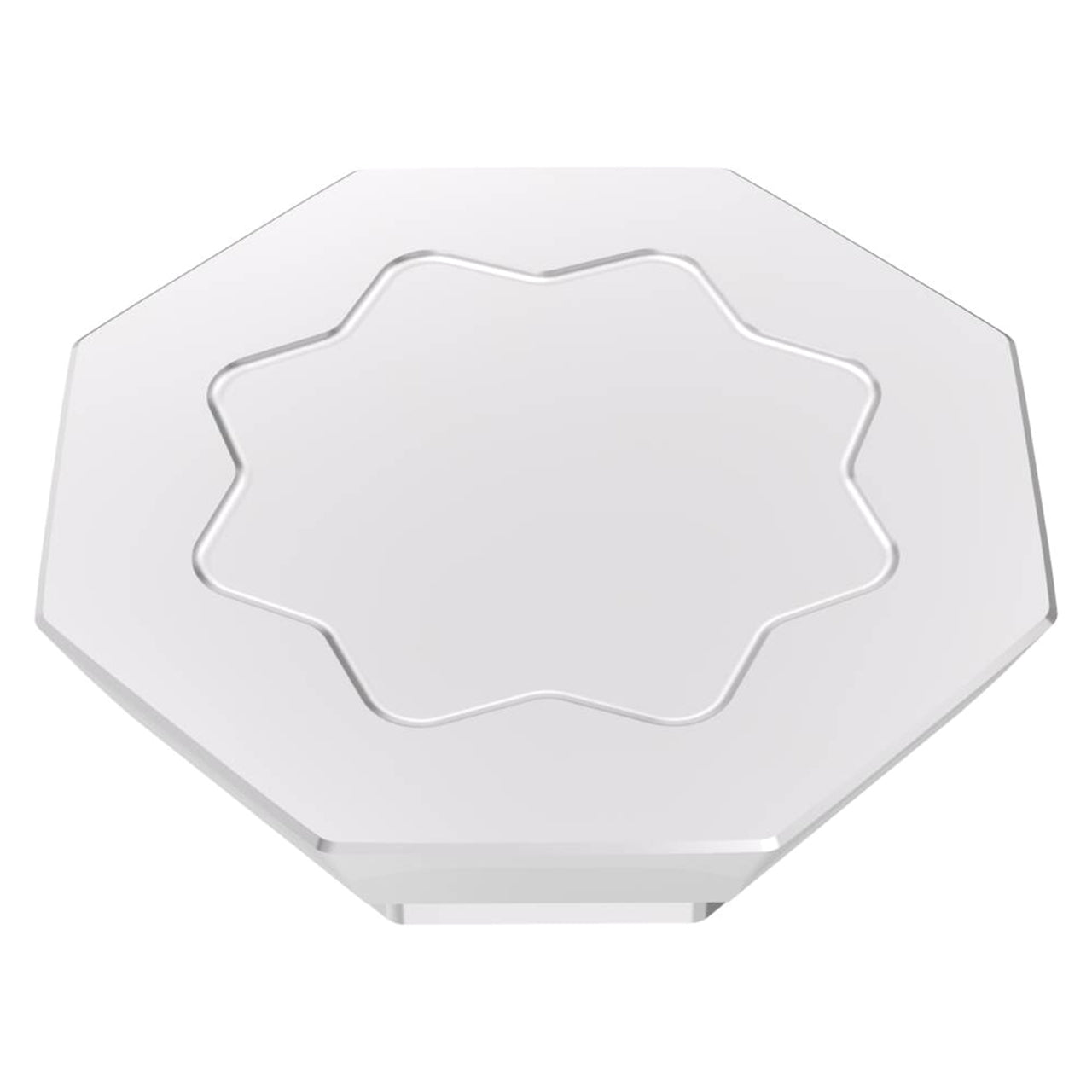

Product Specifications
| Manufacturer Part Number | 10312614 |
| Wiper Edge Length (Decimal Inch) | 0.079" |
| Inscribed Circle Diameter (Decimal Inch) | 0.707" |
| Cutting Edge Effective Length (Decimal Inch) | 0.276" |
| Corner Radius (Decimal Inch) | 0.020" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Size and Shape | OFEN0704 |
| Cutting Edge Count | 8 |
| Cutting Geometry Type Technical | D18 |
| Grade | MK1501 |
| Grade type | Carbide CVD |
| Insert Hand | Neutral |
| Clearance Angle (Degree) | 26 Degree |
| Coating | CVD |
| Material | Carbide |
| Product Type | Milling Insert |
