Product Specifications
| Manufacturer Part Number | 10312602 |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Cutting Edge Length (Decimal Inch) | 0.625" |
| Cutting Edge Effective Length (Decimal Inch) | 0.457" |
| Corner Radius (Decimal Inch) | 0.039" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Size and Shape | SEKN1504 |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M18 |
| Grade | MK1501 |
| Grade type | Carbide CVD |
| Insert Hand | Neutral |
| Clearance Angle (Degree) | 20 Degree |
| Coating | CVD |
| Material | Carbide |

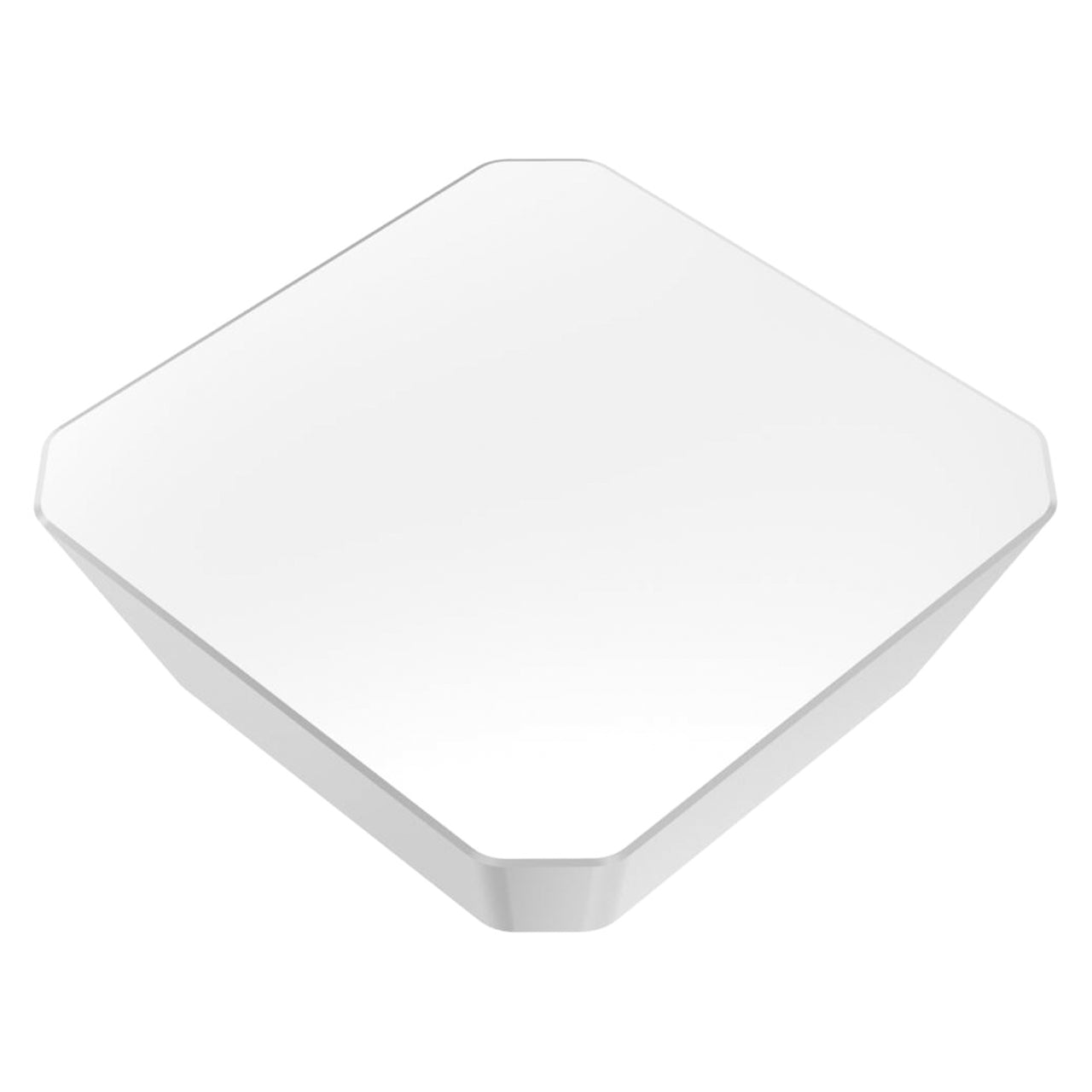

| Product Type | Milling Insert |
