Product Specifications
| Manufacturer Part Number | 10309511 |
| Machine Side Connection Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (Decimal Inch) | 0.472" |
| Functional length (Decimal Inch) | 3.917" |
| Usable Length (Decimal Inch) | 2.677" |
| Overall Length (Decimal Inch) | 4.331" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.532" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.546" |
| Tap Chamfer Length (Decimal Inch) | 0.414" |
| Thread Diameter (Decimal Inch) | 0.625" |
| Thread Diameter Size | UNC 5/8 - 11 |
| Threading Chamfer Length (Decimal Inch) | 0.414" |
| Thread Length (Decimal Inch) | 1.260" |
| Minimum Threads per Inch (TPI) | 11.00 TPI |
| Maximum Threads per Inch (TPI) | 11.00 TPI |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Connection Size Code | 12.00 x 9.00 |
| Machine Side Connection Size Code | 12.00 x 9.00 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN376 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

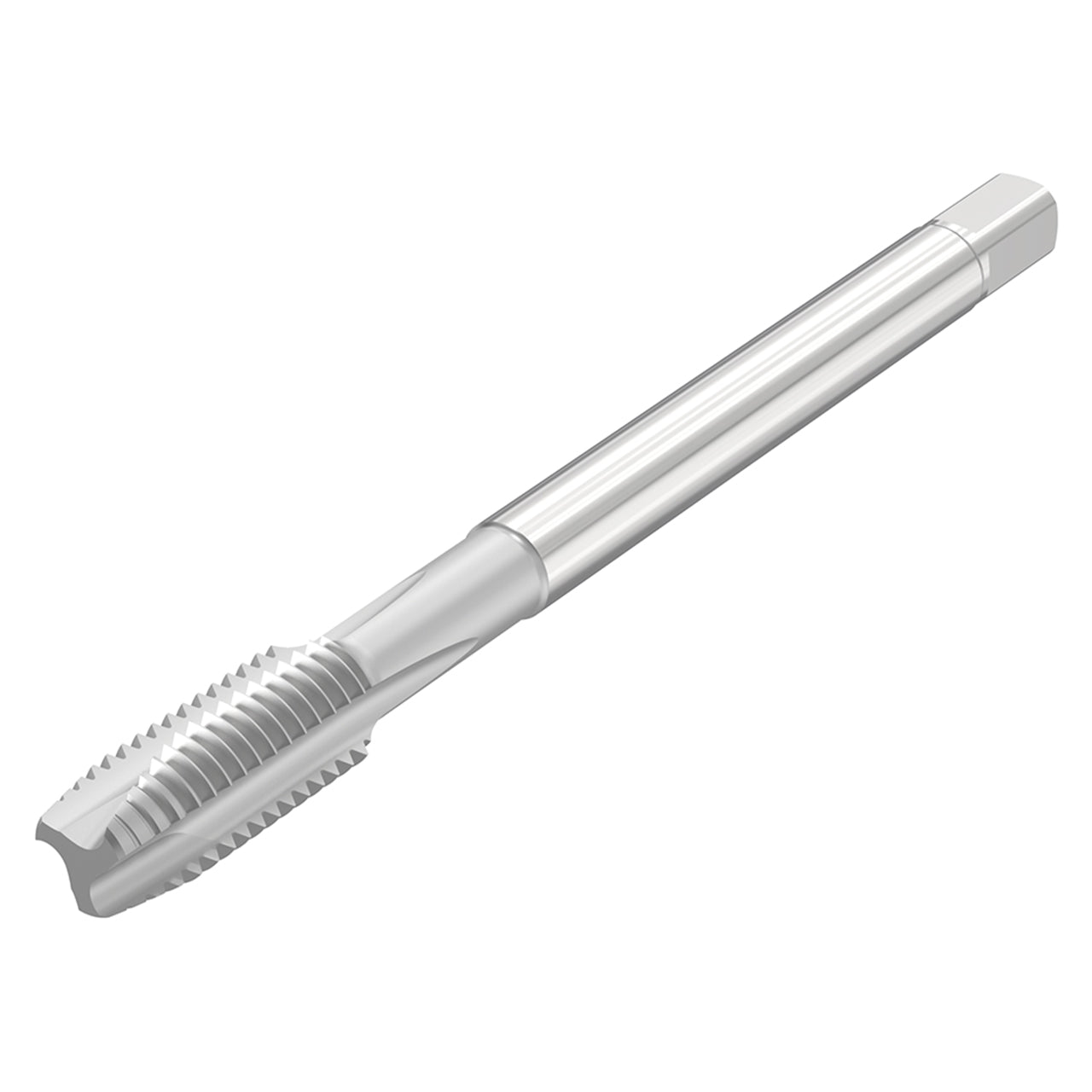

| Product Type | Spiral Point Tap |
