Product Specifications
| Manufacturer Part Number | 10309506 |
| Machine Side Connection Diameter (Decimal Inch) | 0.984" |
| Shank Diameter (Decimal Inch) | 0.984" |
| Functional length (Decimal Inch) | 5.847" |
| Usable Length (Decimal Inch) | 3.661" |
| Overall Length (Decimal Inch) | 6.299" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.211" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.218" |
| Tap Chamfer Length (Decimal Inch) | 0.452" |
| Thread Diameter (Decimal Inch) | 1.309" |
| Thread Diameter Size | G 1 |
| Threading Chamfer Length (Decimal Inch) | 0.452" |
| Thread Length (Decimal Inch) | 1.260" |
| Minimum Threads per Inch (TPI) | 11.00 TPI |
| Maximum Threads per Inch (TPI) | 11.00 TPI |
| Threading Chamfer Type | B |
| Thread Form Type | G |
| Connection Size Code | 25.00 x 20.00 |
| Machine Side Connection Size Code | 25.00 x 20.00 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN5156 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

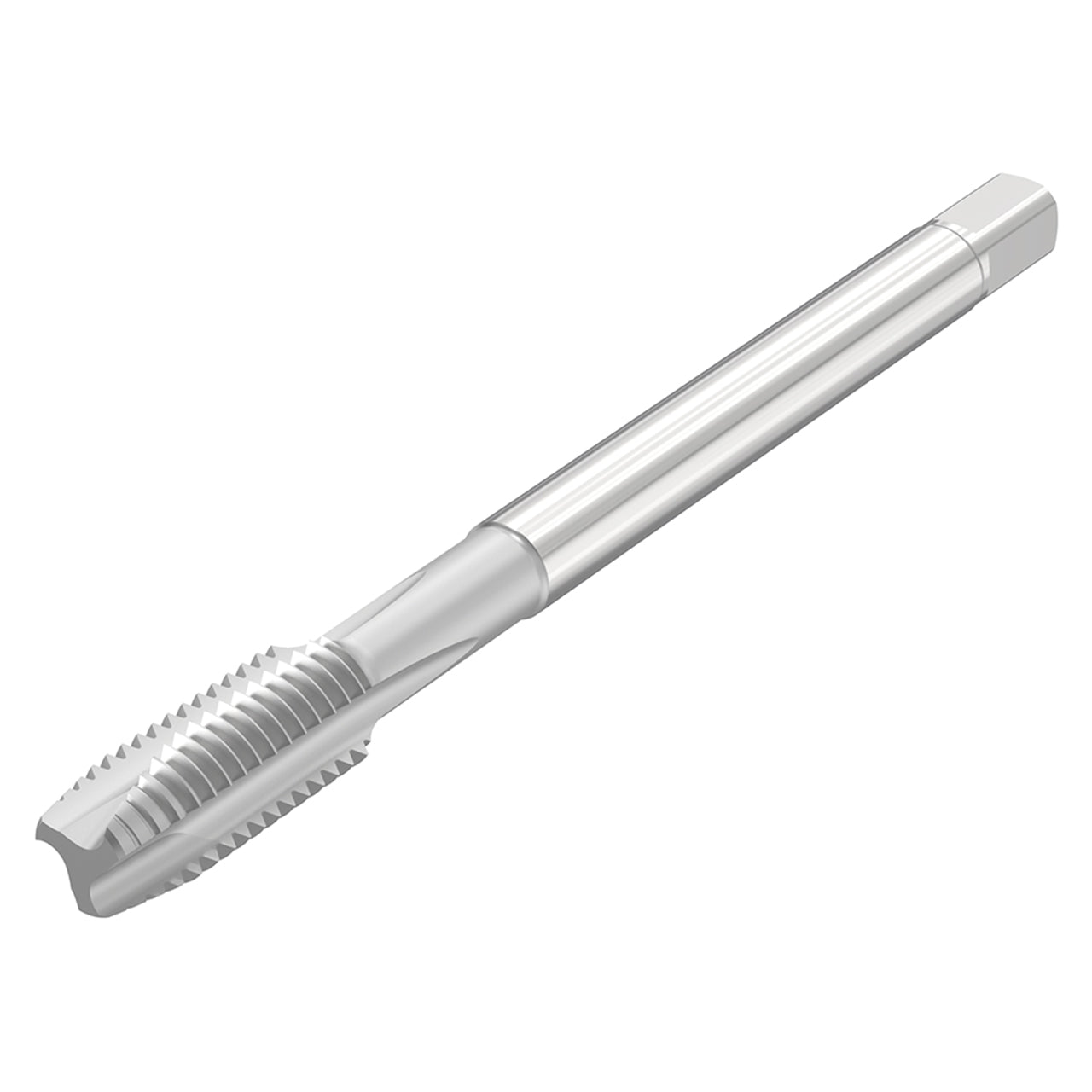

| Product Type | Spiral Point Tap |
