Product Specifications
| Manufacturer Part Number | 10309493 |
| Machine Side Connection Diameter (Decimal Inch) | 0.709" |
| Shank Diameter (Decimal Inch) | 0.709" |
| Functional length (Decimal Inch) | 5.209" |
| Usable Length (Decimal Inch) | 3.661" |
| Overall Length (Decimal Inch) | 5.512" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.965" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.972" |
| Tap Chamfer Length (Decimal Inch) | 0.303" |
| Thread Diameter (Decimal Inch) | 0.945" |
| Thread Diameter Size | MF 26 x 1.5 |
| Threading Chamfer Length (Decimal Inch) | 0.303" |
| Thread Length (Decimal Inch) | 1.063" |
| Minimum Thread Pitch (Decimal Inch) | 0.059" |
| Maximum Thread Pitch (Decimal Inch) | 0.059" |
| Threading Chamfer Type | B |
| Thread Form Type | MF |
| Connection Size Code | 18.00 x 14.50 |
| Machine Side Connection Size Code | 18.00 x 14.50 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN374 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

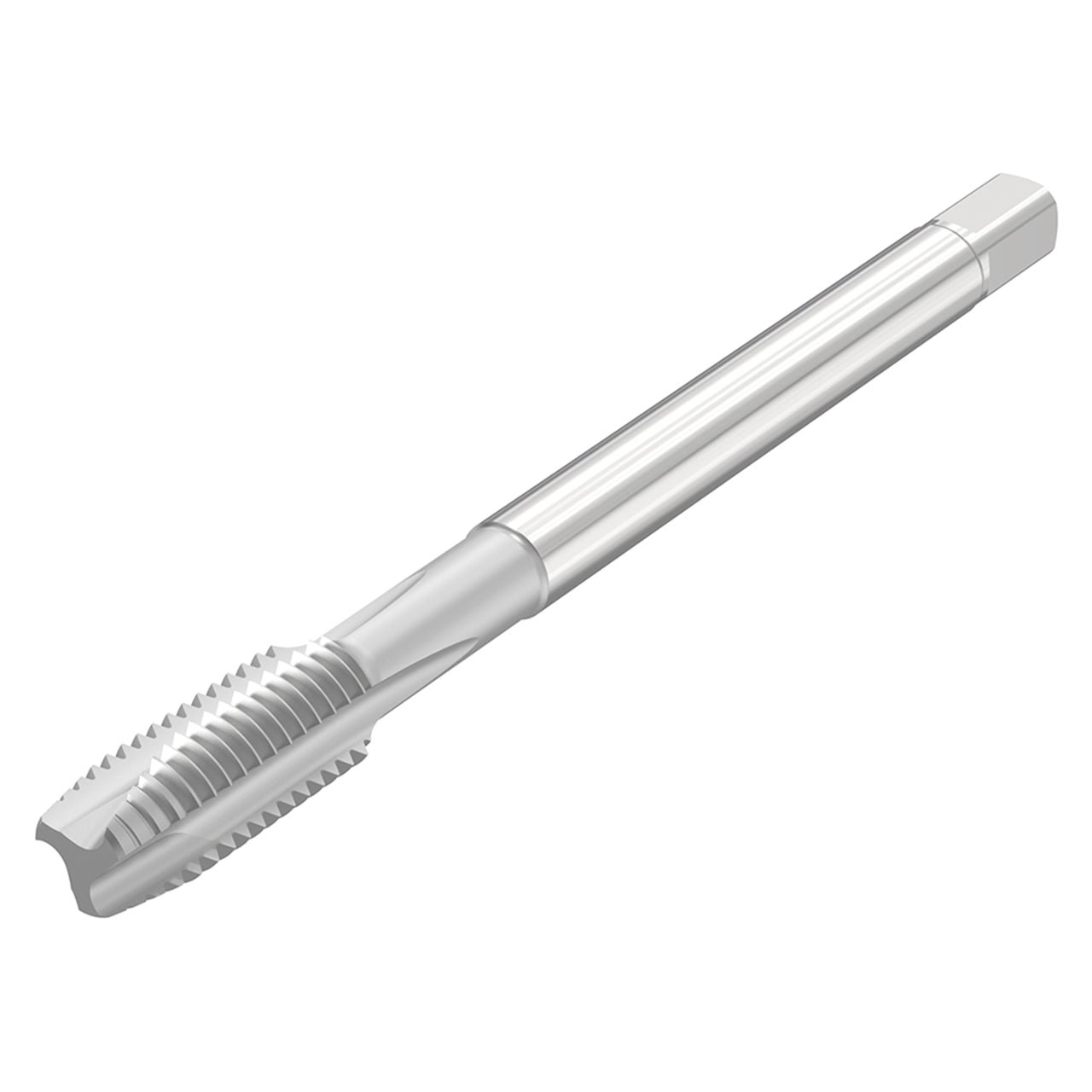

| Product Type | Spiral Point Tap |
