Product Specifications
| Manufacturer Part Number | 10309382 |
| Machine Side Connection Diameter (Decimal Inch) | 0.138" |
| Shank Diameter (Decimal Inch) | 0.138" |
| Functional length (Decimal Inch) | 2.102" |
| Usable Length (Decimal Inch) | 0.709" |
| Overall Length (Decimal Inch) | 2.252" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.093" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.094" |
| Tap Chamfer Length (Decimal Inch) | 0.109" |
| Thread Diameter (Decimal Inch) | 0.112" |
| Thread Diameter Size | UNC 4 - 40 |
| Threading Chamfer Length (Decimal Inch) | 0.109" |
| Thread Length (Decimal Inch) | 0.394" |
| Minimum Threads per Inch (TPI) | 40.00 TPI |
| Maximum Threads per Inch (TPI) | 40.00 TPI |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Connection Size Code | 3.50 x 2.70 |
| Machine Side Connection Size Code | 3.50 x 2.70 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E-PM |

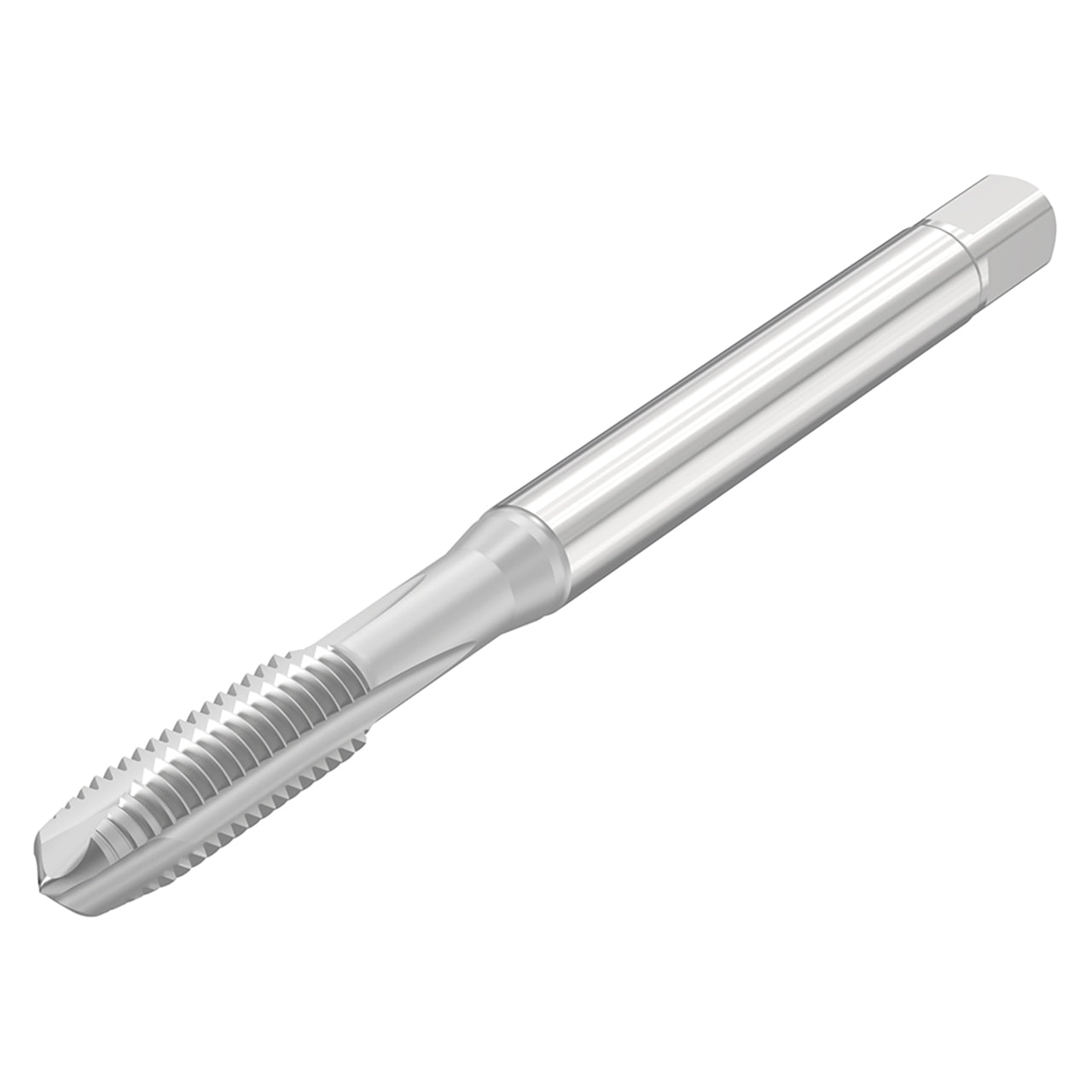

| Product Type | Spiral Point Tap |
